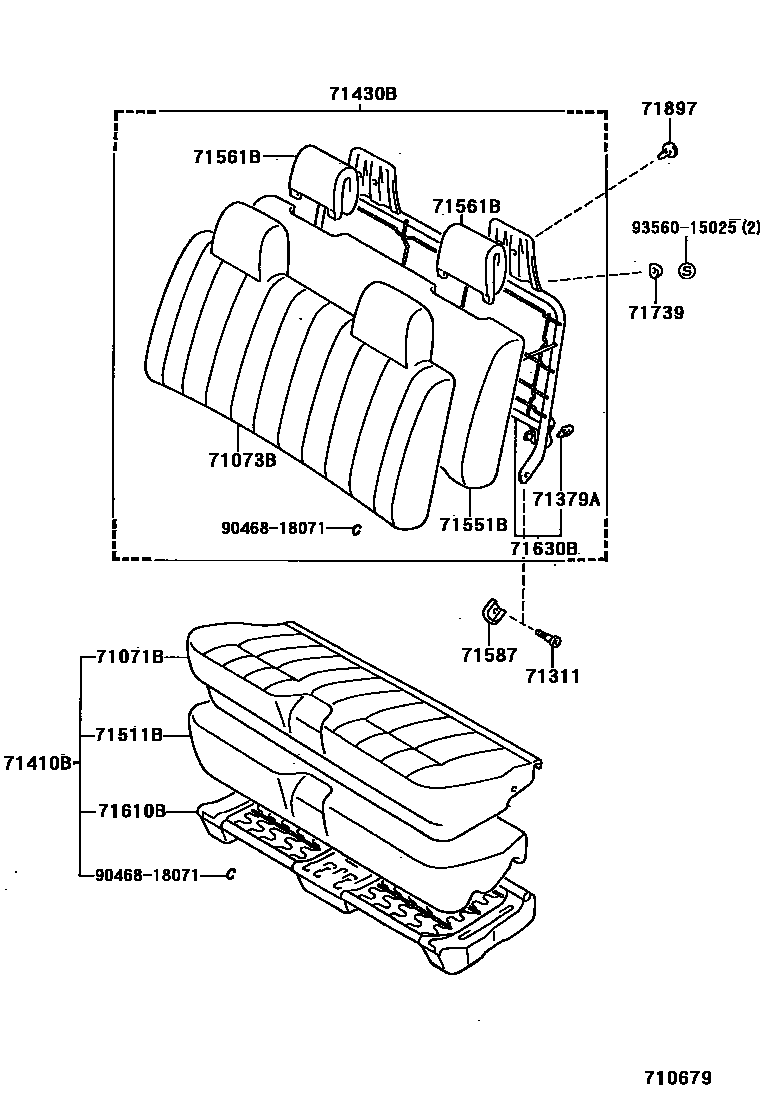

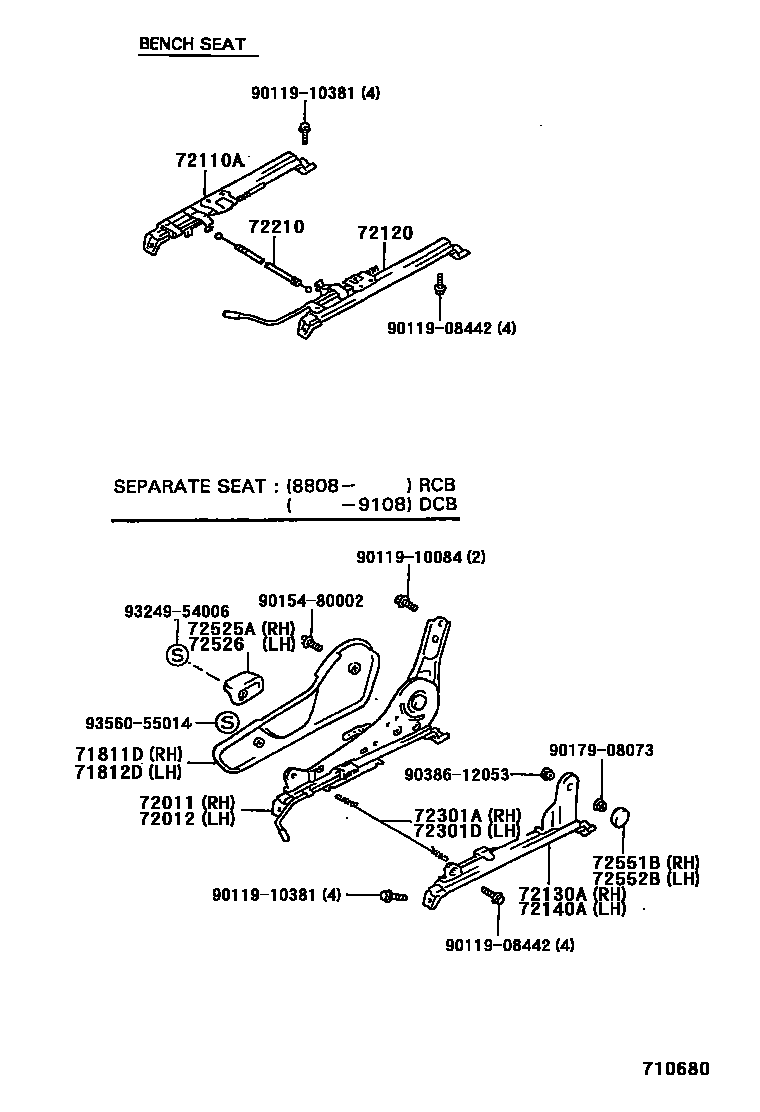

Toyota HILUX 座椅和座椅滑轨 — Figure 7151
Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71311 | Front seat hinge pin | 71311-89105 |
| 71379A | Front seat vertical handle stop | 71379-89101 |
| 71511B | Front seat cushion upholstery (for bench seats) | 71511-04010 · 71511-89149 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-04020 · 71511-89136 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-04020 · 71511-89136 |
| 71551B | Front seat back cushions (for bench seats) | 71551-04010 · 71551-89144 |
| 71551S | Front right seat back cushion (for split seats) | 71551-04020 · 71551-89141 |
| 71552S | Front left seat back cushion (for split seats) | 71551-04020 · 71551-89141 |
| 71561B | Padded front seat backrest | 71561-04010 · 71561-04030 · 71561-04060 · 71561-89114 |
| 71587 | Front seat back edge protective cover | 71587-89103 |
| 71610B | Front seat cushion spring assembly (for bench seats) | 71610-89145 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-89144 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-89144 |
| 71630B | Front seat back spring assembly (for bench seat) | 71630-35020 · 71630-35030 · 71630-89146 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-35070 · 71630-89163 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-35020 · 71640-89122 |
| 71739 | seat support cushion | 71739-35010 · 71739-89112 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-89108 |
| 72012 | Front left seat outer adjuster sub-assembly | 72020-89108 |
| 72110A | Front right seat outer slide rail assembly | 72110-35020 · 72110-89147 |
| 72120 | Front left seat outer slide rail assembly | 72120-35030 · 72120-89147 |
| 72130A | Front right seat inner slide rail assembly | 72130-35020 · 72130-89106 |
| 72140A | Front left seat inner slide rail assembly | 72140-35030 · 72140-89107 |
| 72210 | Seat slide rail control cable assembly | 72210-89108 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-89112 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-89112 |
| 72551B | Right seat backrest tilt hinge cover | 72551-12070 |
| 72552B | Left seat backrest tilt hinge cover | 72551-12070 |
