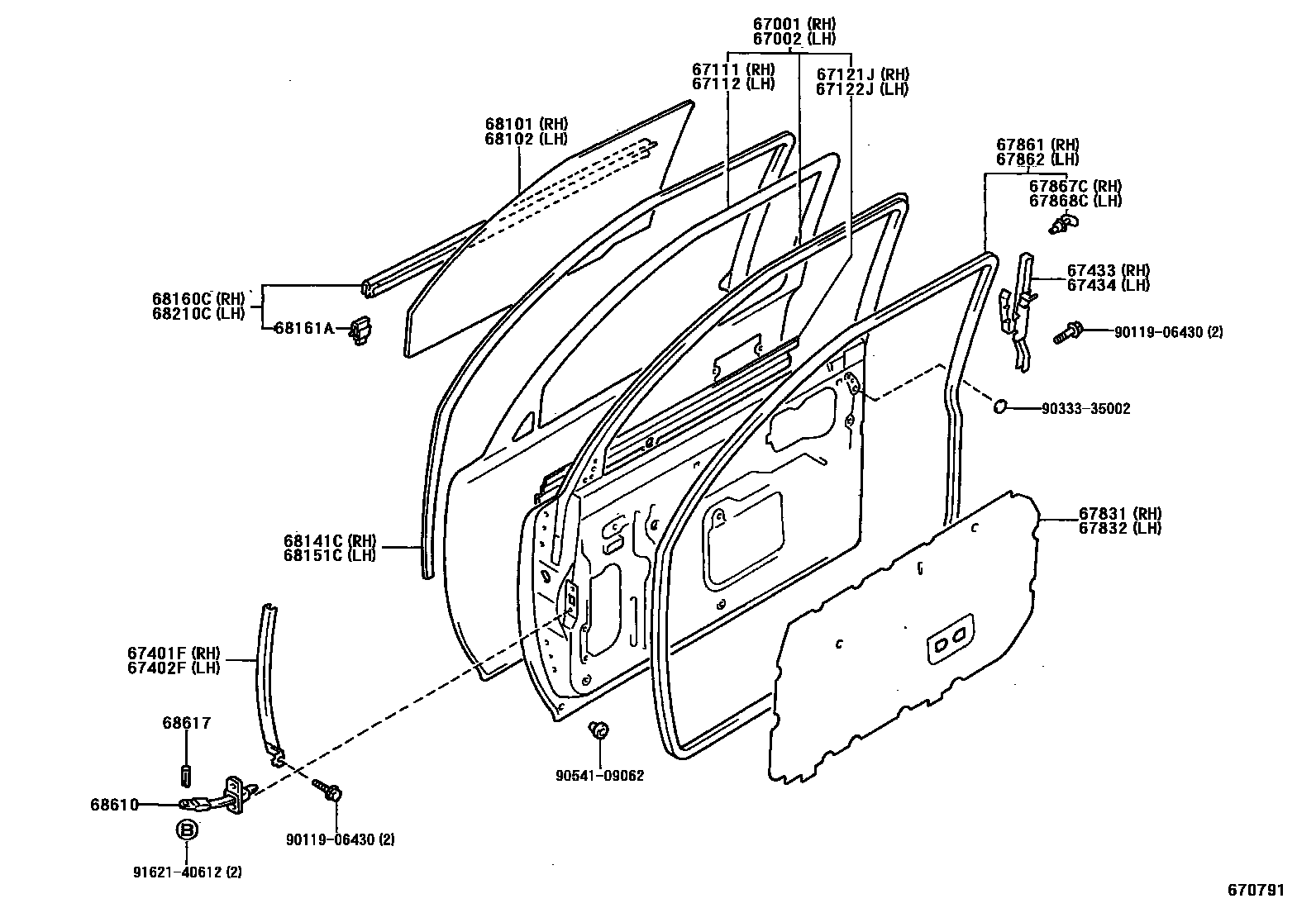

Toyota HILUX 前门板和前门玻璃 — Figure 6751
Toyota HILUX EPC diagram 6751, 前门板和前门玻璃, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-04030 · 67001-04040 · 67001-35010 · 67001-35020 |
| 67002 | Left front door panel sub-assembly | 67002-04030 · 67002-04040 · 67002-35010 · 67002-35020 |
| 67111 | Outer right front door panel | 67111-04010 · 67111-89138 |
| 67112 | Outer left front door panel | 67112-04010 · 67112-89140 |
| 67121J | Right front door outer panel reinforcement | 67121-04010 · 67121-89101 |
| 67122J | Left front door outer panel reinforcement | 67122-04010 · 67122-89101 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-35010 · 67401-35011 · 67401-89108 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-35010 · 67402-35011 · 67402-89108 |
| 67433 | Right front door window rear lower frame | 67403-35010 · 67403-35011 · 67403-89103 |
| 67434 | Left front door window rear lower frame | 67404-35010 · 67404-35011 · 67404-89103 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-04010 · 67491-89101 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-04010 · 67492-89101 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67499-89101 |
| 67601A | Fixings (for front door trim) | 67771-16080 · 67771-30090 · 67771-89101 · 67771-89109 · 67771-89111 · 67771-89113 |
| 67772E | Front door trim panel fixing cover | 67772-20021 |
| 67831 | Right front door access hole cover | 67831-04010 · 67831-89117 |
| 67832 | Left front door access hole cover | 67832-04010 · 67832-89105 |
| 67861 | Right front door seal | 67861-35010 · 67861-89108 |
| 67862 | Left front door seal | 67862-35010 · 67862-89107 |
| 67867C | Right front door seal strip fixing | 67868-22020 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 68101 | Right front door glass sub-assembly | 68111-04010 · 68111-04011 · 68111-89119 |
| 68102 | Left front door glass sub-assembly | 68112-04010 · 68112-04011 · 68112-89118 |
| 68141C | Right front door glass lift channel | 68141-89109 · 68141-89115 |
| 68151C | Left front door glass lift channel | 68151-89101 · 68151-89107 |
| 68160C | Right front door glass outer sealing strip assembly | 68160-89121 |
| 68161A | Catch (for front door glass outer sealing strip) | 68211-89111 · 68212-89101 |
| 68170 | Front door glass inner sealing strip assembly | 68170-89117 · 68171-89130 · 68172-89113 · 68220-89104 |
| 68170A | Catch (for front door glass inner sealing strip assembly) | 68211-10030 |
| 68210C | Left front door glass outer sealing strip assembly | 68210-89105 |
| 68610 | Front door opening limiter assembly | 68610-35020 · 68610-35030 · 68610-89103 |
| 68617 | Front door opening limiter pin | 68617-20011 |
