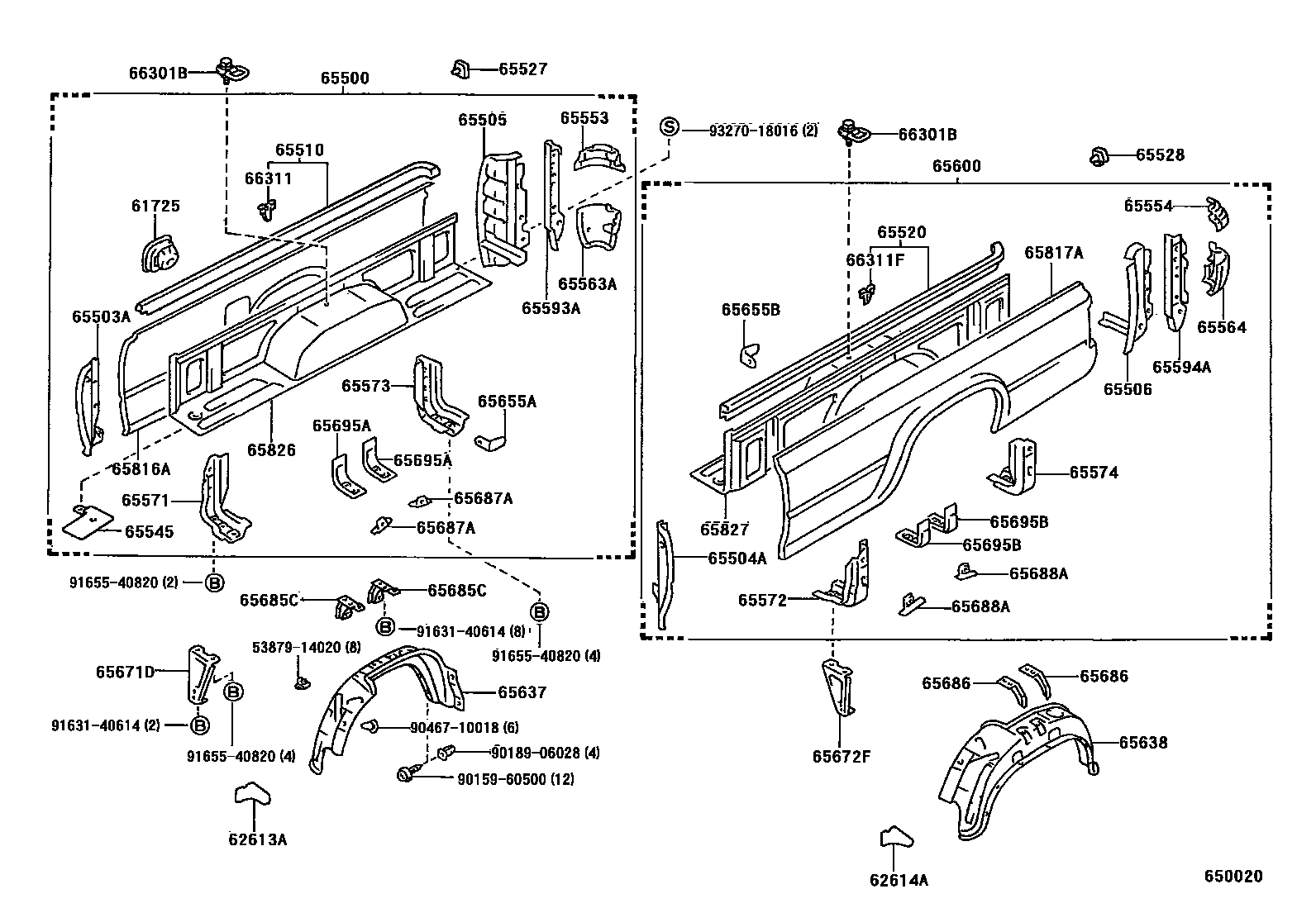

Toyota HILUX 后车身侧面板 — Figure 6554
Toyota HILUX EPC diagram 6554, 后车身侧面板, with 1 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61725 | Fuel inlet | 61709-89108 |
| 62613A | Right wheel cover | 62613-89107 |
| 62614A | Left side wheel cover | 62614-89107 |
| 65500 | Right rear body side panel assembly | 65500-04010 · 65500-04020 · 65500-04030 |
| 65503A | Right side panel front end column sub-assembly | 65551-04010 · 65551-89115 |
| 65504A | Left side panel front end column sub-assembly | 65552-04010 · 65552-89115 |
| 65505 | Right side panel rear end column sub-assembly | 65505-04020 · 65505-89110 |
| 65506 | Left side panel rear end column sub-assembly | 65506-04020 · 65506-89110 |
| 65510 | Longitudinal beam assembly on right side panel | 65510-89145 |
| 65520 | Longitudinal beam assembly on left side panel | 65520-89145 |
| 65527 | Protective piece on the right side of the upper longitudinal beam | 65527-89102 |
| 65528 | Protective piece on the left side of the upper longitudinal beam | 65528-89101 |
| 65545 | No. 1 side panel reinforcement | 65545-89103 |
| 65553 | Upper right side panel rear end pillar panel | 65553-89110 |
| 65554 | Upper left side panel rear end pillar panel | 65554-89110 |
| 65563A | Lower right side panel rear end pillar panel | 65563-89105 |
| 65564 | Left lower side panel rear end pillar panel | 65564-89104 |
| 65571 | Right front side panel frame | 65571-04010 |
| 65572 | Left front side panel frame | 65572-04010 |
| 65573 | Right rear side panel frame | 65573-04010 |
| 65574 | Left rear side panel frame | 65574-04010 |
| 65593A | Right side panel rear end column inner panel | 65593-89102 |
| 65594A | Left side panel rear end column inner panel | 65594-89102 |
| 65600 | Left rear body side panel assembly | 65600-04010 · 65600-04020 · 65600-04040 |
| 65637 | Right rear wheel house lining | 65637-89101 |
| 65638 | Left rear wheel house lining | 65638-89101 |
| 65655A | Front wheel housing seal bracket | 65655-89103 |
| 65655B | Front wheel housing seal bracket | 65655-89103 |
| 65671D | Right front side panel skirt bracket | 65671-04010 · 65671-89107 |
| 65672F | Left front side panel skirt bracket | 65672-04010 · 65672-89102 |
| 65685C | Right wheel housing bracket | 65685-89102 |
| 65686 | Left wheel housing bracket | 65686-89102 |
| 65687A | Right wheel housing bracket | 65687-89101 |
| 65688A | Left wheel housing bracket | 65688-89101 |
| 65695A | No. 2 wheel housing bracket | 65695-89102 |
| 65695B | No. 2 wheel housing bracket | 65695-89102 |
| 65816A | Right rear body side panel | 65816-04010 · 65816-89136 |
| 65817A | Left rear body side panel | 65817-04010 · 65817-89134 |
| 65826 | Right rear body inner panel | 65826-04010 · 65826-04020 · 65826-89111 |
| 65827 | Left rear body inner panel | 65827-04010 · 65827-04020 · 65827-89111 |
| 66301B | Rope hook sub-assembly | 66310-89101 |
| 66311 | rope hook | 66311-89109 |
| 66311F | No. 2 rope hook | 66311-89109 |
