Toyota HILUX 后车身地板和翼子板 — Figure 6552

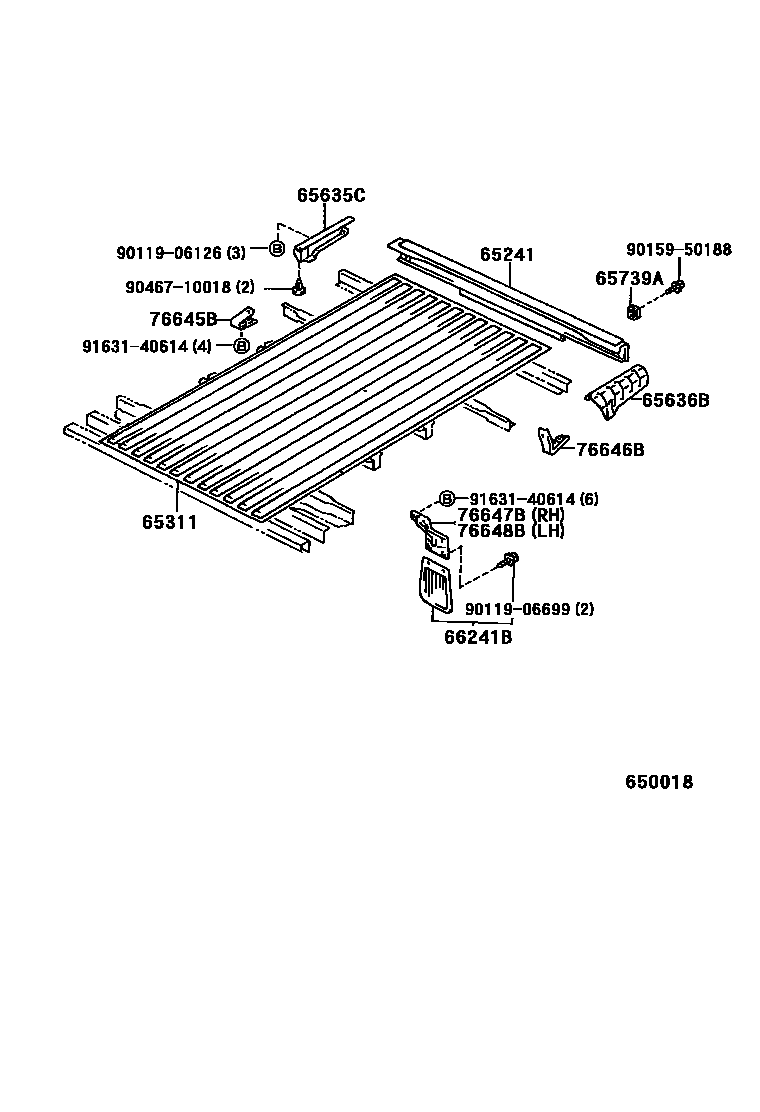

Toyota HILUX EPC diagram 6552, 后车身地板和翼子板, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65241 | rear cross member | 65240-04010 · 65240-04020 · 65240-89132 |
| 65311 | central floor | 65311-04010 · 65311-89129 |
| 65635C | Right rear wheel housing rear panel | 65635-89111 |
| 65636B | Left rear wheel housing rear panel | 65636-89110 |
| 65739A | Back door buffer block | 65739-89103 |
| 66241B | Rubber baffle | 66241-09010 · 66241-09020 · 66241-39016 · 66241-39025 |
| 76645B | Right rear body fender bracket | 76645-89101 |
| 76646B | Left rear body fender bracket | 76646-89101 |
| 76647B | Right rear body fender bracket | 76647-89105 |
| 76648B | Left rear body fender bracket | 76648-89105 |
