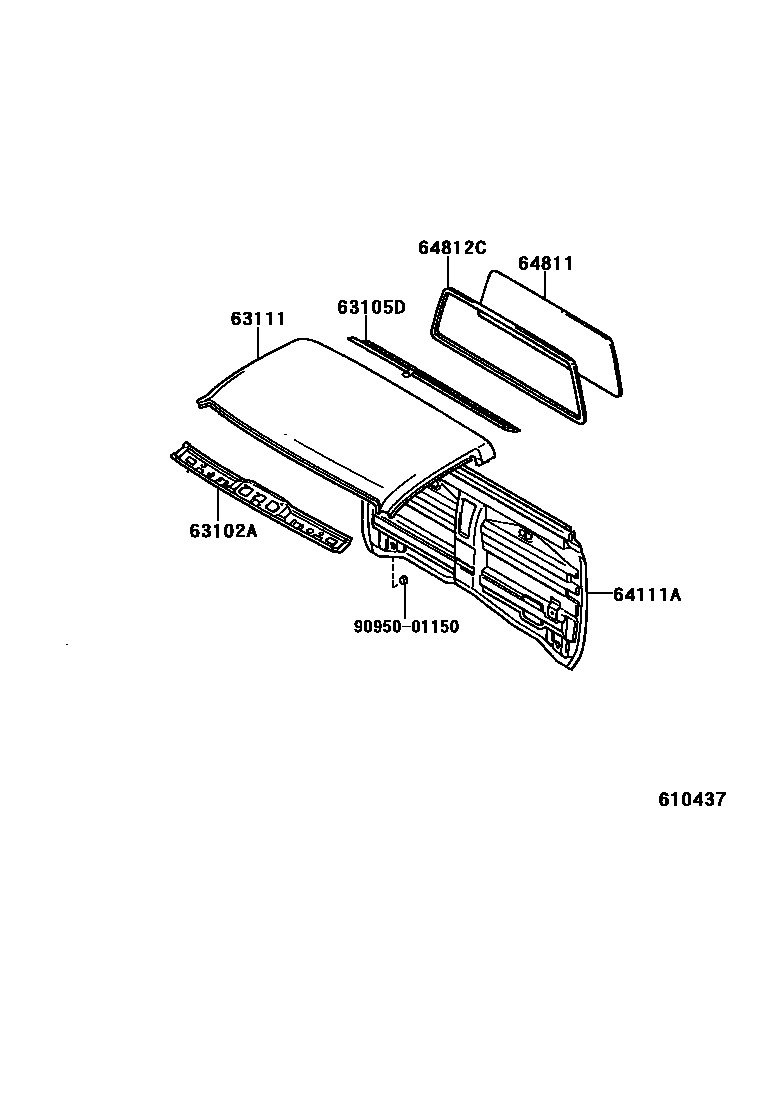

Toyota HILUX 天窗板和背板 — Figure 6153
Toyota HILUX EPC diagram 6153, 天窗板和背板, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-04010 · 63102-04020 |
| 63105D | Rear window upper frame sub-assembly | 63105-04010 · 63105-04020 |
| 63111 | roof panel | 63111-04010 · 63111-89118 |
| 64111A | backplane | 64101-04010 · 64101-04020 · 64101-89145 · 64101-89146 |
| 64811 | back window glass | 64811-04010 · 64811-89119 |
| 64812C | Back window glass seal strip | 64812-04010 · 64812-89108 |
