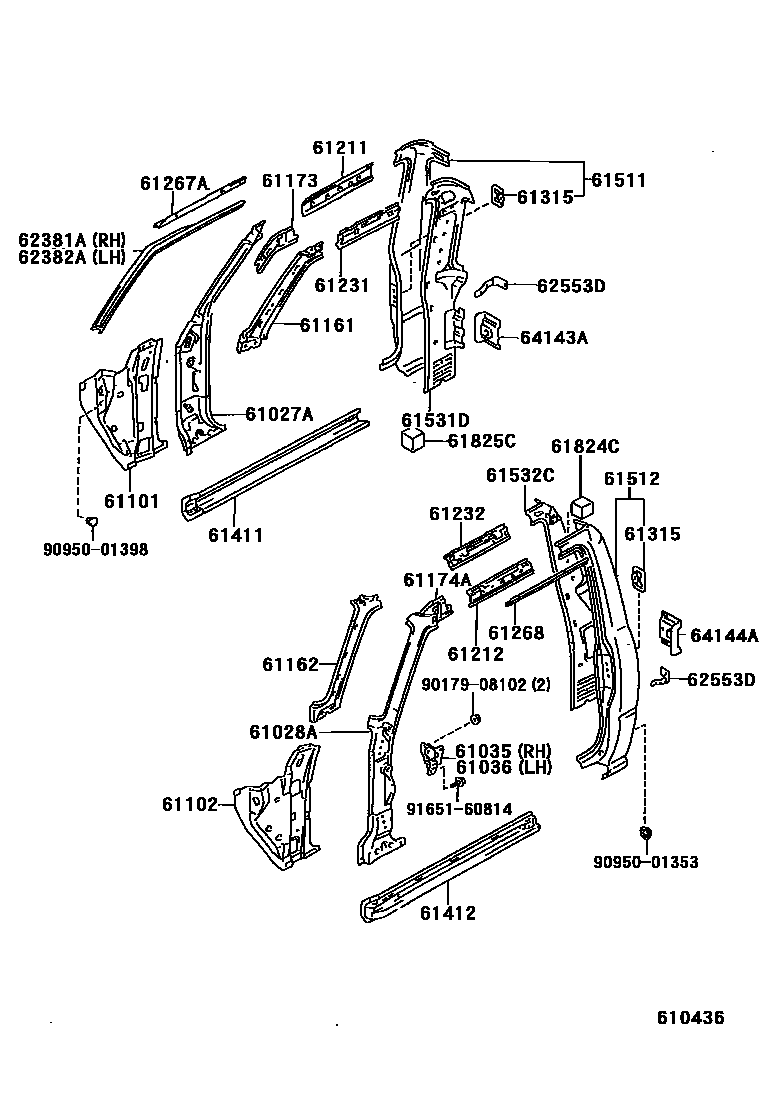

Toyota HILUX 侧梁 — Figure 6151
Toyota HILUX EPC diagram 6151, 侧梁, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61027A | Right body outer front pillar sub-assembly | 61027-04010 · 61027-89115 |
| 61028A | Left body outer front pillar sub-assembly | 61028-04010 · 61028-89115 |
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61035-89101 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-89101 |
| 61101 | Right front wall side panel sub-assembly | 61101-04010 · 61101-04020 · 61101-89136 |
| 61102 | Left front wall side panel sub-assembly | 61102-04010 · 61102-04020 · 61102-89132 |
| 61161 | Right upper body inner front pillar | 61161-04010 · 61161-89108 |
| 61162 | Left side inner front upper pillar | 61162-04010 · 61162-89108 |
| 61173 | Reinforcements on the front pillars inside the vehicle body | 61173-89103 |
| 61174A | Reinforcement member on the left inner front pillar of the body | 61174-89102 |
| 61211 | Roof right outer longitudinal beam | 61211-89107 |
| 61212 | Roof left outer longitudinal beam | 61212-89107 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-04010 · 61231-89113 |
| 61232 | Roof left inner longitudinal beam | 61232-04010 · 61232-89113 |
| 61267A | Roof right rear gutter | 61267-89101 |
| 61268 | Roof left rear gutter | 61268-89101 |
| 61315 | Door latch plate fixing parts | 61315-22020 |
| 61411 | Right door outer sill panel | 61411-04010 · 61411-04020 |
| 61412 | Left door outer sill panel | 61412-04010 · 61412-04020 |
| 61511 | Right side locking post | 61501-04010 · 61501-89122 |
| 61512 | Left side locking post | 61502-04010 · 61502-89127 |
| 61531D | Right inner rear pillar panel of cab | 61531-04010 · 61531-04020 · 61531-89124 · 61531-89127 |
| 61532C | Cab left inner rear pillar panel | 61532-04010 · 61532-04020 · 61532-89124 · 61532-89127 |
| 61824C | No. 1 silencer panel gasket | 61824-89104 |
| 61825C | No. 2 silencer panel gasket | 62151-20170 |
| 62381A | Roof right side rail seal strip | 62381-89101 |
| 62382A | Roof left side rail seal strip | 62382-89101 |
| 62553D | No. 3 column pad | 62553-89101 |
| 64143A | Right rear corner panel reinforcement | 64143-89106 |
| 64144A | Left rear quarter panel reinforcement | 64144-89104 |
