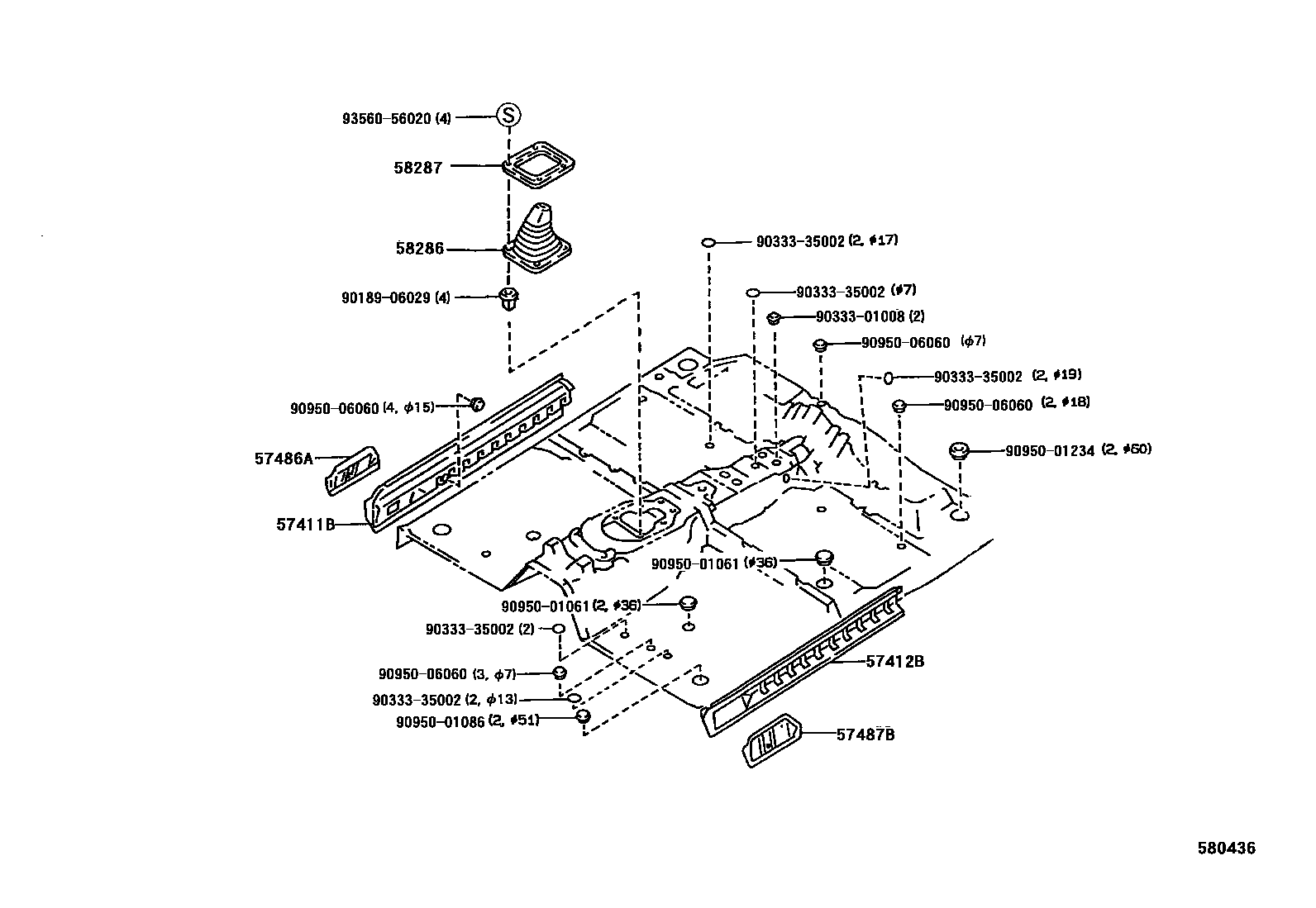

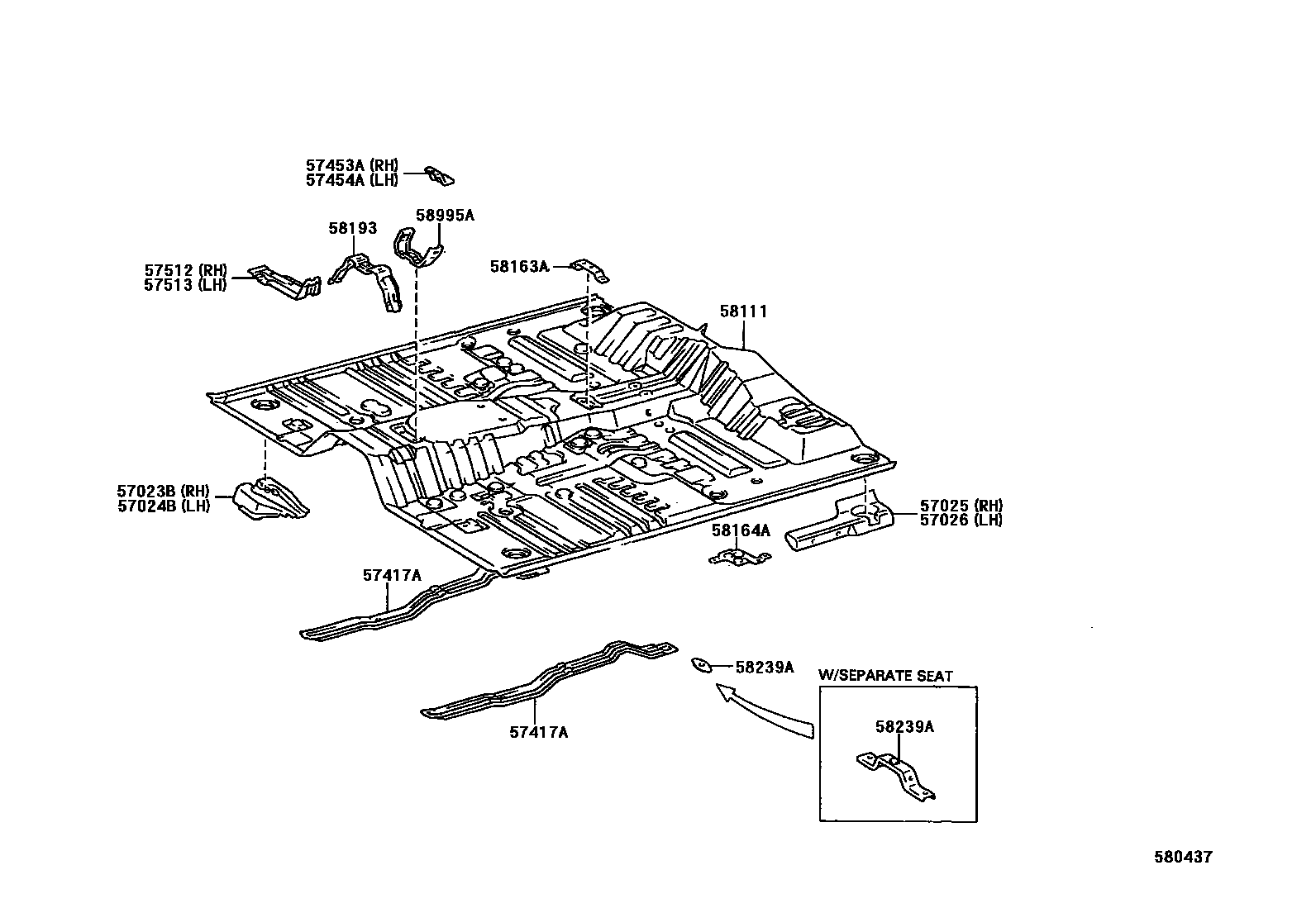

Toyota HILUX 前地板和前地板梁 — Figure 5851
Toyota HILUX EPC diagram 5851, 前地板和前地板梁, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57023B | Right body No. 2 mounting bracket sub-assembly | 57023-89101 |
| 57024B | Left body No. 2 mounting bracket sub-assembly | 57024-89101 |
| 57025 | Right body No. 3 mounting bracket sub-assembly | 57025-89101 |
| 57026 | Left body No. 3 mounting bracket sub-assembly | 57026-89101 |
| 57411B | Floor right inner longitudinal beam | 57411-04010 · 57411-89104 |
| 57412B | Floor left inner longitudinal beam | 57412-04010 · 57412-89106 |
| 57417A | Front underfloor reinforcement | 57417-89103 |
| 57453A | Front floor right cross member reinforcement | 57453-89101 |
| 57454A | Front floor left cross member reinforcement | 57454-89101 |
| 57486A | Floor No. 1 right longitudinal beam reinforcement | 57486-89104 |
| 57487B | Floor No. 1 left longitudinal beam reinforcement | 57487-89102 |
| 57512 | Front floor right reinforcement | 57512-89105 |
| 57513 | Front floor left reinforcement | 57513-89104 |
| 58111 | front floor pan | 58111-04010 · 58111-04020 |
| 58163A | Armrest Box No. 1 Installation Fixing Bracket | 58163-89101 |
| 58164A | Armrest box installation fixing bracket | 58164-89101 |
| 58193 | Dashboard bracket mounting bracket | 58193-35010 · 58193-89102 |
| 58239A | Seat belt anchor nut piece | 58239-34010 · 58239-89111 · 58239-89112 |
| 58286 | No. 1 shift lever dust cover | 58280-04010 · 58280-89111 · 58286-04010 · 58286-89124 |
| 58287 | Shift lever dust cover retaining ring | 58287-89113 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-89104 |
