Toyota HILUX 前翼子板挡泥板和前围板 — Figure 5355

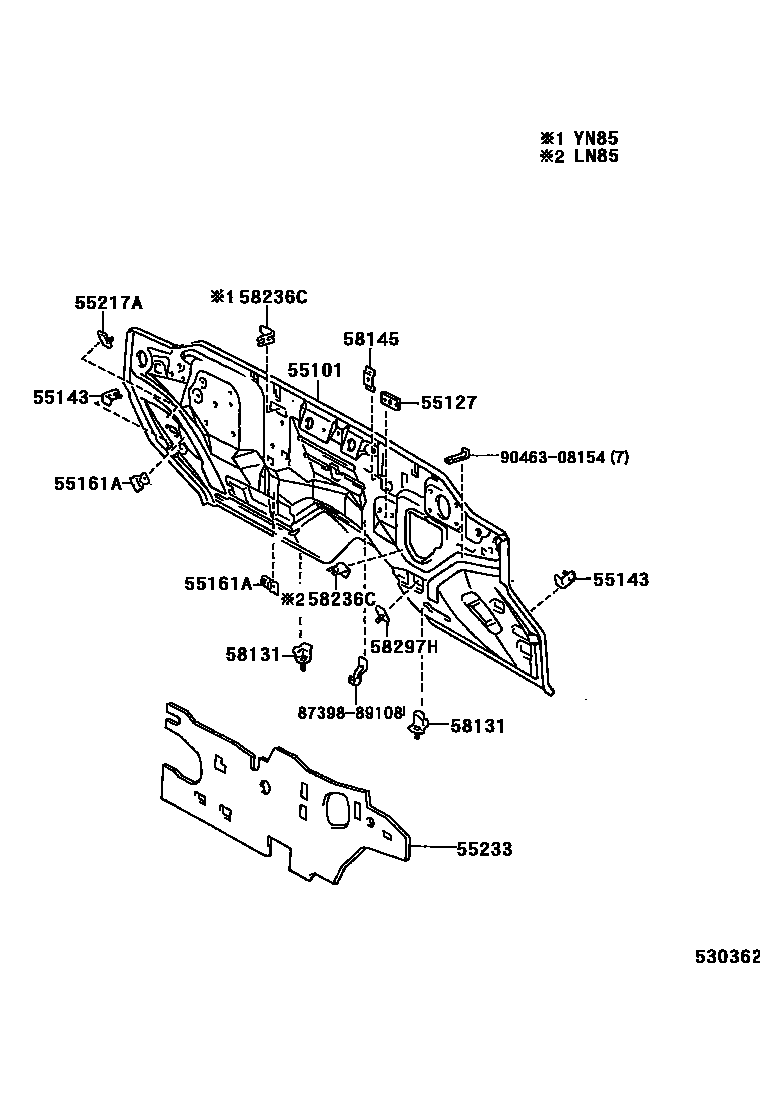

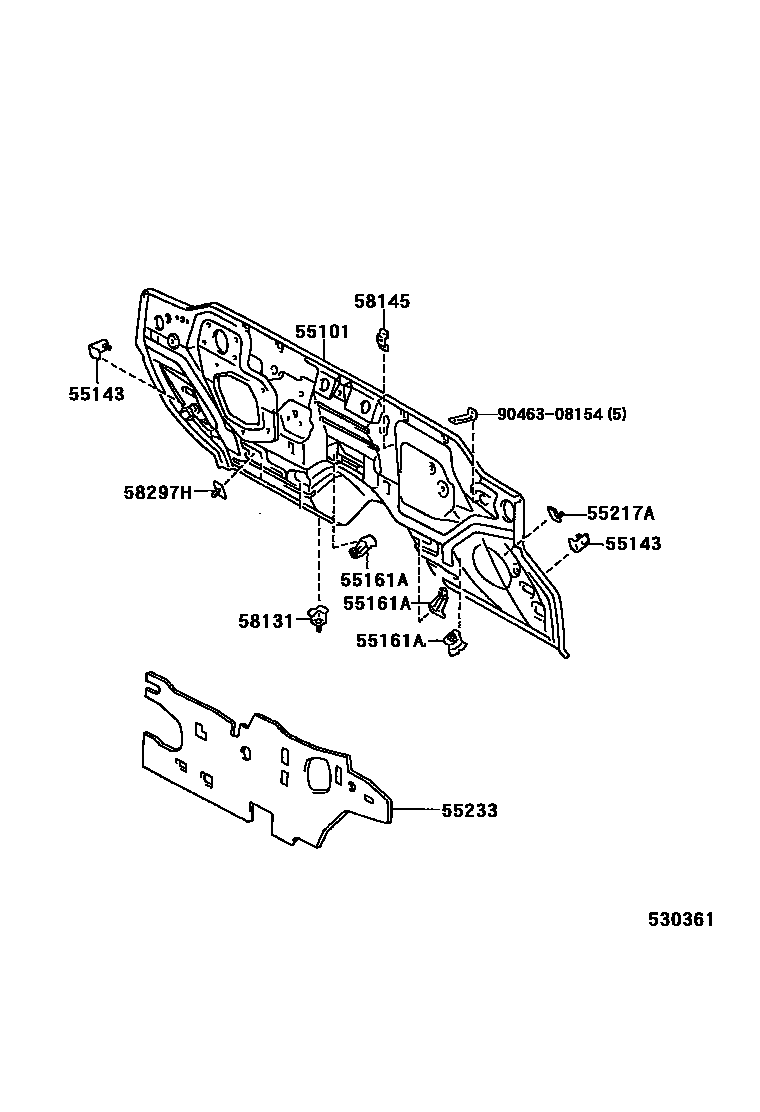

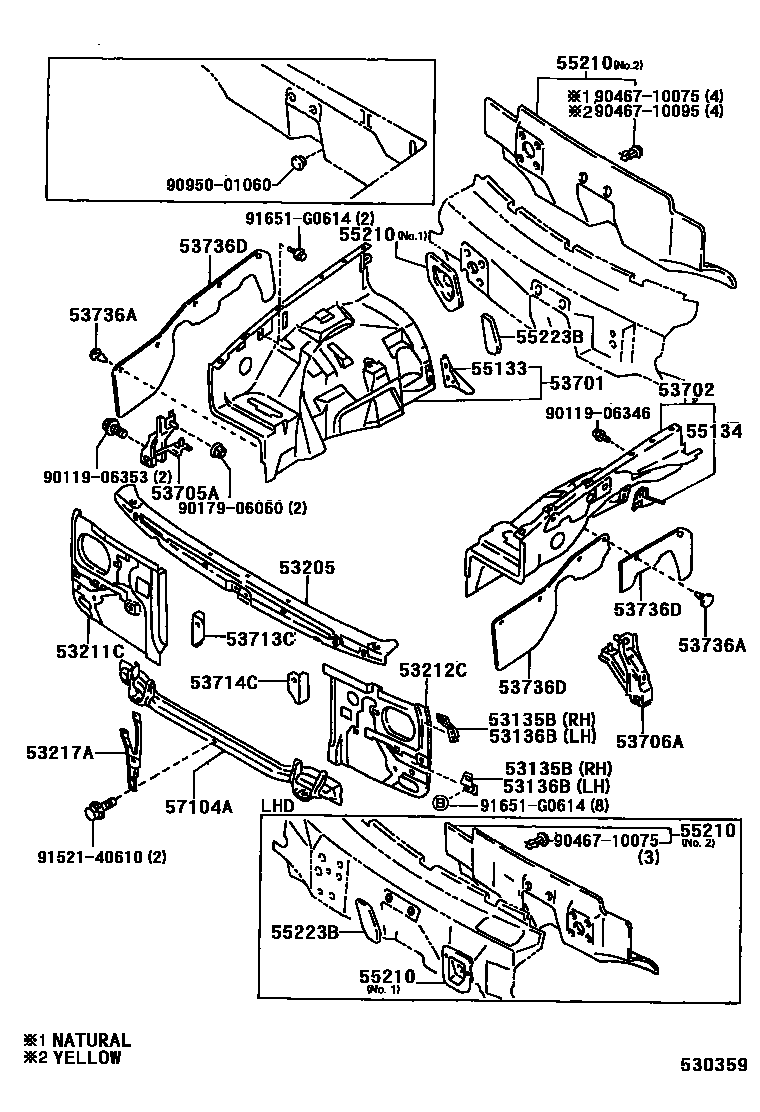

Toyota HILUX EPC diagram 5355, 前翼子板挡泥板和前围板, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53135B | Right headlight lampshade bracket | 53135-89101 · 53135-89102 |
| 53136B | Left headlight lampshade bracket | 53136-89105 · 53136-89106 |
| 53205 | Radiator upper bracket sub-assembly | 53216-04010 · 53216-89110 |
| 53211C | Radiator right side support | 53211-04010 · 53211-04020 · 53211-89123 |
| 53212C | Radiator left support | 53212-04010 · 53212-04020 · 53212-89120 |
| 53217A | engine cover lock bracket | 53217-35010 |
| 53701 | Right front fender fender sub-assembly | 53701-04020 · 53701-04030 · 53701-04070 · 53701-35090 · 53701-35100 · 53701-35110 · 53701-35120 · 53701-35130 · 53701-89214 · 53701-89217 · 53701-89219 |
| 53702 | Left front fender fender sub-assembly | 53702-04020 · 53702-04030 · 53702-04110 · 53702-04111 · 53702-04120 · 53702-04121 · 53702-35100 · 53702-35130 · 53702-35140 · 53702-35200 · 53702-35340 · 53702-89242 · 53702-89247 |
| 53705A | Right fender fender bracket sub-assembly | 53705-89102 |
| 53706A | Left fender fender bracket sub-assembly | 53706-89102 |
| 53713C | Right front fender fender front extension | 53713-89104 |
| 53714C | Left front fender fender front extension | 53714-89104 |
| 53736A | Clip (for front fender fender seal) | 90467-10107 |
| 53736D | fender fender seal | 53736-89118 · 53736-89119 · 53736-89120 |
| 55101 | Front apron sub-assembly | 55111-89236 · 55111-89242 |
| 55127 | Parking brake reinforcement | 55127-89102 |
| 55133 | Right front fender fender lower fixing plate | 55133-89103 |
| 55134 | Left front fender fender lower fixing plate | 55134-89103 |
| 55143 | Front wall side trim panel No. 1 mounting bracket | 55143-89102 · 55143-89103 |
| 55161A | Heater mounting bracket on the right side | 55161-89106 · 55161-89107 · 55161-89108 · 55161-89109 |
| 55210 | Front wall insulation pad assembly | 55210-35110 · 55210-35111 · 55210-35130 · 55210-35131 · 55210-89149 · 55210-89151 · 55210-89153 · 55210-89156 · 55210-89158 |
| 55217A | Front apron muffler fixings | 55217-89103 |
| 55223B | No. 1 insulation pad for front wall panel | 55225-89103 · 55225-89104 |
| 55233 | cowl heat insulation sheet | 55233-89110 · 55233-89111 · 55233-89112 |
| 57104A | Front cross member sub-assembly | 57104-04010 · 57104-89109 |
| 58131 | Front floor insulation pad bracket No. 1 | 58131-89116 · 58131-89117 |
| 58145 | Front floor insulation pad bracket fixing No. 1 | 58145-89101 |
| 58236C | clutch tube bracket | 58236-89104 · 58236-89107 · 58236-89108 |
| 58297H | Floor clip fasteners | 58297-89107 |
