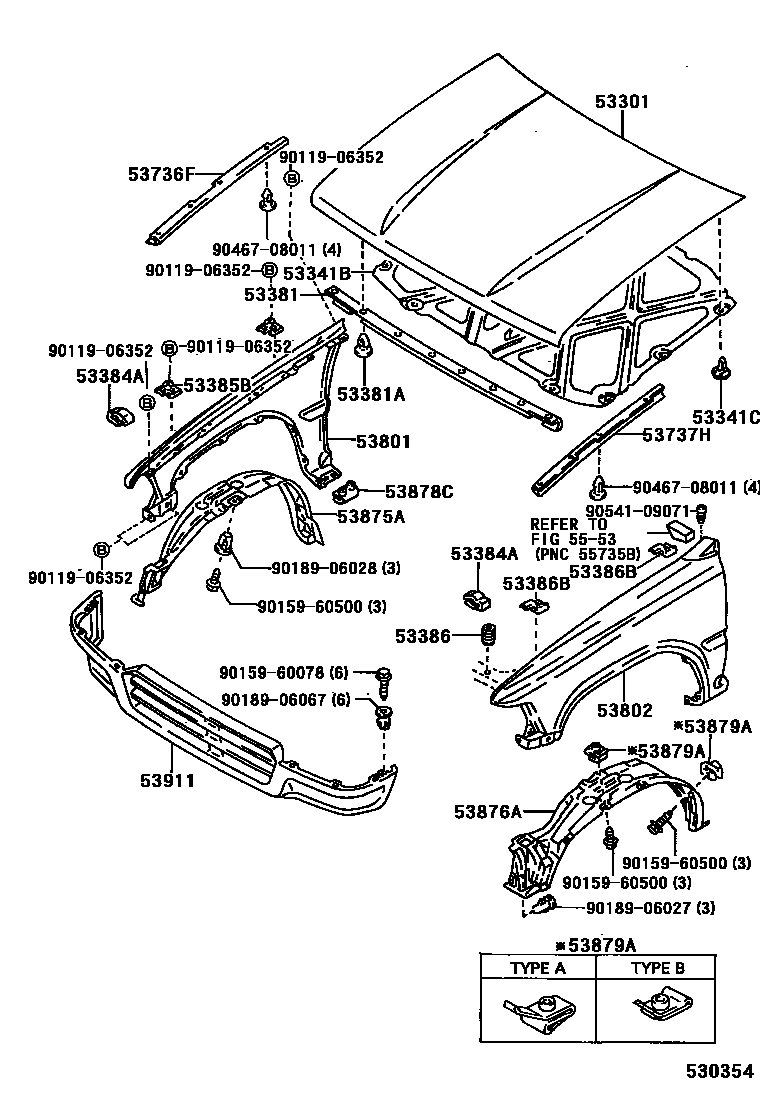

Toyota HILUX 发动机盖和前翼子板 — Figure 5353
Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-04010 · 53301-35020 |
| 53341B | engine cover gasket | 53341-04010 · 53341-89106 · 53341-89107 |
| 53381 | Engine cover to radiator bracket seal | 53381-89104 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53384A | fender to engine cover buffer block | 53384-04010 · 53384-89102 |
| 53385B | Right side bracket (fender to engine cover bumper) | 53386-20020 |
| 53386 | Engine cover rear buffer block | 53382-89102 |
| 53386B | Left side bracket (fender to engine cover bumper) | 53385-20020 |
| 53736F | Right front fender fender seal | 53736-89117 |
| 53737H | Left front fender fender seal | 53737-89108 |
| 53801 | Right front fender sub-assembly | 53811-04010 · 53811-04020 · 53811-04030 · 53811-89204 |
| 53802 | Left front fender sub-assembly | 53812-04020 · 53812-04030 · 53812-89198 |
| 53875A | Right front fender lining | 53875-89105 |
| 53876A | Left front fender lining | 53876-89105 |
| 53878C | front fender spacer | 53878-89102 |
| 53879A | Front fender lining fixing parts | 53879-14020 · 53879-22010 |
| 53911 | front fender | 53911-04010 · 53911-04020 · 53911-04030 |
