Toyota HILUX 前保险杠及附件 — Figure 5252

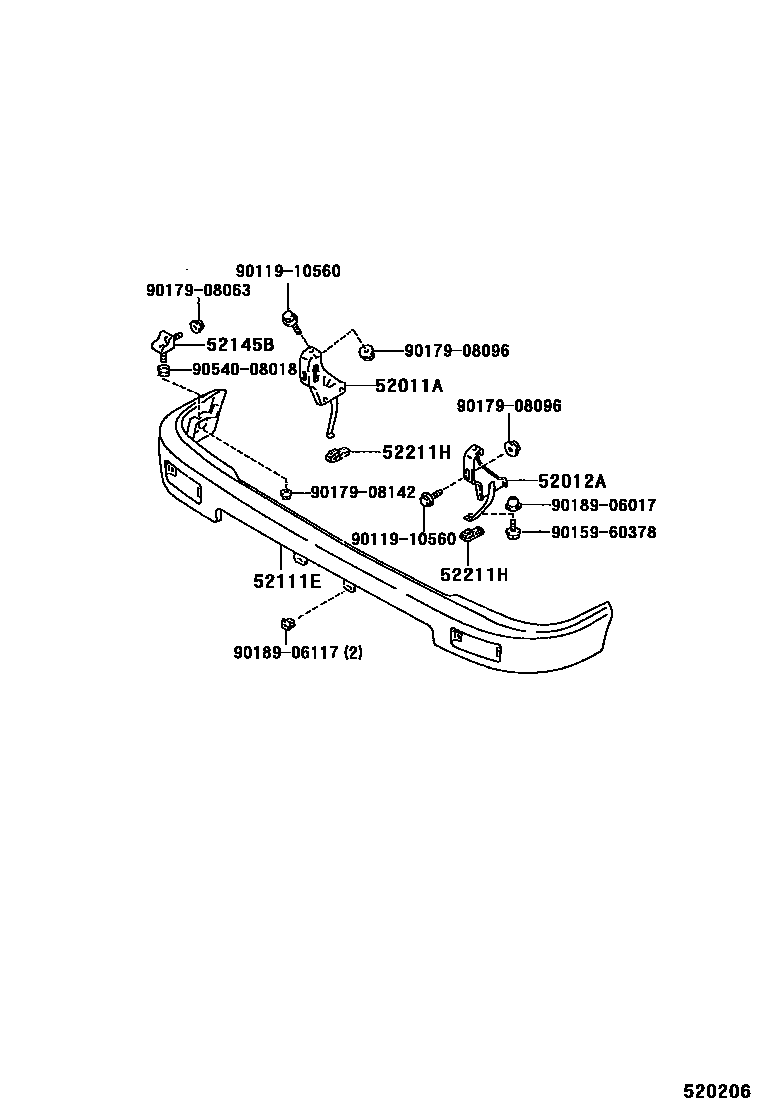

Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-04010 · 52011-04030 · 52011-89115 |
| 52012A | Front bumper left arm sub-assembly | 52012-04010 · 52012-04030 · 52012-89115 |
| 52111E | front bumper stay | 52101-04010 · 52101-04020 · 52101-04030 · 52101-04040 |
| 52145B | Front bumper side mounting bracket | 52145-89102 |
| 52211H | Bumper pad (for front bumper arm) | 52211-89101 |
