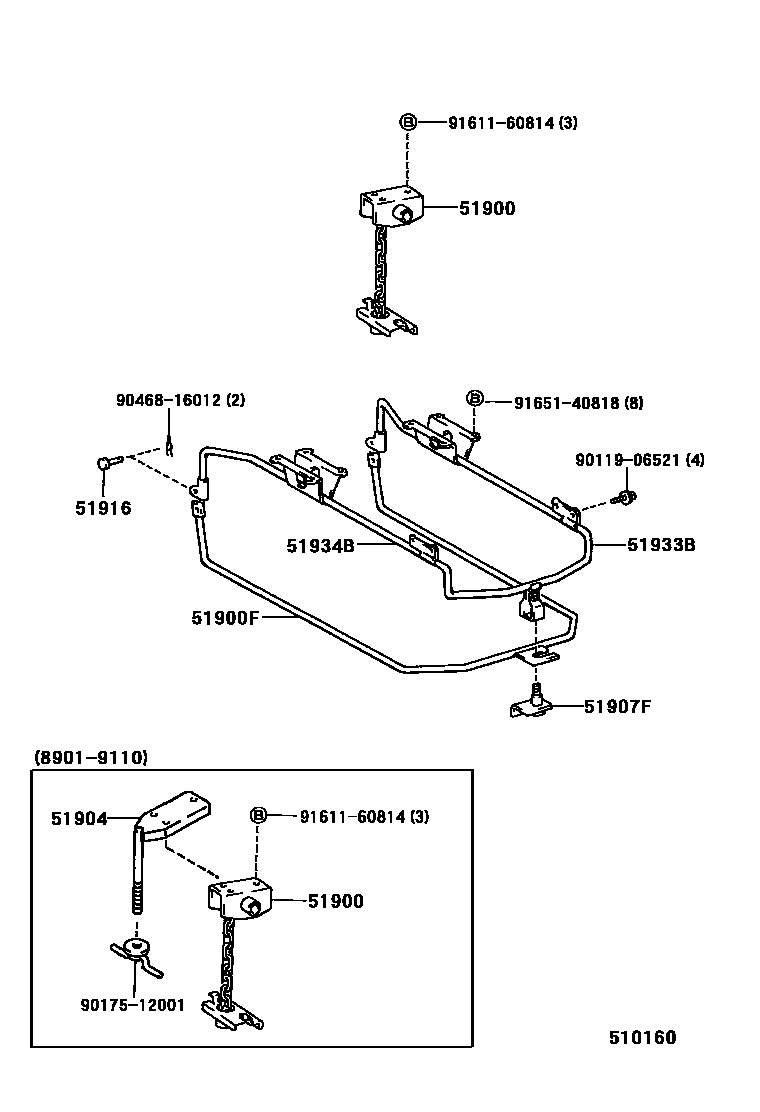

Toyota HILUX Spare tire rack — Figure 5153
Toyota HILUX EPC diagram 5153, Spare tire rack, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900 | Spare tire rack assembly | 51900-35101 |
| 51900F | Spare tire rack assembly | 51900-35270 |
| 51904 | Spare tire rack bracket sub-assembly | 51904-35040 |
| 51907F | Spare tire rack block sub-assembly | 51907-35020 |
| 51916 | Spare tire rack pin | 51916-35020 |
| 51933B | Spare tire rack right block | 51933-35140 |
| 51934B | Spare tire rack left block | 51934-35070 |
