Toyota HILUX 车架 — Figure 5151

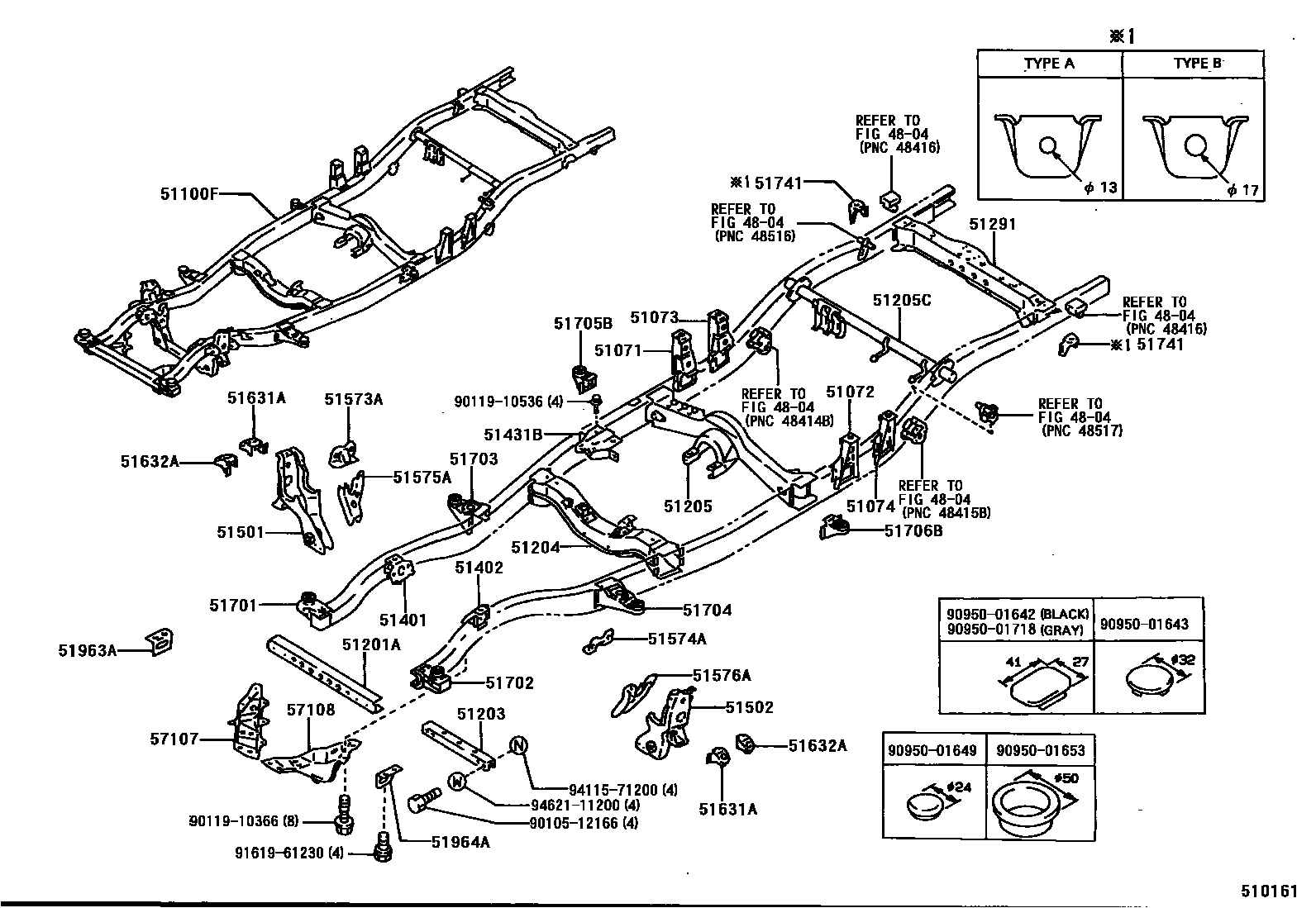

Toyota HILUX EPC diagram 5151, 车架, with 1 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51071 | Right rear body No. 1 mounting bracket sub-assembly | 51071-35050 |
| 51072 | Left rear body No. 1 mounting bracket sub-assembly | 51071-35050 |
| 51073 | Right rear body No. 2 mounting bracket sub-assembly | 51073-35020 |
| 51074 | Left rear body No. 2 mounting bracket sub-assembly | 51074-35020 |
| 51100F | Frame sub-assembly | 51001-3D780 · 51001-3D790 · 51001-3D800 · 51001-3D810 |
| 51201A | Front frame cross member sub-assembly | 51201-35170 |
| 51203 | Frame No. 2 cross member sub-assembly | 51202-35220 |
| 51204 | Frame No. 3 beam sub-assembly | 51203-35240 · 51203-35250 |
| 51205 | Frame No. 4 beam sub-assembly | 51204-35360 |
| 51205C | Frame No. 5 beam sub-assembly | 51205-35140 |
| 51291 | Frame rear cross member | 51291-35100 |
| 51401 | Engine right front mounting bracket sub-assembly | 51401-35170 · 51401-35260 |
| 51402 | Engine left front mounting bracket sub-assembly | 51402-35170 · 51402-35260 |
| 51431B | Engine rear mounting bracket | 51431-35060 |
| 51501 | Right suspension arm bracket sub-assembly | 51501-35060 |
| 51502 | Left suspension arm bracket sub-assembly | 51502-35060 |
| 51573A | No. 1 right suspension arm bracket reinforcement | 51573-35010 |
| 51574A | No. 1 suspension arm bracket left reinforcement | 51573-35010 |
| 51575A | No. 2 suspension arm bracket right side reinforcement | 51575-35040 · 51575-35050 |
| 51576A | No. 2 suspension arm bracket left reinforcement | 51575-35040 · 51576-35020 |
| 51631A | Front suspension No. 1 rebound limiter | 51631-35050 |
| 51632A | Front suspension No. 2 rebound limiter | 51632-35040 |
| 51701 | Cab suspension No. 1 right side bracket sub-assembly | 51701-35110 |
| 51702 | Cab suspension No. 1 left side bracket sub-assembly | 51702-35090 |
| 51703 | Cab suspension No. 2 right side bracket sub-assembly | 51703-35060 |
| 51704 | Cab suspension No. 2 left side bracket sub-assembly | 51704-35080 |
| 51705B | Cab suspension No. 3 right side bracket sub-assembly | 51705-35090 |
| 51706B | Cab suspension No. 3 left bracket sub-assembly | 51705-35090 |
| 51741 | Rear body No. 1 mounting bracket | 51741-35050 |
| 51963A | Right front transport hook | 51963-35070 |
| 51964A | Left front transport hook | 51964-35050 |
| 57107 | Right support rod bracket sub-assembly | 57107-35050 |
| 57108 | Left support rod bracket sub-assembly | 57108-35050 |
