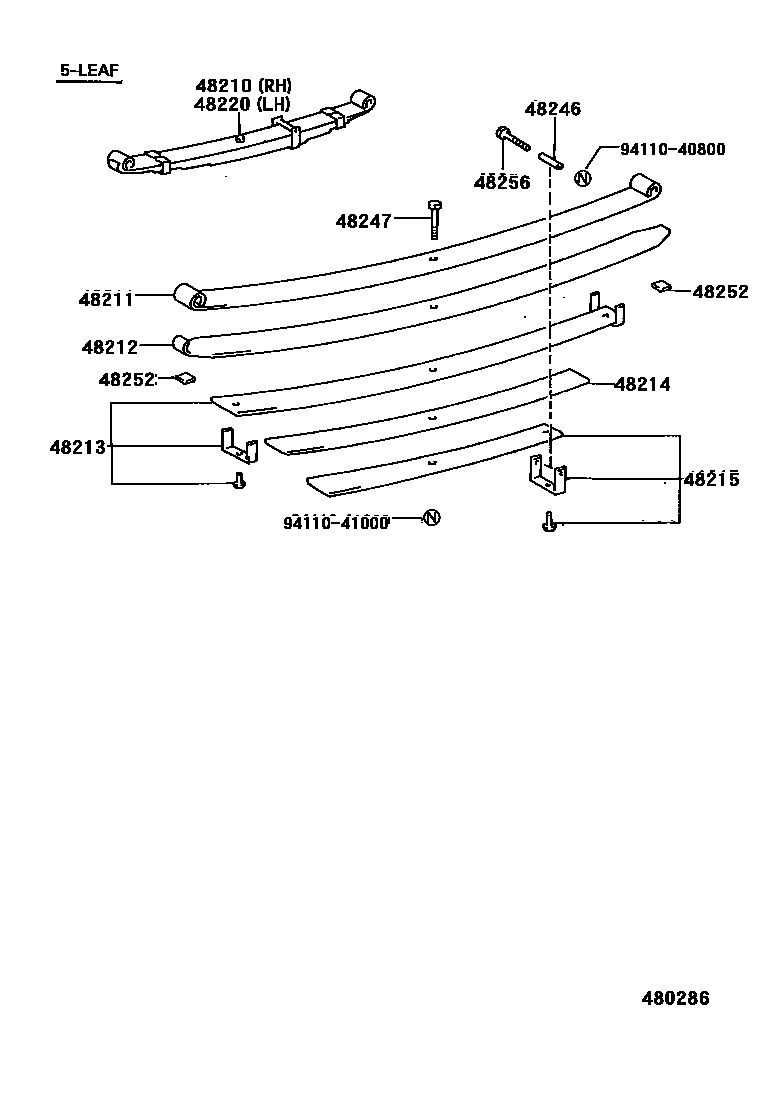

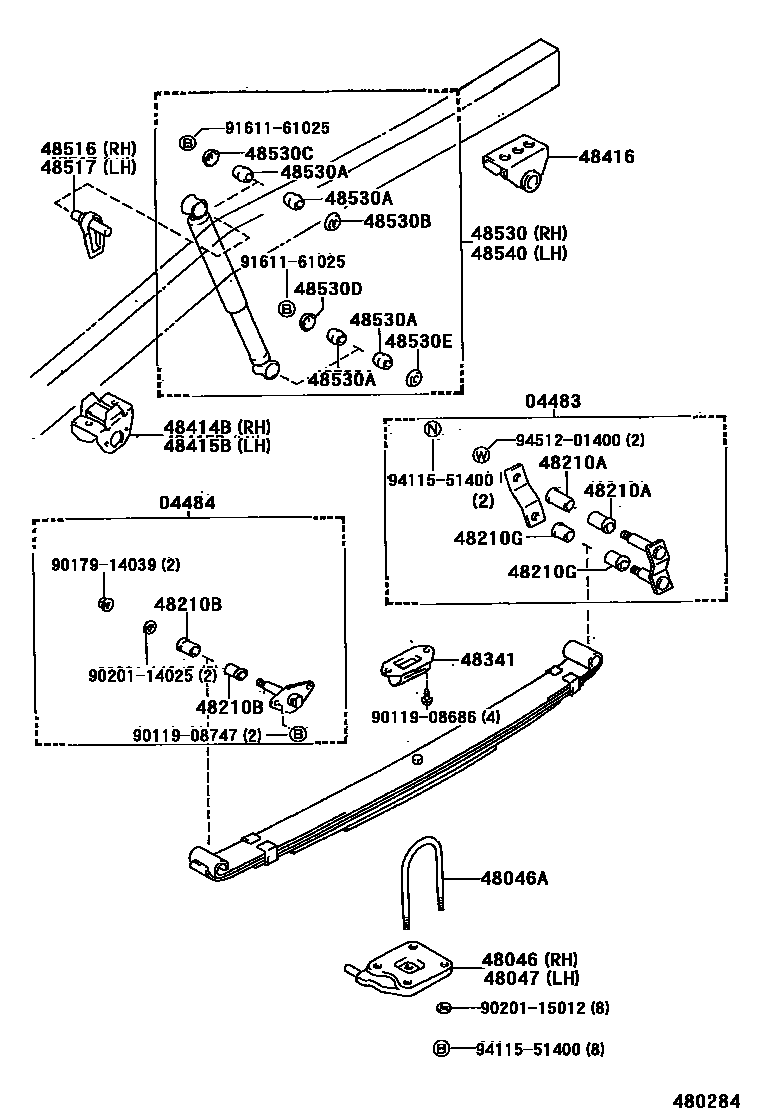

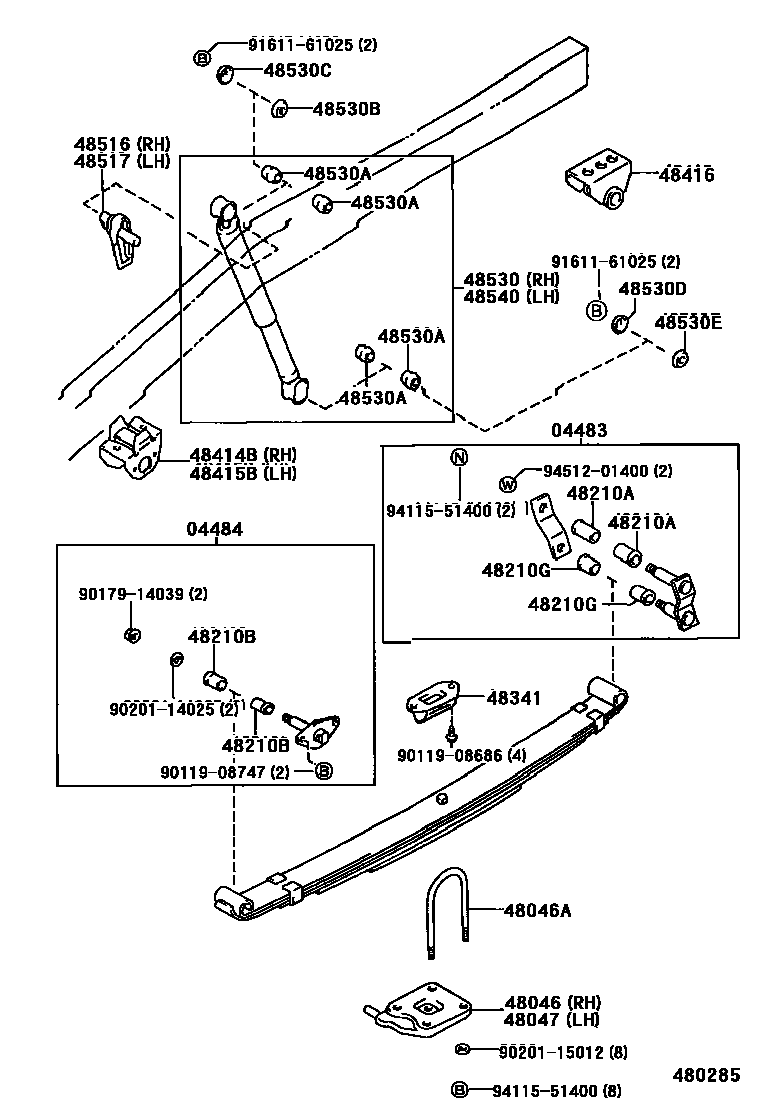

Toyota HILUX Rear Spring & Shock Absorber — Figure 4804
Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04483 | Rear spring lifting lug assembly | 04483-35051 · 04483-35080 |
| 04484 | Rear spring pin assembly | 04482-35030 · 04484-35060 |
| 48046 | Right spring U-bolt base sub-assembly | 48046-35140 |
| 48046A | U-bolt (for rear spring) | 90117-14040 |
| 48047 | Left spring U-bolt base sub-assembly | 48046-35140 |
| 48210 | Right rear spring assembly | 48210-35640 · 48210-35850 |
| 48210A | Upper bushing (for rear spring lug) | 90385-18013 |
| 48210B | Bushing (for rear spring pin) | 90385-18046 |
| 48210G | Lower bushing (for rear spring lug) | 90385-18046 |
| 48211 | No. 1 rear leaf spring | 48211-35640 · 48211-35850 |
| 48212 | No. 2 rear leaf spring | 48212-35640 · 48212-35850 |
| 48213 | No. 3 rear leaf spring | 48202-35640 · 48202-35850 |
| 48214 | No. 4 rear leaf spring | 48214-35640 · 48214-35850 |
| 48215 | No. 5 rear leaf spring | 48203-35640 · 48203-35850 |
| 48220 | Left rear spring assembly | 48210-35640 · 48210-35850 |
| 48246 | rear spring clamp bolt housing | 48246-35160 |
| 48247 | rear spring center bolt | 48247-35070 · 48247-35630 |
| 48252 | rear spring muffler | 48252-35630 |
| 48256 | Hex bolt (for rear spring clamp assembly) | 48256-35160 |
| 48341 | Rear spring buffer block | 48341-04010 · 48341-35060 |
| 48414B | Right No. 3 spring bracket | 48414-35160 |
| 48415B | No. 3 spring bracket on the left | 48414-35160 |
| 48416 | No. 4 spring bracket | 48416-35070 · 48416-35080 |
| 48516 | Right rear shock absorber upper bracket | 48505-35030 |
| 48517 | Left rear shock absorber upper bracket | 48506-35030 |
| 48530 | Right rear shock absorber assembly | 48531-39925 · 48531-80117 · 48531-80522 |
| 48530A | Bushing (for rear shock absorber) | 90385-16007 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03004 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-03012 |
| 48530D | Rear shock absorber No. 3 cushion washer | 90948-03012 |
| 48530E | Rear shock absorber No. 4 cushion washer | 90948-03004 |
| 48540 | Left rear shock absorber assembly | 48531-39925 · 48531-80117 · 48531-80522 |
