Toyota HILUX 前桥控制臂和转向节 — Figure 4802

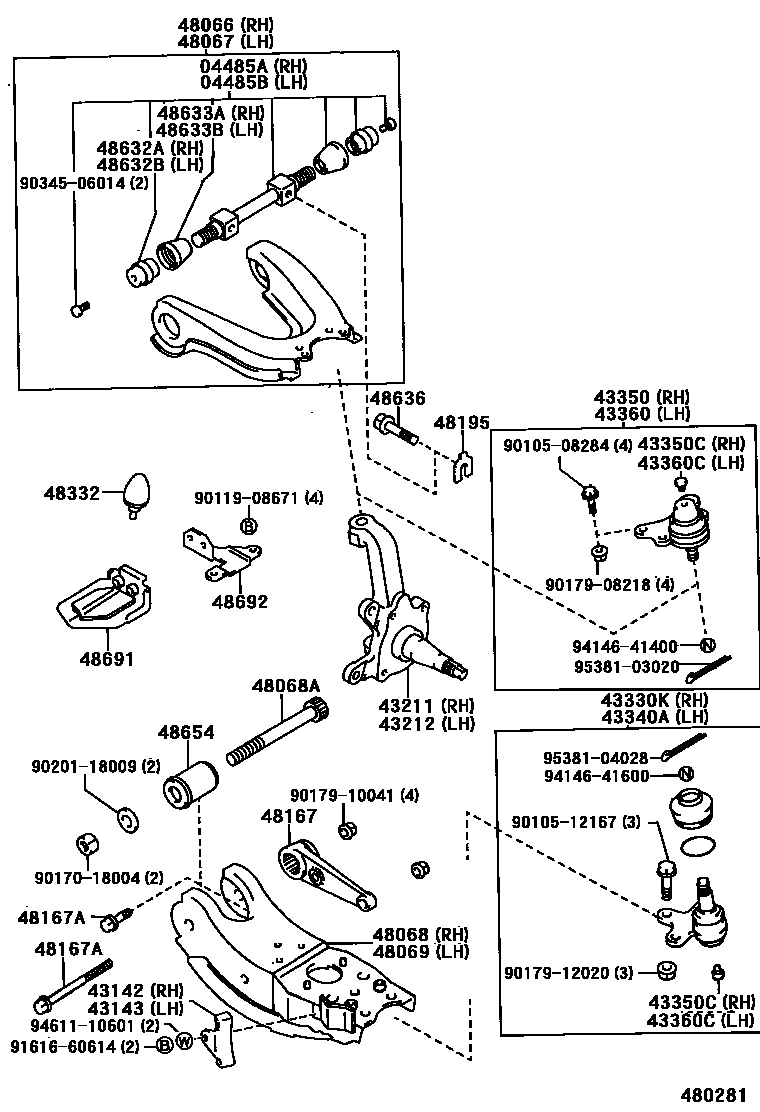

Toyota HILUX EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04485A | Right front suspension upper arm shaft assembly | 04485-35020 |
| 04485B | Left front suspension upper arm shaft assembly | 04485-35020 |
| 43142 | Right steering knuckle block support | 43142-35010 |
| 43143 | Left steering knuckle block support | 43142-35010 |
| 43211 | Right steering knuckle | 43211-35130 |
| 43212 | left steering knuckle | 43212-35090 |
| 43330K | Right front lower ball joint assembly | 43330-39245 · 43330-39295 |
| 43340A | Left front lower ball joint assembly | 43330-39295 · 43340-39225 |
| 43350 | Right front upper ball joint assembly | 43350-39075 |
| 43350C | Screw plug (for right front upper ball joint) | 90345-06014 |
| 43360 | Left front upper ball joint assembly | 43350-39075 |
| 43360C | Screw plug (for left front upper ball joint) | 90345-06014 |
| 48066 | Right front suspension upper arm sub-assembly | 48066-35050 |
| 48067 | Left front suspension upper arm sub-assembly | 48066-35050 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48605-35120 · 48605-35121 |
| 48068A | Bolt (for front suspension lower arm) | 90114-18003 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48606-35120 · 48606-35121 |
| 48167 | torque arm | 48167-35020 · 48167-35040 |
| 48167A | Bolt (for securing torque arm) | 90105-10087 · 90105-10088 |
| 48195 | Camber angle adjustment washer | 90565-12004 · 90565-12008 · 90565-12009 |
| 48332 | No. 2 front spring buffer block | 48332-04010 · 48332-35020 |
| 48632A | Right front suspension upper arm bushing | 48632-30012 |
| 48632B | Left front suspension upper arm bushing | 48632-30012 |
| 48633A | Right front suspension upper arm pivot dust seal | 48633-35010 |
| 48633B | Left front suspension upper arm pivot dust seal | 48633-35010 |
| 48636 | Upper arm fixing bolt | 90105-12080 |
| 48654 | lower arm bushing | 48654-35010 |
| 48691 | Upper arm bushing insulation pad | 48691-35011 |
| 48692 | Upper arm bushing insulation pad bracket | 48692-35011 |
