Toyota HILUX 制动配管和卡箍 — Figure 4708

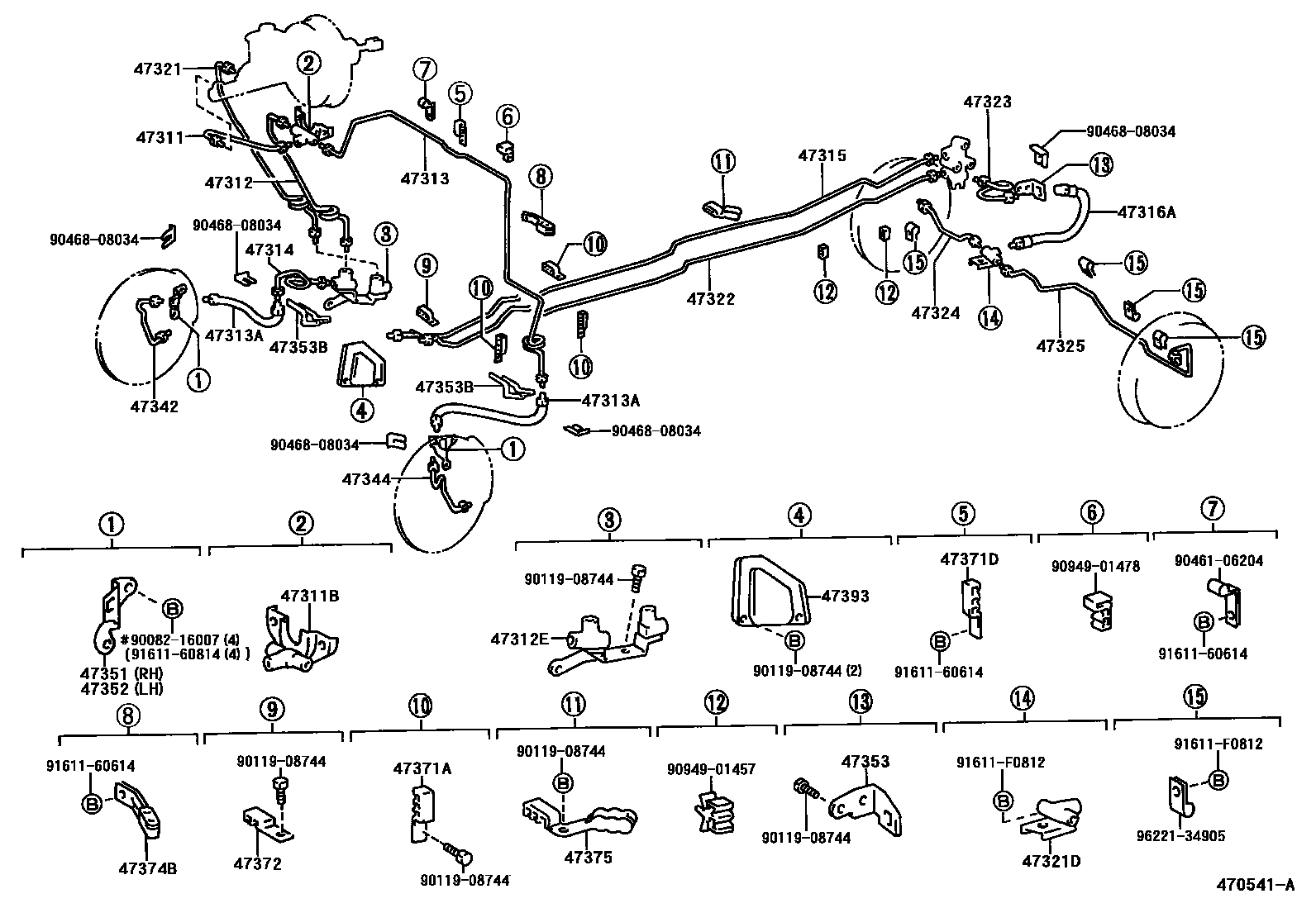

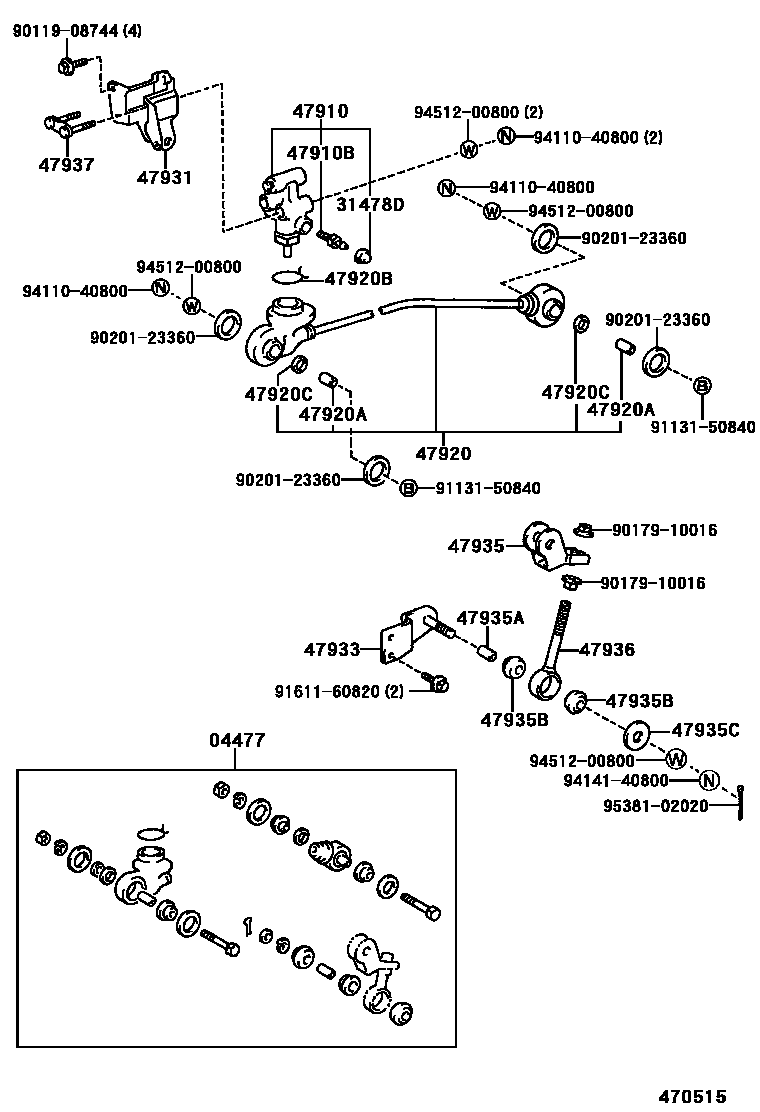

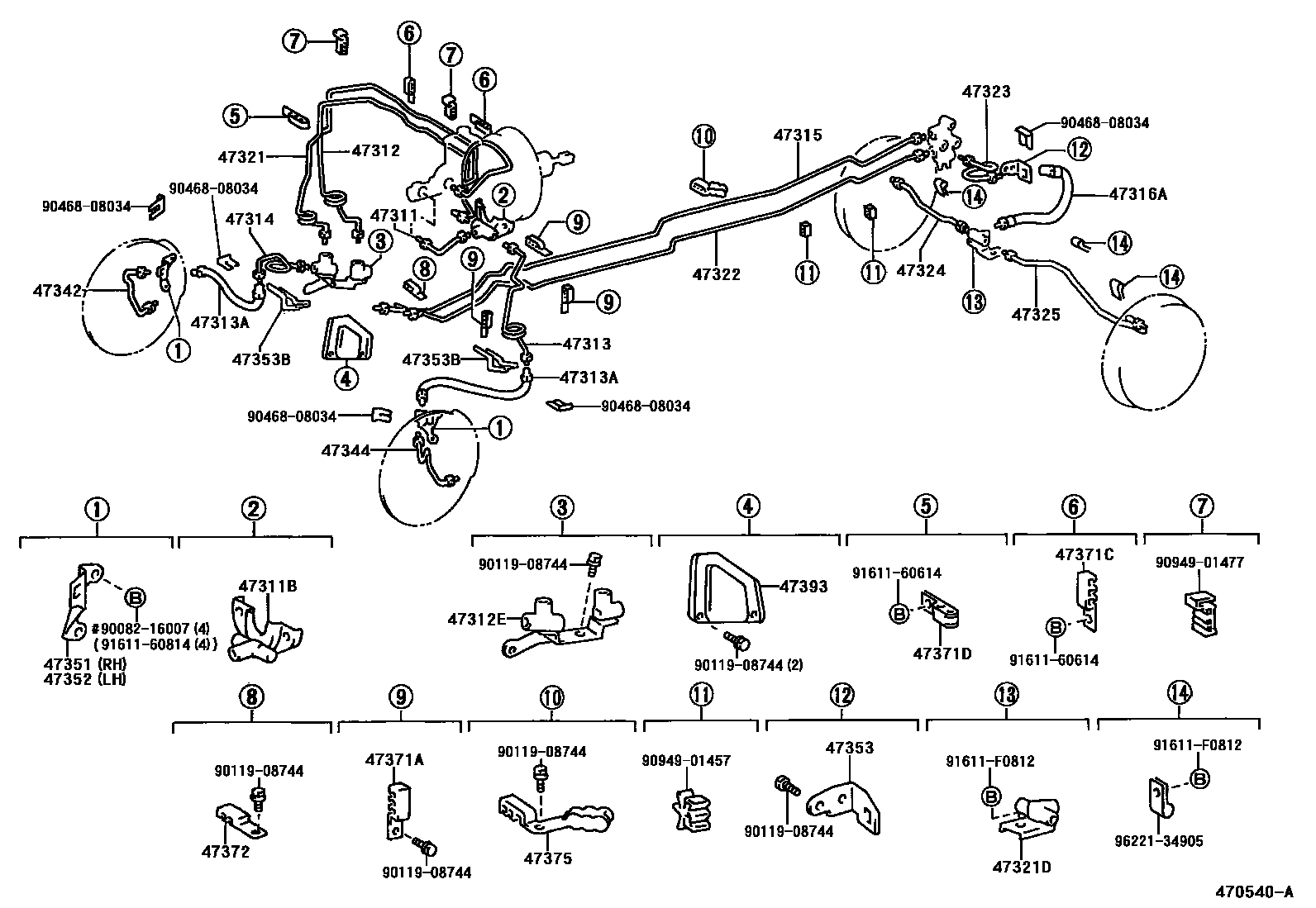

Toyota HILUX EPC diagram 4708, 制动配管和卡箍, with 3 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04477 | Load sensing spring bushing and boot assembly | 04477-60010 |
| 31478D | Bleed plug cap (for LSPV) | 31478-30010 |
| 47311 | No. 1 front brake pipe | 47311-35440 · 47311-35450 · 47311-35460 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90413-10111 · 90413-10226 |
| 47312 | No. 2 front brake pipe | 47312-35610 · 47312-35830 · 47312-3D070 · 47312-3D150 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90415-10006 |
| 47313 | No. 3 front brake pipe | 47313-35610 · 47313-35620 · 47313-35630 · 47313-35640 |
| 47313A | No. 1 front flexible hose | 90947-02447 · 90947-02581 |
| 47314 | No. 4 front brake pipe | 47314-35170 |
| 47315 | No. 5 front brake pipe | 47315-35180 |
| 47316A | Flexible hose (for rear brake pipe) | 96940-34205 · 96940-34206 |
| 47321 | No. 1 rear brake pipe | 47321-35460 · 47321-35480 · 47321-35490 · 47321-35510 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90413-10198 |
| 47322 | No. 2 rear brake pipe | 47322-35510 |
| 47323 | No. 3 rear brake pipe | 47323-35100 |
| 47324 | No. 4 rear brake pipe | 47324-35200 · 47324-35230 |
| 47325 | No. 5 rear brake pipe | 47325-35210 · 47325-35250 |
| 47342 | No. 2 right front wheel cylinder brake pipe | 47341-35110 |
| 47344 | No. 2 left front wheel cylinder brake pipe | 47343-35110 |
| 47351 | Right front flex hose bracket | 47351-35170 |
| 47352 | Left front flex hose bracket | 47352-35190 |
| 47353 | Rear flex hose bracket | 47352-35200 |
| 47353B | No. 3 Flexible Hose Bracket | 47353-35060 · 47353-35070 |
| 47371A | No. 1 brake pipe clamp | 47371-35070 |
| 47371C | No. 7 brake pipe clamp | 47371-35130 |
| 47371D | No. 8 brake pipe clamp | 47372-35080 |
| 47372 | No. 2 brake pipe clamp | 47372-35030 |
| 47374B | No. 4 brake pipe clamp | 47374-35020 |
| 47375 | No. 5 brake pipe clamp | 47375-35070 · 47375-35100 |
| 47393 | brake pipe heat shield | 47393-35051 |
| 47910 | Load sensing proportional valve assembly | 47910-35120 · 47910-35350 |
| 47910B | Bleed plug | 47547-27020 |
| 47920 | Load sensing spring assembly | 47920-35070 |
| 47920A | Collar (for load sensing spring) | 90387-08099 |
| 47920B | Clamp (for load sensing valve dust cover) | 90467-31110 |
| 47920C | Washer (for load sensing spring) | 90202-10103 |
| 47931 | Load sensing valve bracket | 47931-35080 |
| 47933 | No. 1 load-sensing spring lifting eye bracket | 47933-35060 |
| 47935 | No. 1 load-sensing spring lifting ear | 47935-35020 |
| 47935A | Shaft collar (for load sensing spring lifting lugs) | 90387-08099 |
| 47935B | Bushing (for load sensing spring lifting lugs) | 90385-10064 |
| 47935C | Fixings (for load-sensing spring lifting lugs) | 90201-08062 |
| 47936 | No. 2 load-sensing spring lifting lugs | 47936-35040 |
| 47937 | Load sensing valve fixing plate | 47937-60010 |
