Toyota HILUX 制动总泵 — Figure 4702

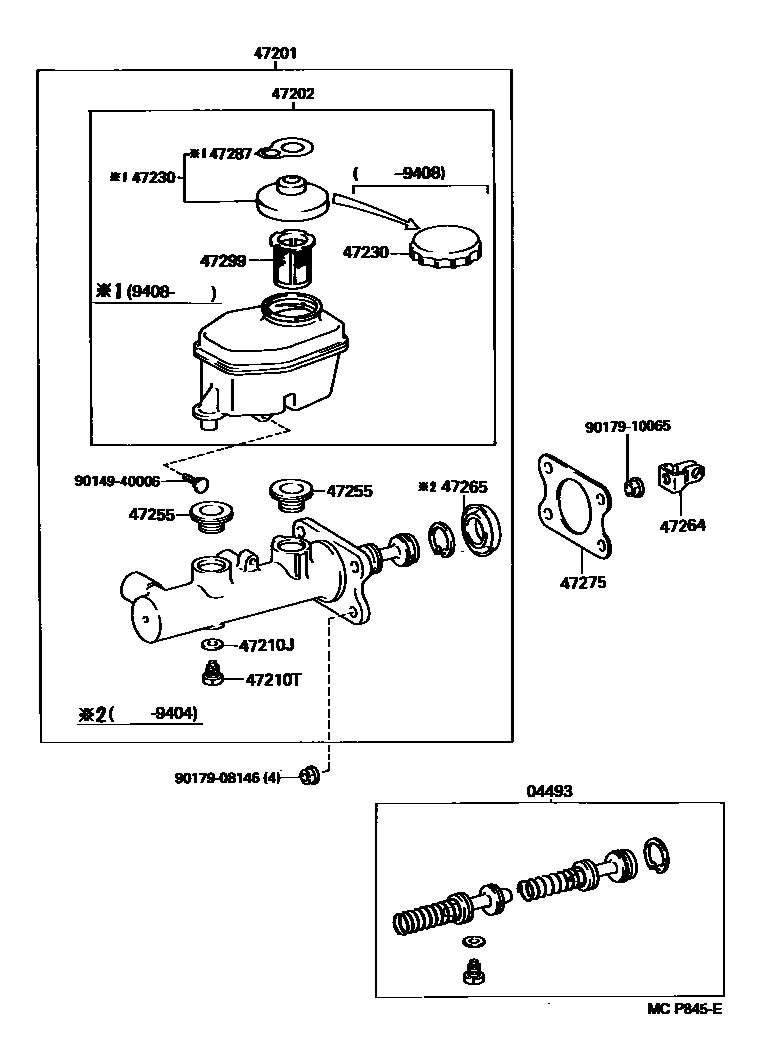

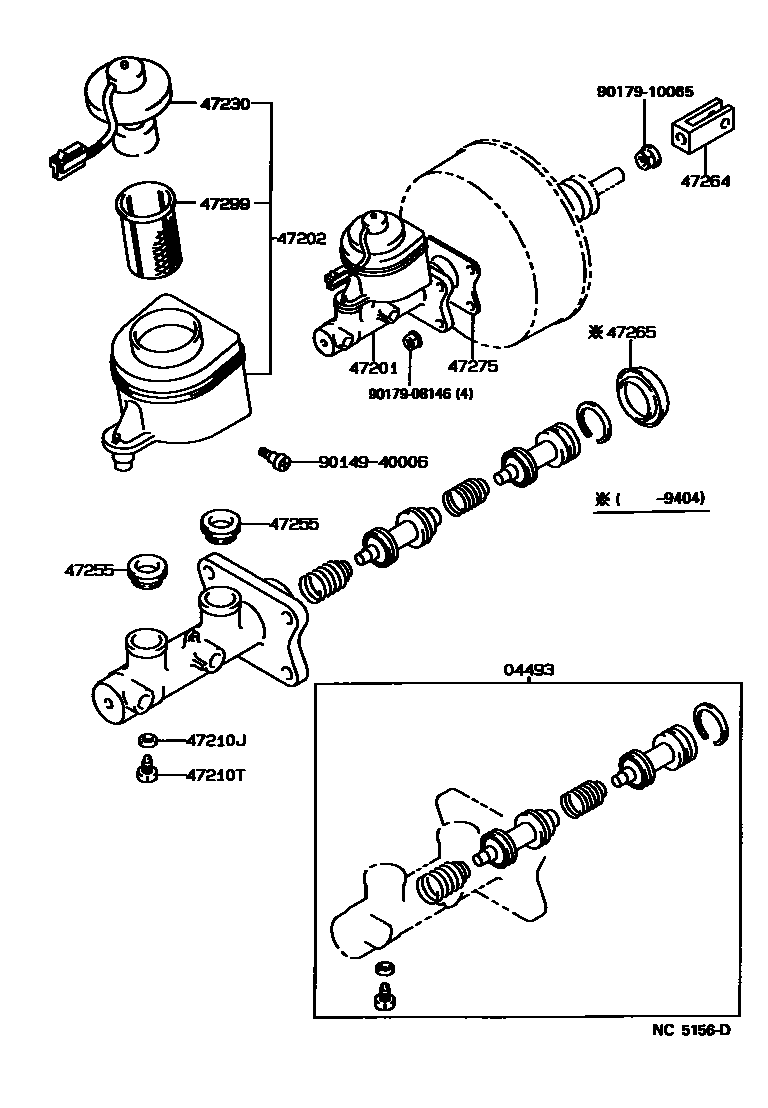

Toyota HILUX EPC diagram 4702, 制动总泵, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-35290 · 04493-60210 · 04493-60280 |
| 47201 | Brake master cylinder sub-assembly | 47201-35770 · 47201-35820 · 47201-3D060 · 47201-3D130 · 47201-3D140 · 47201-3D141 · 47201-3D170 · 47201-3D171 · 47201-3D210 · 47201-3D211 · 47201-3D220 · 47201-3D221 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47202-35210 · 47202-35220 · 47202-35260 · 47202-35270 · 47202-35300 · 47202-35301 · 47202-35320 · 47202-35321 |
| 47210J | Gasket (for master cylinder) | 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-20100 · 47230-20140 · 47230-35011 · 47230-35020 · 84460-12070 · 84460-35030 · 84460-35040 |
| 47255 | Master pump reservoir seal | 47255-16010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-22010 · 47264-28010 |
| 47265 | Master pump dust jacket | 47265-20050 |
| 47275 | brake master cylinder gasket | 47275-24010 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-24010 · 47299-32010 |
