Toyota HILUX Parking Brake & Cable — Figure 4601

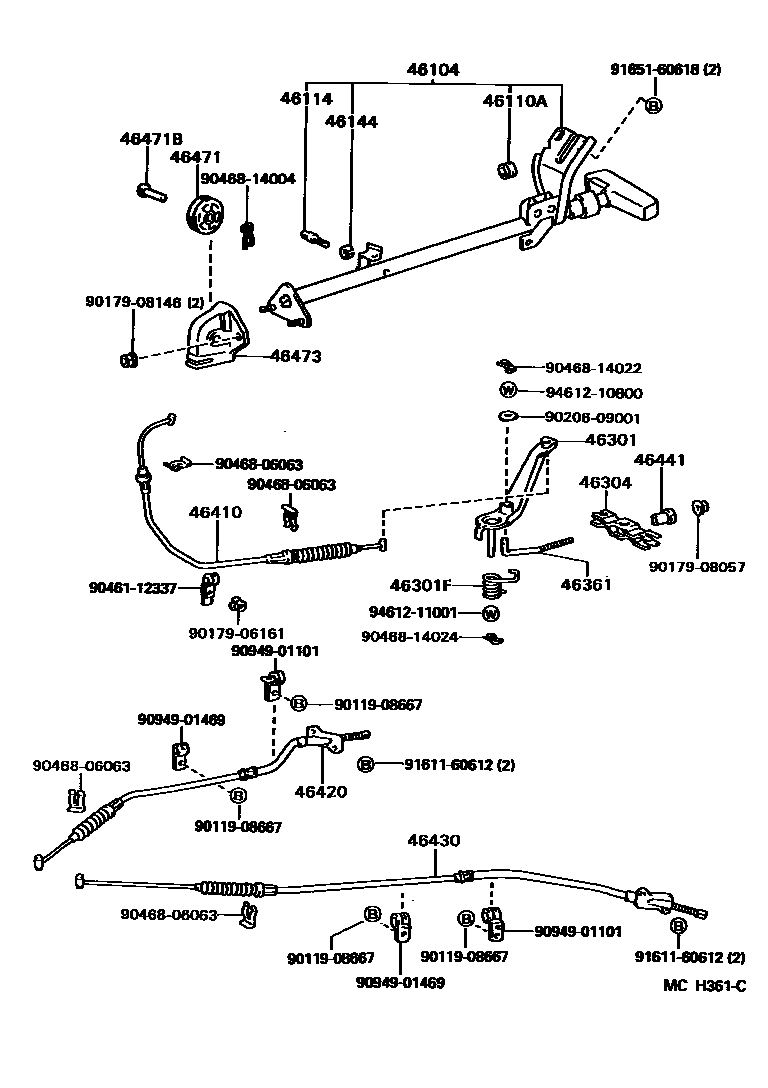

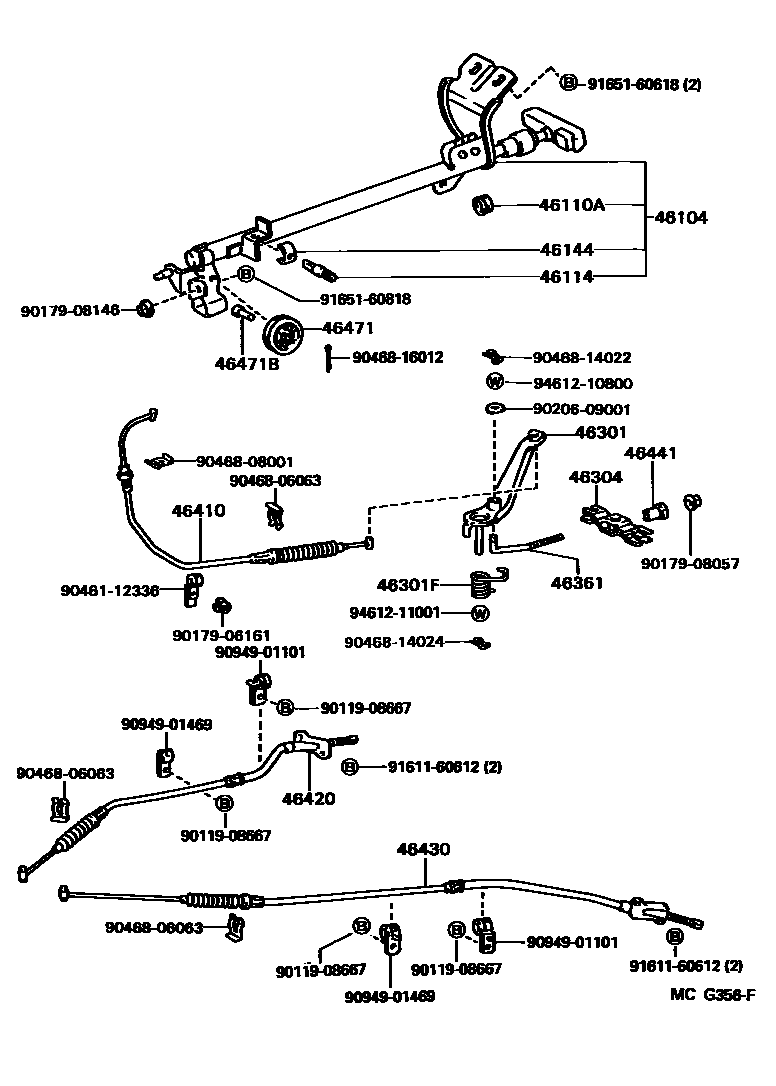

Toyota HILUX EPC diagram 4601, Parking Brake & Cable, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46104 | Parking brake control handle sub-assembly | 46104-35010 · 46104-35030 · 46110-35230 |
| 46110A | Bushing or O-ring (for parking brake plunger) | 90386-11195 |
| 46114 | Parking brake plunger pin | 46114-20010 |
| 46144 | Parking brake plunger vibration isolator | 46144-30020 |
| 46301 | Parking brake intermediate lever sub-assembly | 46301-35160 · 46301-35180 · 46301-35250 · 46301-35260 |
| 46301F | Torsion spring (for parking brake intermediate lever) | 90508-32008 · 90508-32018 |
| 46304 | Parking brake balancer sub-assembly | 46304-22020 |
| 46361 | Parking brake lever | 46361-35070 |
| 46410 | Parking brake cable assembly No. 1 | 46410-35410 · 46410-35420 · 46410-35500 · 46410-35710 |
| 46420 | Parking brake No. 2 cable assembly | 46420-35470 · 46420-35580 |
| 46430 | Parking brake No. 3 cable assembly | 46430-35380 · 46430-35440 |
| 46441 | No. 1 cable adjustment nut | 46441-35010 |
| 46471 | Wiring harness pulley | 46471-20010 |
| 46471B | Holed pin (for harness pulley assembly) | 90240-08017 · 90240-08070 |
| 46473 | pulley bracket | 46473-35020 |
