Toyota HILUX 前转向齿轮和连杆 — Figure 4505

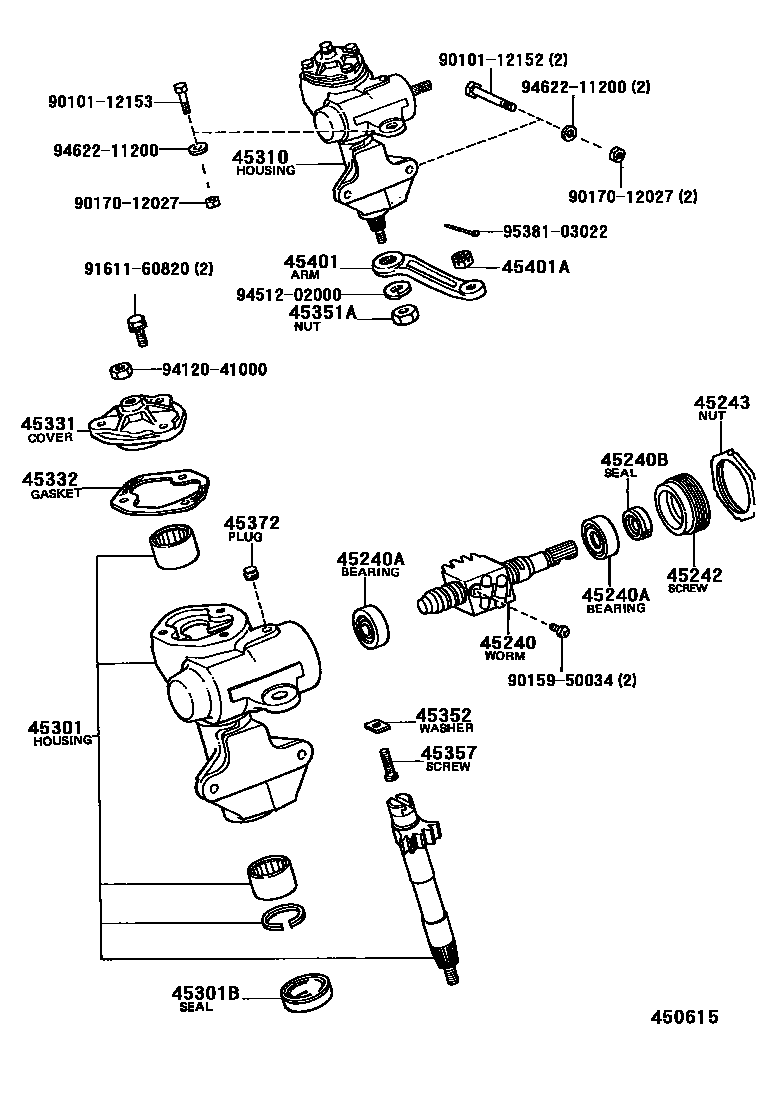

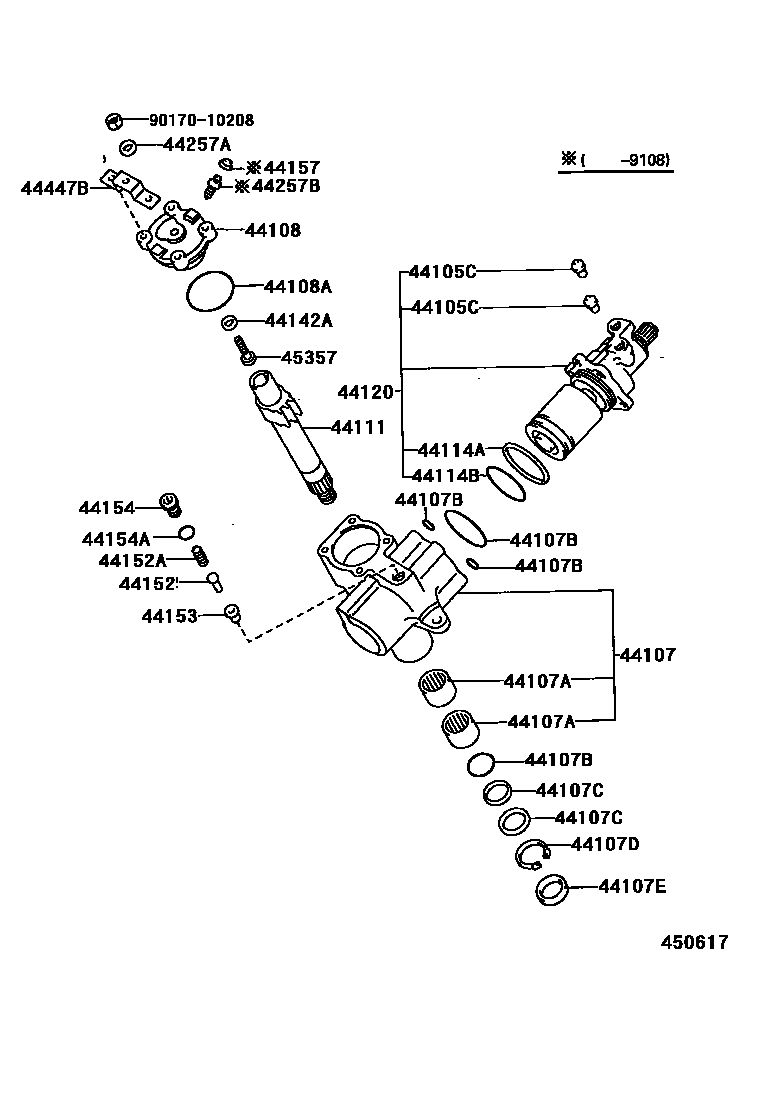

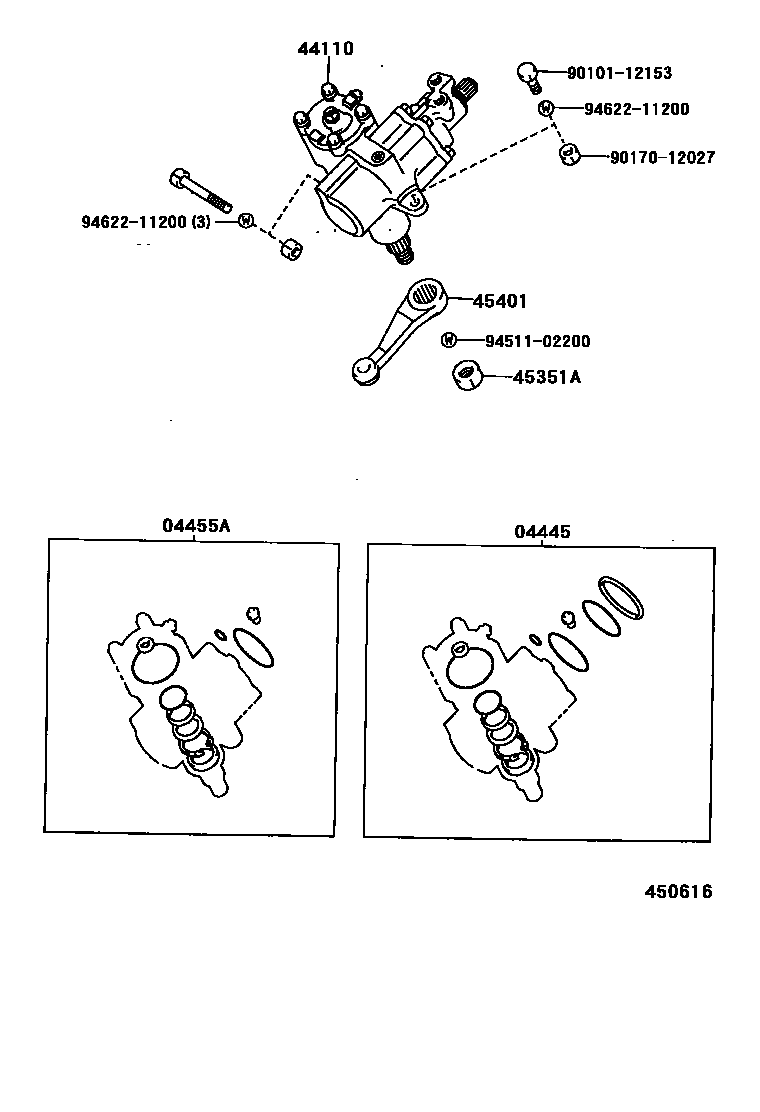

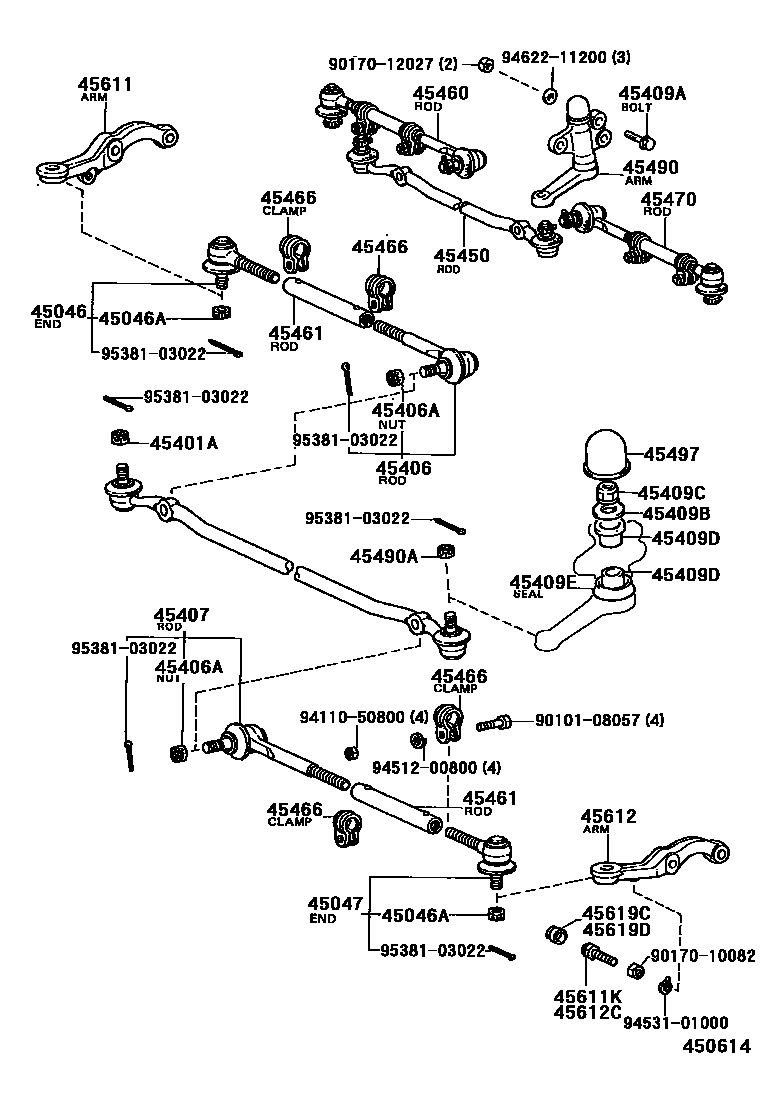

Toyota HILUX EPC diagram 4505, 前转向齿轮和连杆, with 4 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445 | Power steering gear gasket assembly (for recirculating steel balls) | 04445-35090 · 04445-35120 |
| 04455A | Power Steering Cross Shaft Overhaul Pad Assembly | 04455-35060 · 04455-35090 |
| 44105C | Connector seat (for valve body shell) | 90410-06005 |
| 44107 | Power steering housing sub-assembly | 44107-35090 · 44107-35180 · 44107-35190 |
| 44107A | Needle roller bearings (for power steering housing) | 90364-32003 |
| 44107B | O-ring (for power steering housing) | 90301-33002 · 90301-65145 · 96711-19010 · 96711-19014 |
| 44107C | Ring (for power steering housing) | 90562-31002 · 90562-32002 |
| 44107D | Hole snap ring (for power steering housing) | 90521-44002 |
| 44107E | Oil seal (for power steering housing) | 90311-32016 · 90312-32002 |
| 44108 | Side cover sub-assembly | 44108-35020 · 44108-35060 · 44108-35070 |
| 44108A | O-ring (for side cover) | 90301-64002 |
| 44110 | Power steering gear assembly | 44110-35130 · 44110-35280 · 44110-35290 |
| 44111 | horizontal axis | 44111-35030 |
| 44114A | Ring (for power piston nut) | 90562-67002 |
| 44114B | O-ring (for power piston nut) | 90301-64005 |
| 44120 | Valve assembly with ball nut | 44120-35130 · 44120-35270 · 44120-35280 |
| 44142A | No. 1 lock nut | 44142-22020 · 44142-60020 |
| 44152 | power piston plunger | 44152-30020 |
| 44152A | Compression spring (for power piston plunger) | 90501-20095 |
| 44153 | Power piston plunger guide | 44153-30020 |
| 44154 | Power piston plunger guide nut | 44154-30020 |
| 44154A | O-ring (for power piston plunger guide nut) | 96711-19014 |
| 44157 | Bleeder plug cap (for power steering housing) | 44157-30010 |
| 44257A | Seal washer (for cross-axis adjustment screw) | 90210-10001 |
| 44257B | Bleed plug (for power steering housing) | 47547-20010 |
| 44447B | Hose Bracket No. 1 | 44447-35020 |
| 45046 | Right tie rod end sub-assembly | 45046-39165 |
| 45046A | Castle nuts (for tie rod ends) | 90171-14042 |
| 45047 | Left tie rod end sub-assembly | 45046-39165 |
| 45240 | Steering worm assembly | 45240-35070 · 45240-35080 · 45240-35110 · 45240-35120 |
| 45240A | Bearings (for steering worm) | 90369-19006 |
| 45240B | Oil seal (for steering worm) | 90311-19001 |
| 45242 | Worm bearing adjustment screw | 45242-27020 · 45242-35060 |
| 45243 | Worm bearing adjustment screw lock nut | 45243-28010 · 45243-35020 |
| 45301 | Steering housing sub-assembly | 45301-35220 · 45301-35230 · 45301-35290 · 45301-35300 |
| 45301B | Oil seal (for sector gear shaft) | 90310-28027 · 90311-32014 |
| 45310 | Steering housing assembly | 45310-35230 · 45310-35240 · 45310-35300 · 45310-35310 |
| 45331 | Sector gear shaft end cover | 45304-27010 · 45304-35080 |
| 45332 | Sector gear shaft end cover gasket | 45332-22020 · 45332-35040 |
| 45351A | Hexagonal nut (used to fix the sector gear shaft to the steering rocker arm) | 90170-20147 · 90170-22058 |
| 45352 | Sector gear shaft thrust washer | 45352-20010 · 45353-20010 · 45354-20010 · 45355-20010 · 45356-20010 |
| 45357 | Sector gear shaft adjustment screw | 45357-22010 · 45357-30040 · 45357-60030 |
| 45372 | Steering case oil plug | 90930-03027 |
| 45401 | Steering rocker arm sub-assembly | 45411-35320 · 45411-35330 · 45411-35340 · 45411-35350 |
| 45401A | Castle nut (for steering rocker arm) | 90171-14042 |
| 45406 | Right tie rod sub-assembly | 45406-39115 |
| 45406A | Castle nuts (for tie rods) | 90171-12028 · 90171-14042 |
| 45407 | Left tie rod sub-assembly | 45406-39115 |
| 45409A | Hexagonal bolts (used to secure the follower arm bracket) | 90101-12152 · 90101-12153 |
| 45409B | Flat Washer (for follower arm rubber bushing) | 90201-14010 |
| 45409C | Nut (for follower arm bracket) | 94184-61400 |
| 45409D | Bushing (for follower arm) | 90386-18002 |
| 45409E | Dust seal (for follower arm bracket) | 90304-31012 |
| 45450 | Steering intermediate tie rod assembly | 45450-39155 · 45450-39165 |
| 45460 | Right tie rod assembly | 45460-39215 |
| 45461 | steering tie rod | 45465-35020 · 45465-35050 |
| 45466 | Tie rod end clamp | 45466-30020 |
| 45470 | Left tie rod assembly | 45460-39215 |
| 45490 | Steering follower arm assembly | 45490-39305 · 45490-39315 |
| 45490A | Castle nut (for follower arm) | 90171-12028 |
| 45497 | Follower arm bracket cover | 45497-28010 |
| 45611 | Right steering knuckle arm | 45611-35160 |
| 45611K | Bolt (for right steering knuckle block) | 90106-10032 |
| 45612 | Left steering knuckle arm | 45612-35180 |
| 45612C | Bolt (for left steering knuckle block) | 90106-10032 |
| 45619C | Right steering knuckle stop cover | 45619-14020 · 45619-35030 |
| 45619D | Left steering knuckle stop cover | 45619-14020 · 45619-35030 |
