Toyota HILUX 动力转向配管 — Figure 4503

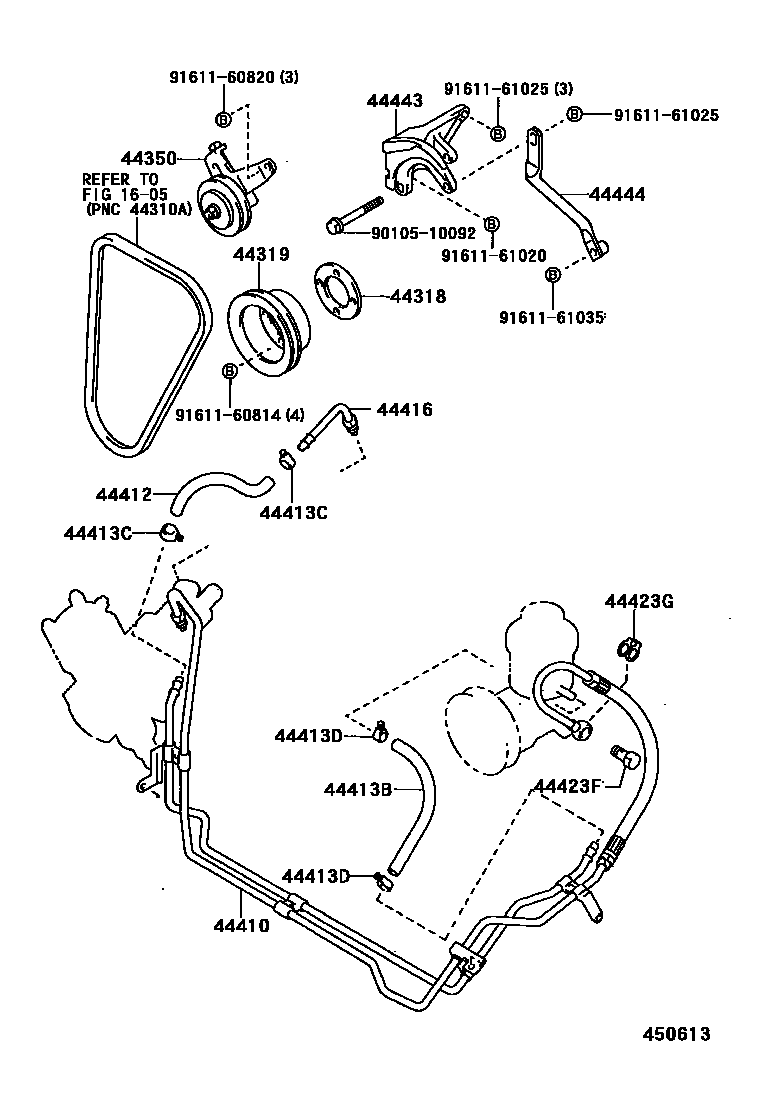

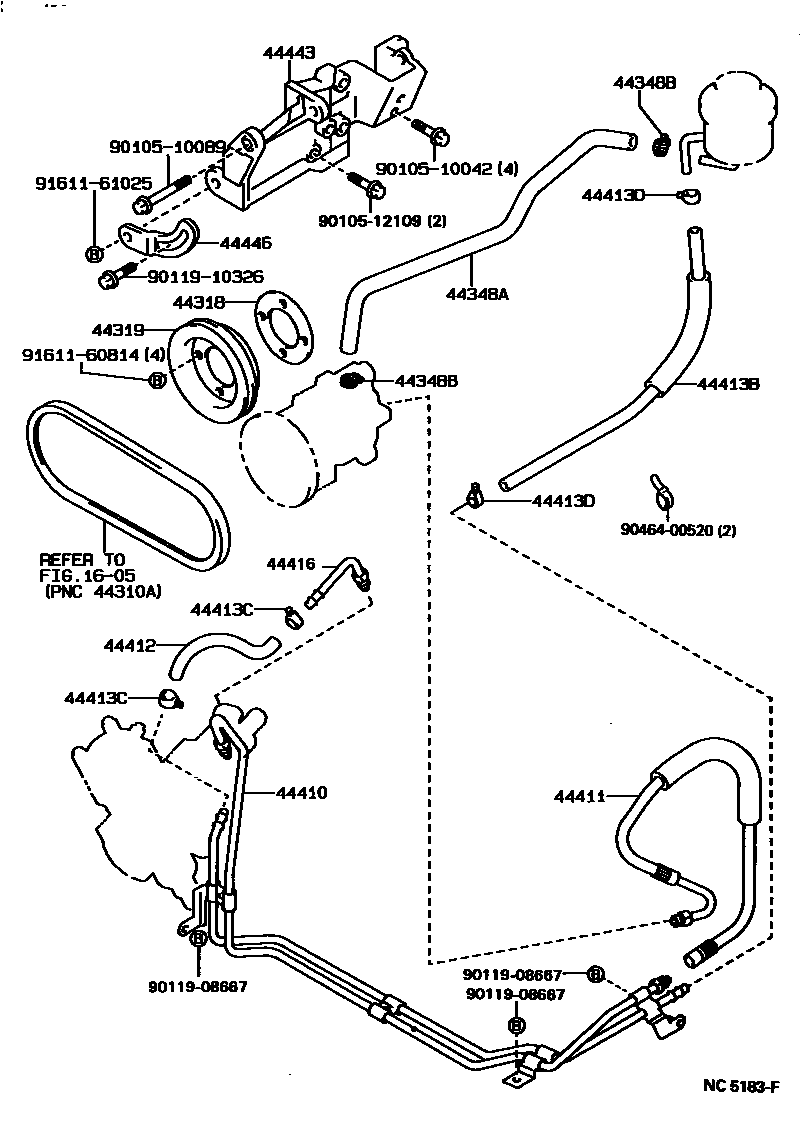

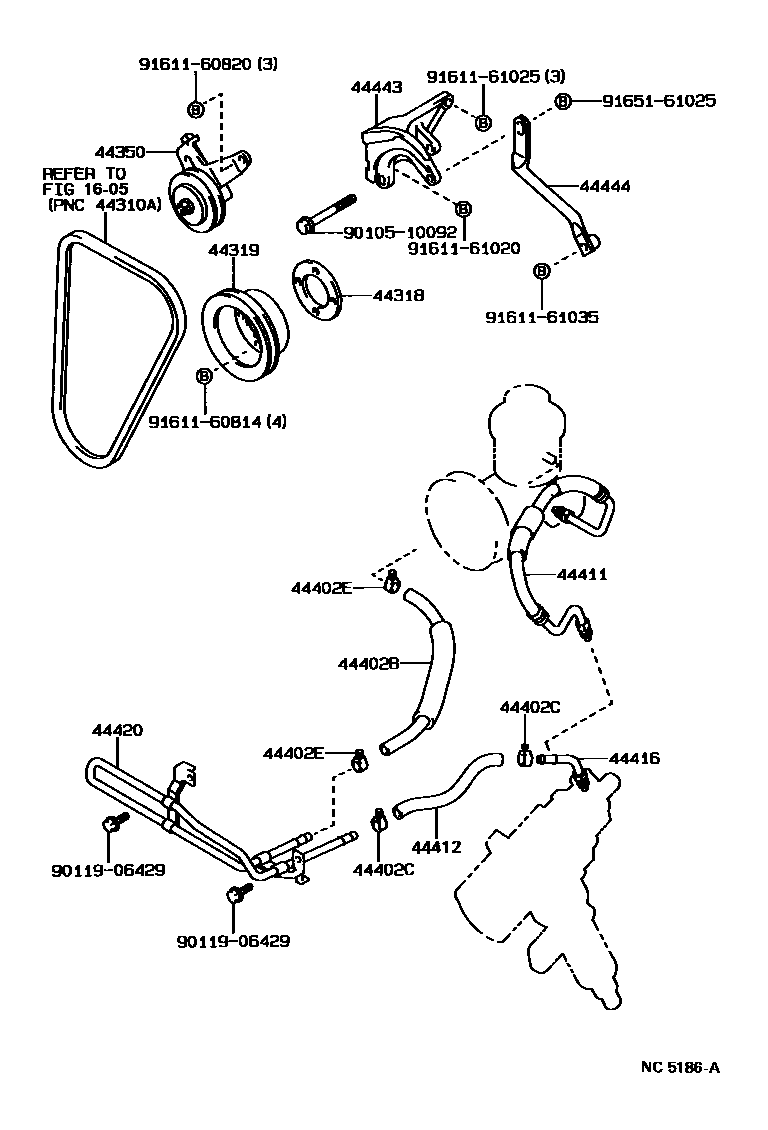

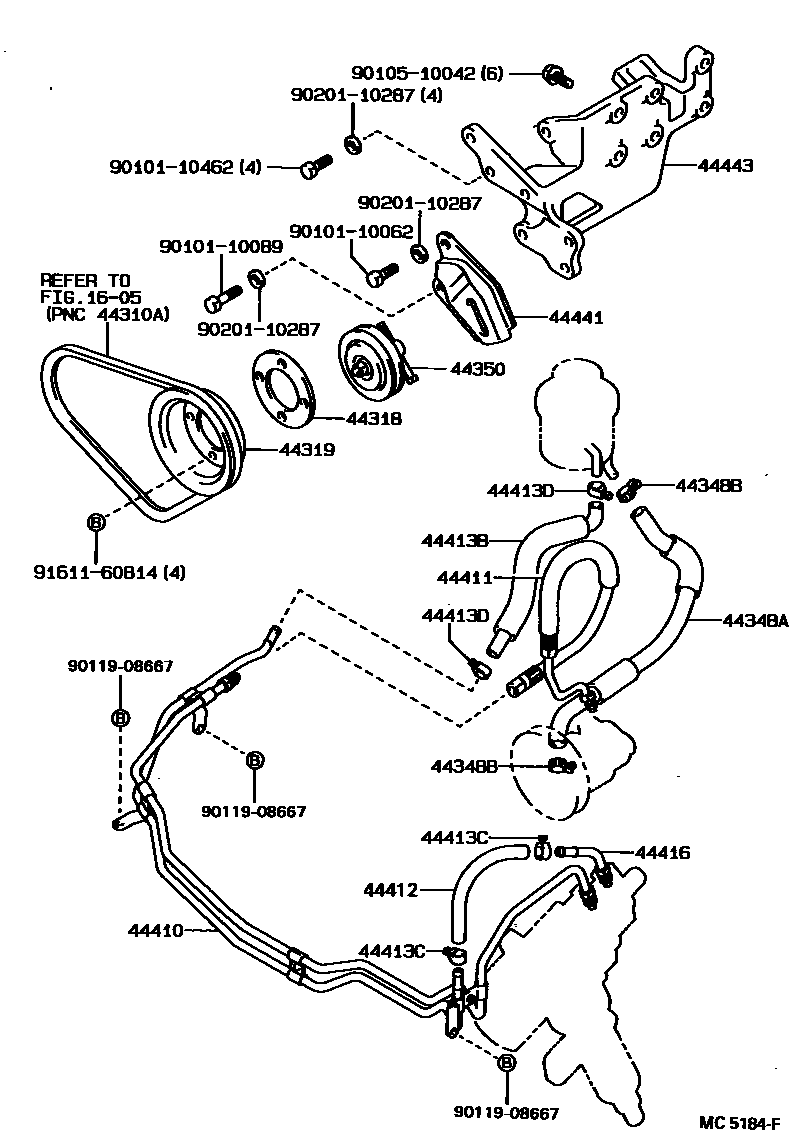

Toyota HILUX EPC diagram 4503, 动力转向配管, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44318 | Vane pump drive pulley spacer | 44318-28012 · 44318-35010 |
| 44319 | Vane pump drive pulley | 44319-22010 · 44319-28013 · 44319-35030 |
| 44348A | No. 1 hose (tank to pump) | 44348-35110 · 44348-35160 |
| 44348B | Clamp (for reservoir to pump hose) | 90460-26001 · 90467-21005 |
| 44350 | Power steering idler assembly | 44350-28011 · 44350-35010 · 44350-60020 |
| 44402B | Power steering oil cooler outlet hose | 90447-18034 |
| 44402C | Power steering oil cooler inlet hose clamp | 90460-01001 |
| 44402E | Power steering oil cooler outlet hose clamp | 90460-01001 |
| 44410 | Pressure supply pipe assembly | 44410-35130 · 44410-35370 |
| 44411 | pressure supply hose | 44411-35260 · 44411-35261 · 44411-35262 · 44411-35310 · 44411-35320 |
| 44412 | Oil return hose | 90445-18079 · 90445-18105 · 90445-18147 |
| 44413B | Hoses (for storage tank inlet) | 90447-18040 · 90447-18044 |
| 44413C | Clamp (for oil return pipe outlet hose) | 90460-01001 · 90467-16008 |
| 44413D | Clamp (for oil storage tank inlet hose) | 90460-01001 · 90467-16008 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-35040 · 44416-35070 |
| 44420 | Oil cooler assembly | 44420-35040 |
| 44423F | Joint bolts | 90401-16008 |
| 44423G | Joint bolt gasket | 90430-16242 |
| 44441 | Pump front bracket | 44441-35040 |
| 44443 | pump bracket | 44443-28011 · 44443-30080 · 44443-35011 |
| 44444 | Pump back stay | 44444-27010 |
| 44446 | Adjust the stand | 44446-30070 |
