Toyota HILUX 叶片泵和储油罐(动力转向) — Figure 4502

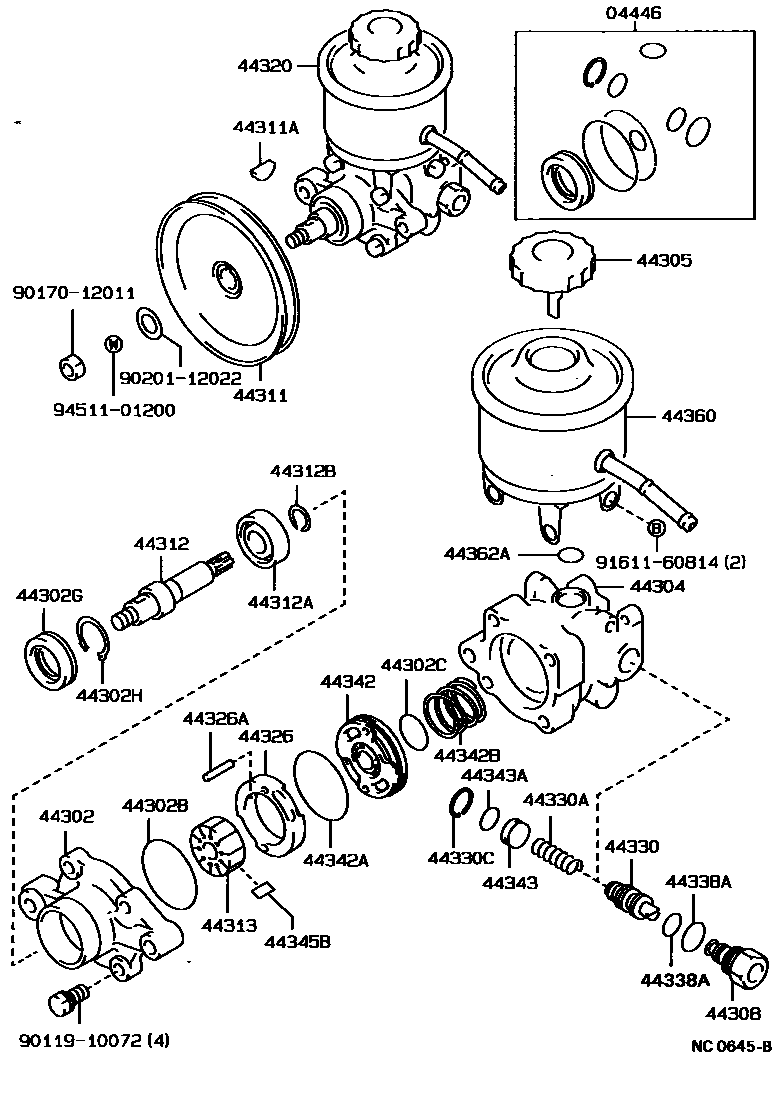

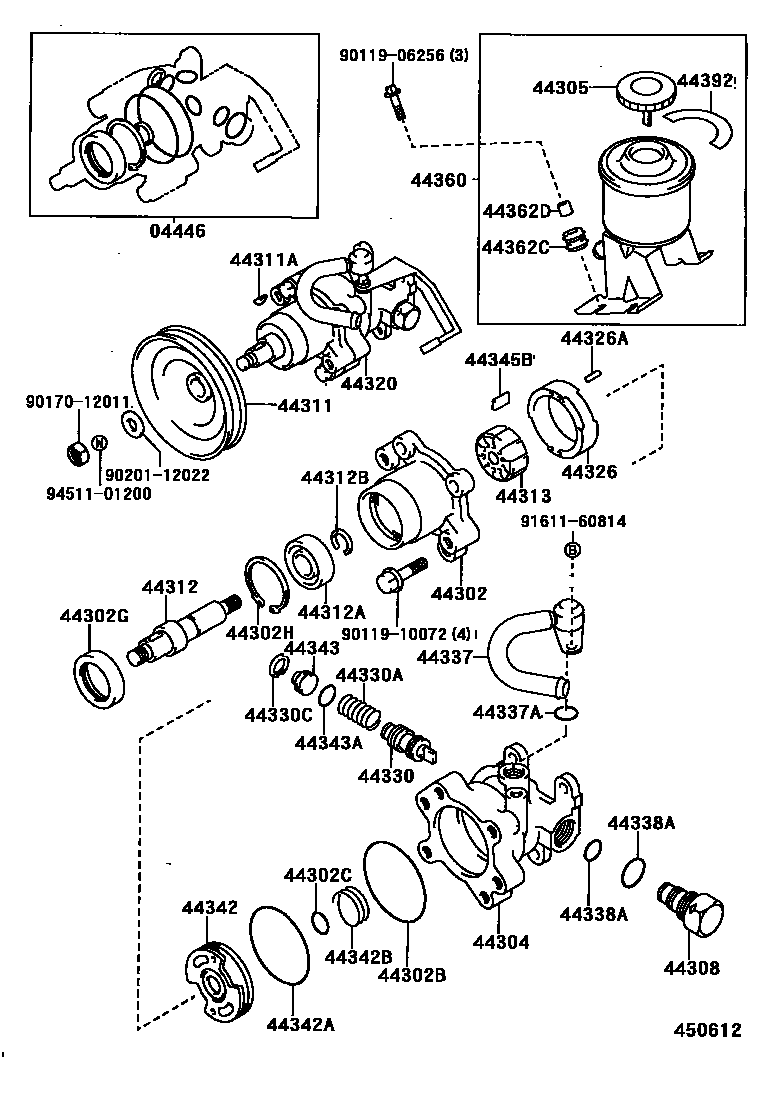

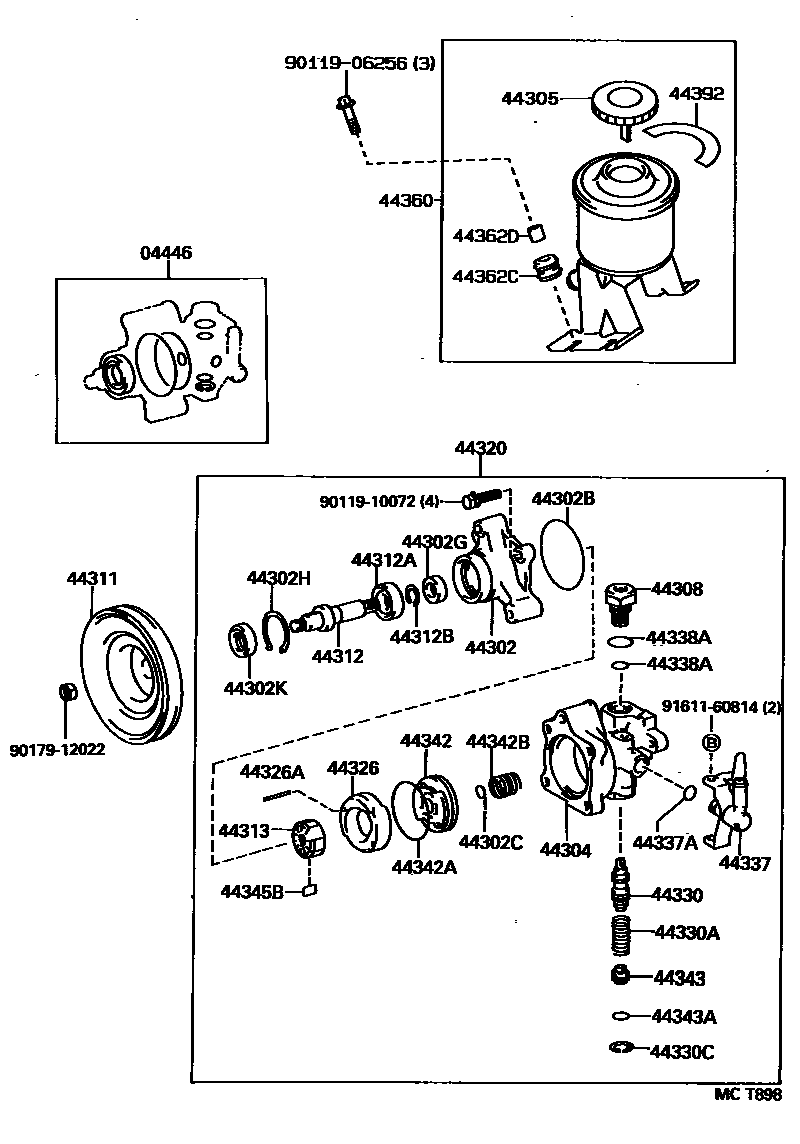

Toyota HILUX EPC diagram 4502, 叶片泵和储油罐(动力转向), with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-26030 · 04446-30030 · 04446-30132 |
| 44302 | Front vane pump housing sub-assembly | 44302-12010 · 44302-14010 · 44302-22020 · 44302-30110 |
| 44302B | No. 1 O-ring (for vane pump housing) | 90301-60001 |
| 44302C | No. 2 O-ring (for vane pump housing) | 96711-19016 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90311-17004 · 90311-24001 |
| 44302H | No. 1 snap ring (for vane pump housing) | 90521-44002 · 90521-51003 |
| 44302K | No. 3 oil seal (for vane pump housing) | 90313-23001 |
| 44304 | Vane pump rear housing sub-assembly | 44304-28021 · 44304-30051 · 44304-35041 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-22040 · 44305-35010 |
| 44308 | Pressure hole connector sub-assembly | 44308-35060 |
| 44311 | vane pump pulley | 44311-12010 · 44311-22070 · 44311-30150 · 44311-35030 |
| 44311A | Vane pump pulley key | 90280-05008 |
| 44312 | vane pump shaft | 44312-12010 · 44312-28010 |
| 44312A | Bearings (for vane pump shafts) | 90363-17004 · 90363-17011 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-15001 · 90520-15005 |
| 44313 | vane pump rotor | 44313-22040 · 44313-22050 · 44313-22060 · 44313-22070 · 44313-22080 |
| 44320 | Vane pump assembly | 44320-35250 · 44320-35251 · 44320-35260 · 44320-35261 · 44320-35440 · 44320-35441 |
| 44326 | Cam ring (for vane pumps) | 44325-12010 · 44325-12020 · 44325-12030 · 44325-12040 · 44325-12050 |
| 44326A | Direct sales (for vane pump cam rings) | 90250-05008 |
| 44330 | Flow control valve assembly | 44330-12130 · 44330-12131 · 44330-12140 · 44330-12141 · 44330-12150 · 44330-12151 · 44330-12160 · 44330-12161 · 44330-12170 · 44330-12171 · 44330-12180 · 44330-12181 |
| 44330A | Compression spring (for flow control valve) | 90501-12103 |
| 44330C | Snap ring (for flow control valve) | 96151-01700 |
| 44337 | Power steering suction port connector | 44337-30010 · 44337-35040 |
| 44337A | O-ring (for power steering oil suction port) | 96711-19013 |
| 44338A | O-ring (for pressure port connector) | 90301-22001 |
| 44342 | Vane pump rear end cover | 44341-12010 |
| 44342A | O-ring (for vane pump rear end cover) | 90301-53002 |
| 44342B | Compression spring (for vane pump rear end cover) | 90501-23014 |
| 44343 | Flow control spring seat | 44343-12040 |
| 44343A | O-ring (for flow control spring seat) | 96711-19014 |
| 44345B | vane pump disc | 44345-12010 · 44345-12020 · 44345-12030 · 44345-12040 · 44345-12050 |
| 44360 | Vane pump oil storage tank assembly | 44306-30200 · 44306-35200 · 44360-35081 · 44360-35082 · 44360-35092 |
| 44362A | O-ring (for vane pump oil storage tank) | 96711-19013 |
| 44362C | Buffer pad (for vane pump oil storage tank) | 90480-16005 · 90540-09020 |
| 44362D | Spacer (for vane pump reservoir) | 90387-10040 · 90560-06014 |
| 44392 | Oil storage tank warning labels | 44392-35010 |
