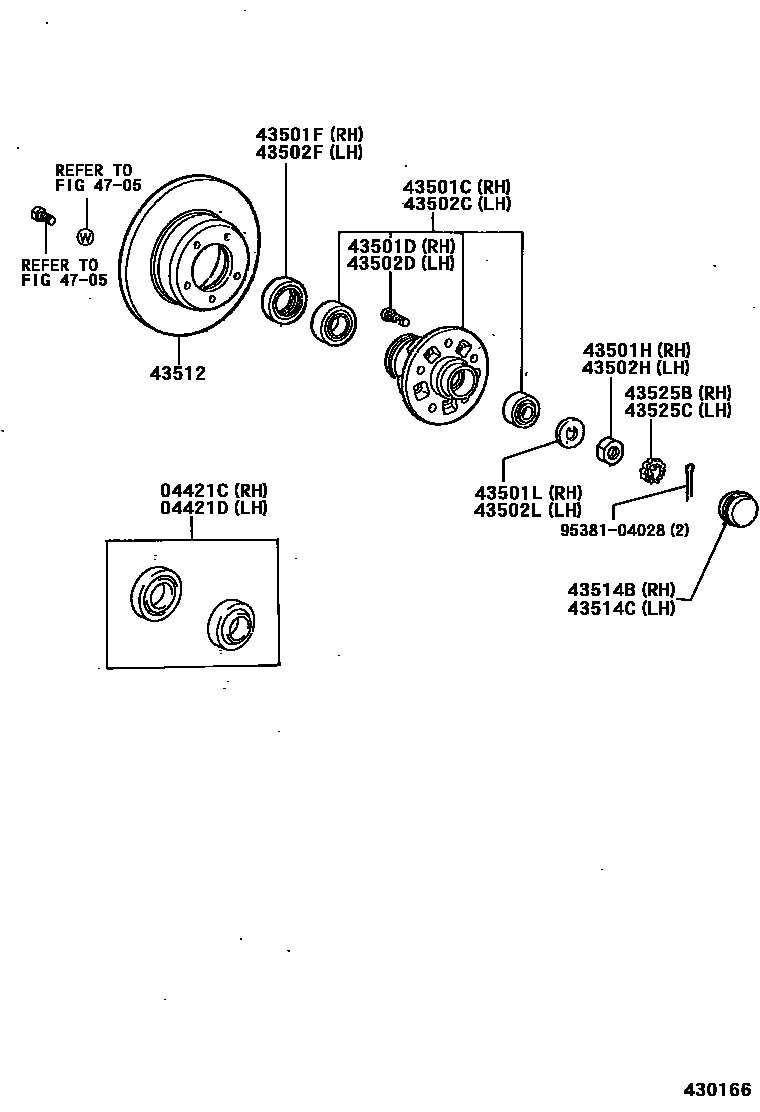

Toyota HILUX Front Axle Hub — Figure 4303
Toyota HILUX EPC diagram 4303, Front Axle Hub, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04421C | Right front axle half shaft bearing assembly | 04421-35010 · 04421-35020 |
| 04421D | Left front axle half shaft bearing assembly | 04421-35010 · 04421-35020 |
| 43501C | Right front axle hub sub-assembly | 43502-39015 · 43502-39025 |
| 43501D | Hub bolt (for right front axle) | 90942-02047 |
| 43501F | Oil seal (for right front axle hub) | 90311-50005 |
| 43501H | Nut (for front axle right half shaft) | 90170-19185 |
| 43501L | Claw washer (for right front axle hub) | 90214-20007 |
| 43502C | Left front axle wheel hub sub-assembly | 43502-39015 · 43502-39025 |
| 43502D | Hub bolt (for left front axle) | 90942-02047 |
| 43502F | Oil seal (for left front axle hub) | 90311-50005 |
| 43502H | Nut (for front axle left half shaft) | 90170-19185 |
| 43502L | Claw washer (for left front axle hub) | 90214-20007 |
| 43512 | front brake disc | 43512-35180 |
| 43514B | Right front axle hub grease cap | 43514-35010 |
| 43514C | Left front axle hub grease cap | 43514-35010 |
| 43525B | Right front wheel adjustment lock cover | 43525-22010 |
| 43525C | Left front wheel adjustment lock cover | 43525-22010 |
