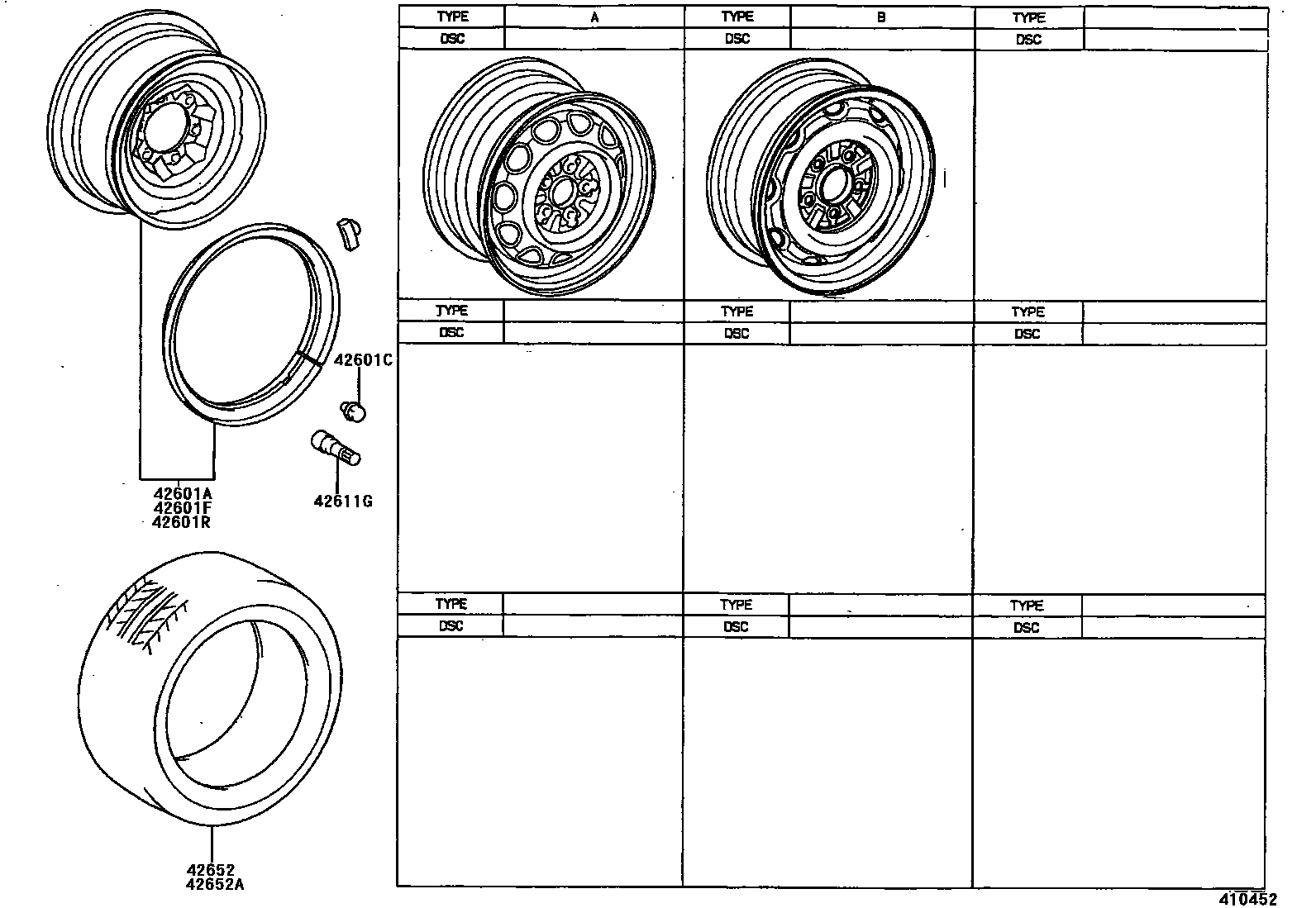

Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601A | Spoke wheel (for spare tire) | 42601-04010 · 42601-26250 |
| 42601C | Hub nut (for axle) | 90942-01061 · 90942-01082 |
| 42601F | Spoke wheels (for front tires) | 42601-04010 · 42601-26250 |
| 42601R | Spoke wheels (for rear tires) | 42601-04010 · 42601-26250 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-35061 · 42603-35062 · 42603-35360 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42652 | tires | 42652-04010 |
| 42652A | Tire (for Spare Wheel) | 42652-04010 |
