Toyota HILUX Propeller Shaft & Universal Joint — Figure 3701

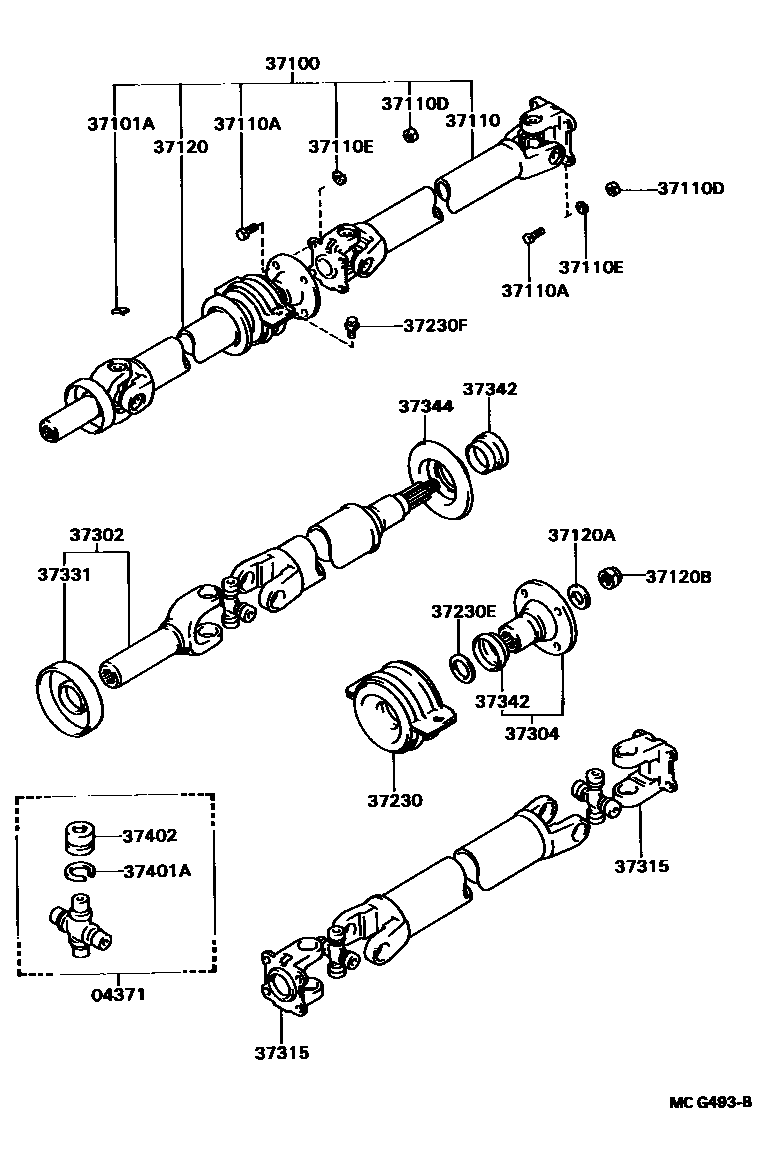

Toyota HILUX EPC diagram 3701, Propeller Shaft & Universal Joint, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04371 | Universal joint cross shaft assembly (for drive shaft) | 04371-25010 |
| 37100 | Drive shaft assembly with central bearing | 37100-35270 · 37100-35650 |
| 37101A | Balance weight No. 1 (for drive shaft) | 90937-01132 · 90937-01136 · 90937-01147 · 90937-01148 · 90937-01149 · 90937-01150 · 90937-01151 · 90937-01152 · 90937-01153 · 90937-01154 · 90937-01155 · 90937-01156 · 90937-01157 · 90937-01158 · 90937-01201 |
| 37110 | Drive shaft assembly | 37110-35230 |
| 37110A | Bolt (for drive shaft) | 90105-10085 |
| 37110D | Nut (for drive shaft) | 90179-10059 |
| 37110E | Washer (for drive shaft) | 90204-10002 |
| 37120 | Intermediate drive shaft assembly | 37120-35220 |
| 37120A | Flat Washer (for intermediate drive shaft assembly) | 90201-20005 |
| 37120B | Nut (for fixing the intermediate drive shaft) | 90179-20006 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-35070 |
| 37230E | No. 1 washer (for intermediate support bearing) | 90201-28005 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-10049 |
| 37302 | Universal joint fork assembly | 37302-35010 |
| 37304 | Universal joint flange sub-assembly | 37304-35051 |
| 37315 | Universal joint flange fork | 37315-35050 |
| 37331 | Sliding shaft dust cover | 37331-30010 |
| 37342 | No. 2 drive shaft dust cover | 37342-30010 |
| 37344 | No. 3 drive shaft dust cover | 37344-35021 |
| 37401A | Hole snap ring (for cross shaft bearings) | 90521-29070 · 90521-29071 · 90521-29072 |
| 37402 | Universal joint cross shaft bearing sub-assembly | 37402-25010 · 37402-25020 |
