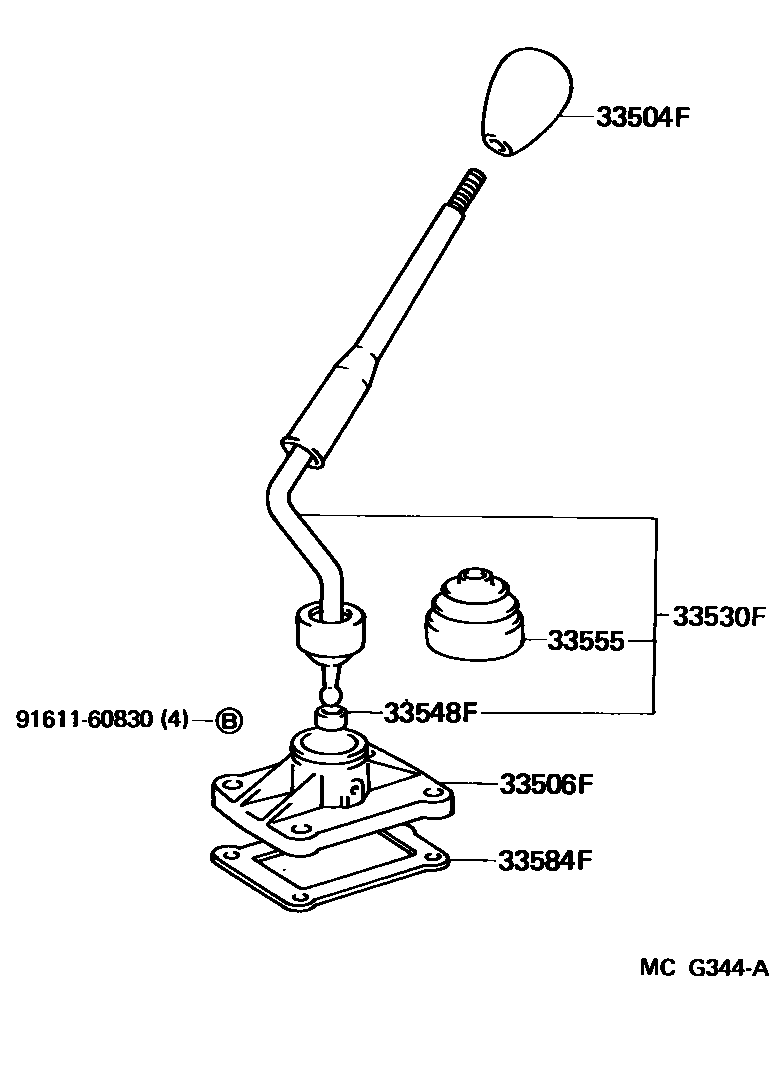

Toyota HILUX Shift Lever & Retainer — Figure 3312
Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-35060 |
| 33530F | Shift lever assembly (for floor shift) | 33530-35160 · 33530-35161 · 33530-35170 · 33530-35171 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-31010 · 33548-35010 |
| 33555 | Gear shift lever dust cover | 33555-35040 |
| 33584F | Shift lever stop pad (for floor shift) | 33584-60010 |
