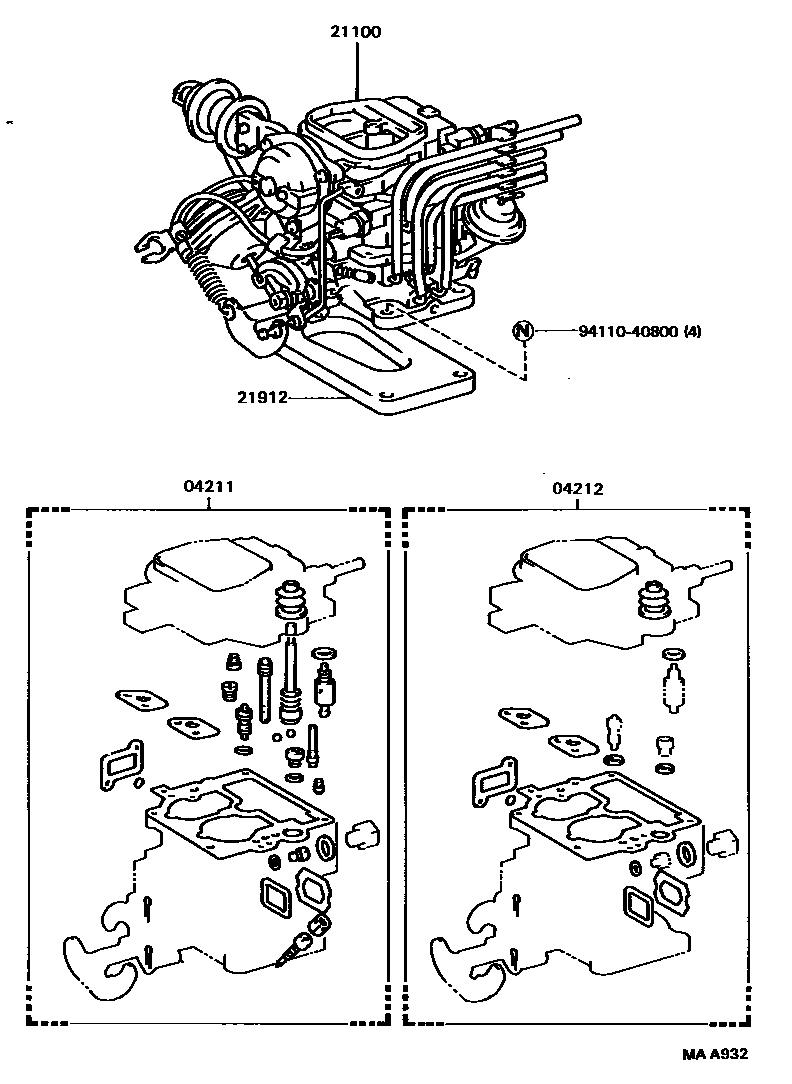

Toyota HILUX carburetor assembly — Figure 2102
Toyota HILUX EPC diagram 2102, carburetor assembly, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04211 | carburetor components | 04211-72190 · 04211-72270 |
| 04212 | carburetor gasket assembly | 04212-73071 |
| 21100 | carburetor assembly | 21100-72270 · 21100-72340 |
| 21912 | Carburetor insulation pad | 21912-71020 · 21912-71021 · 21912-73020 |
