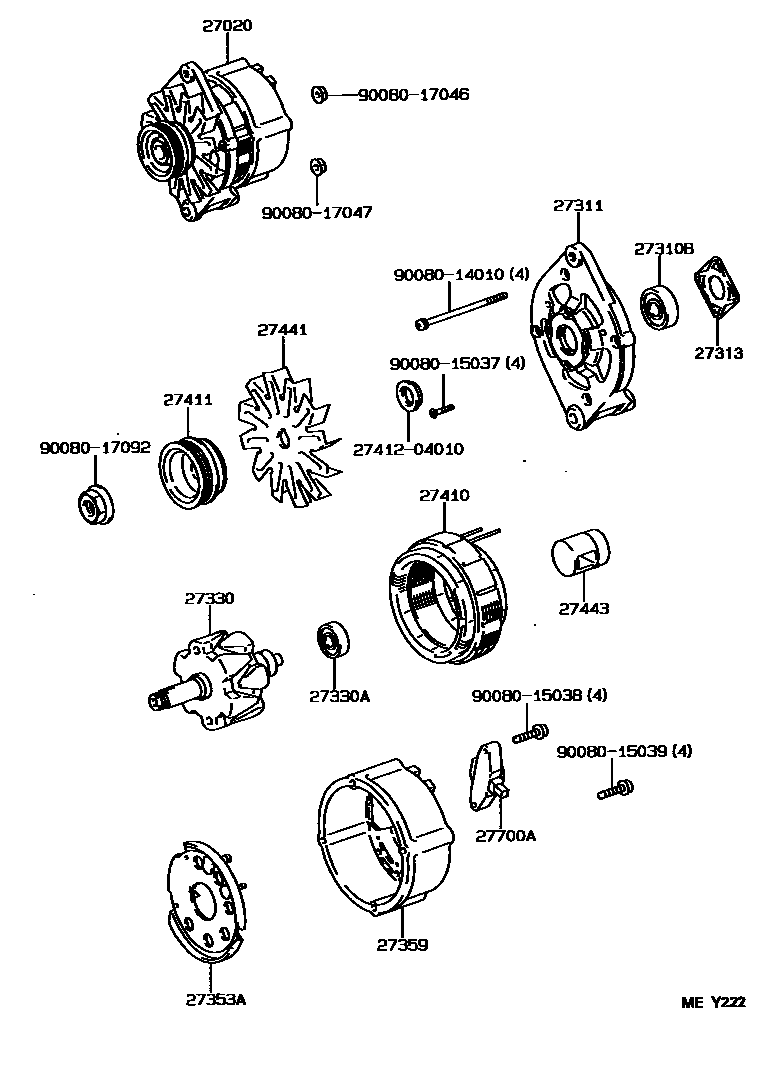

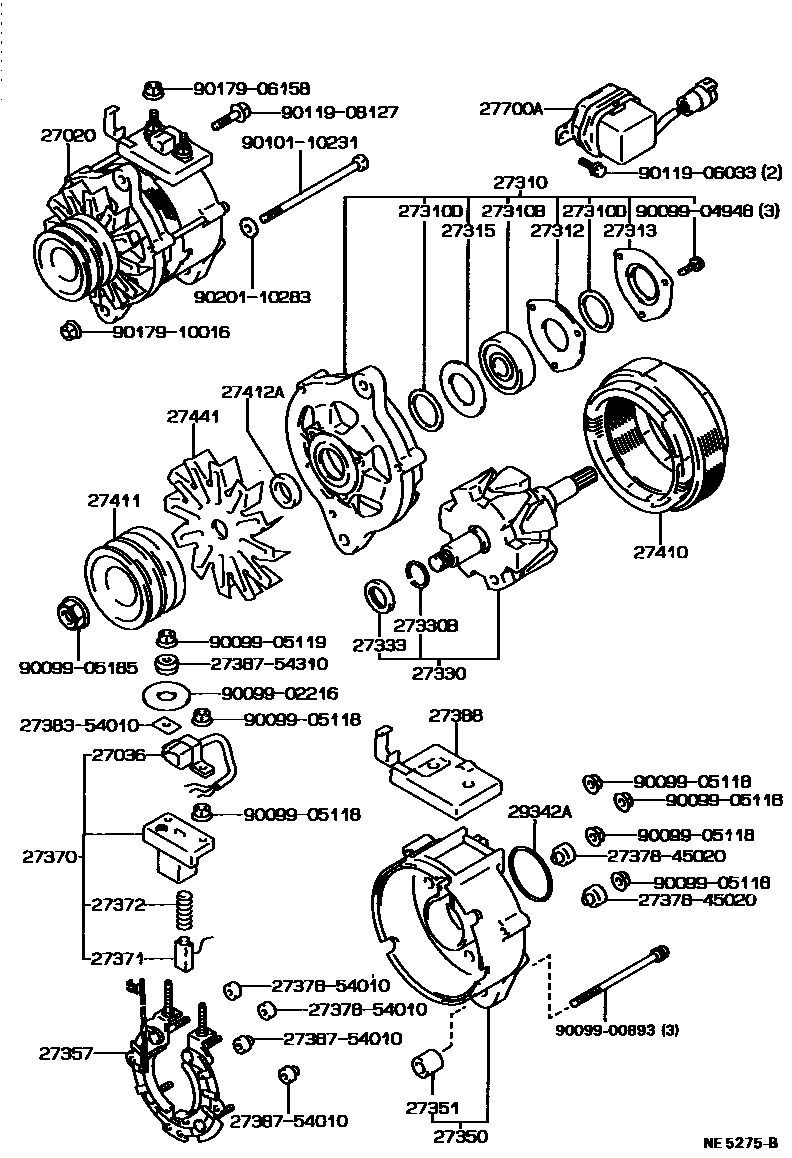

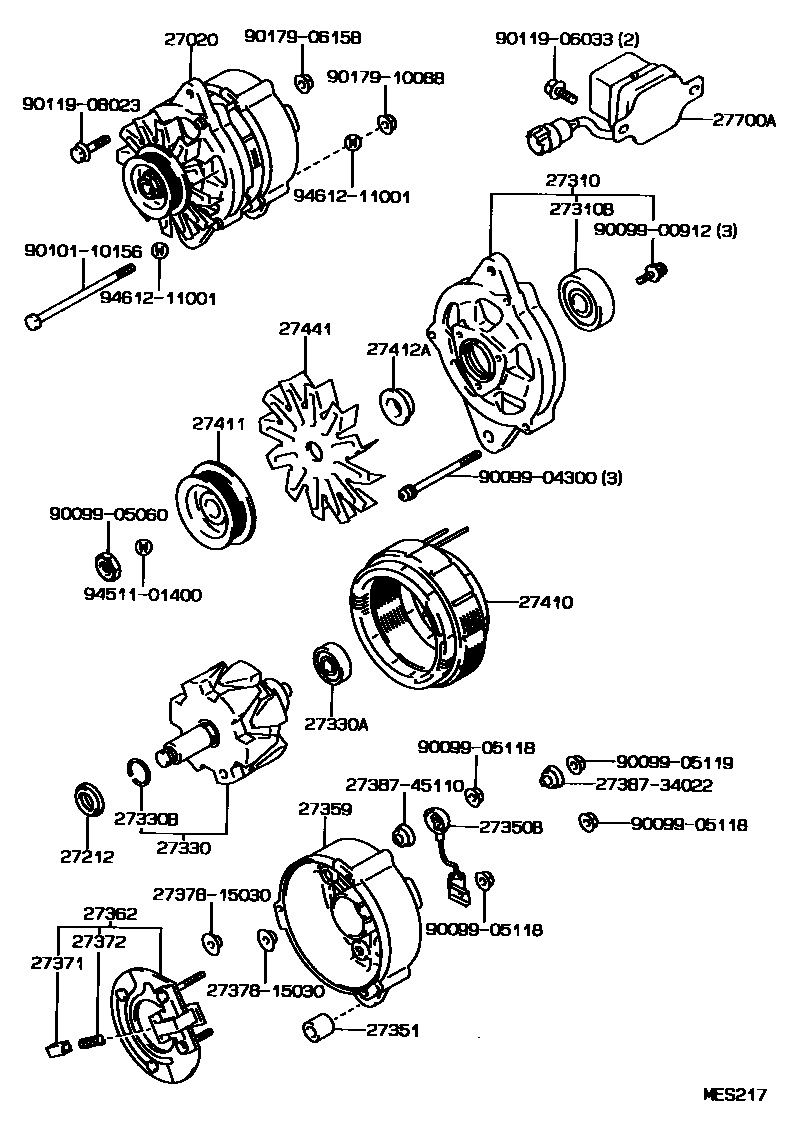

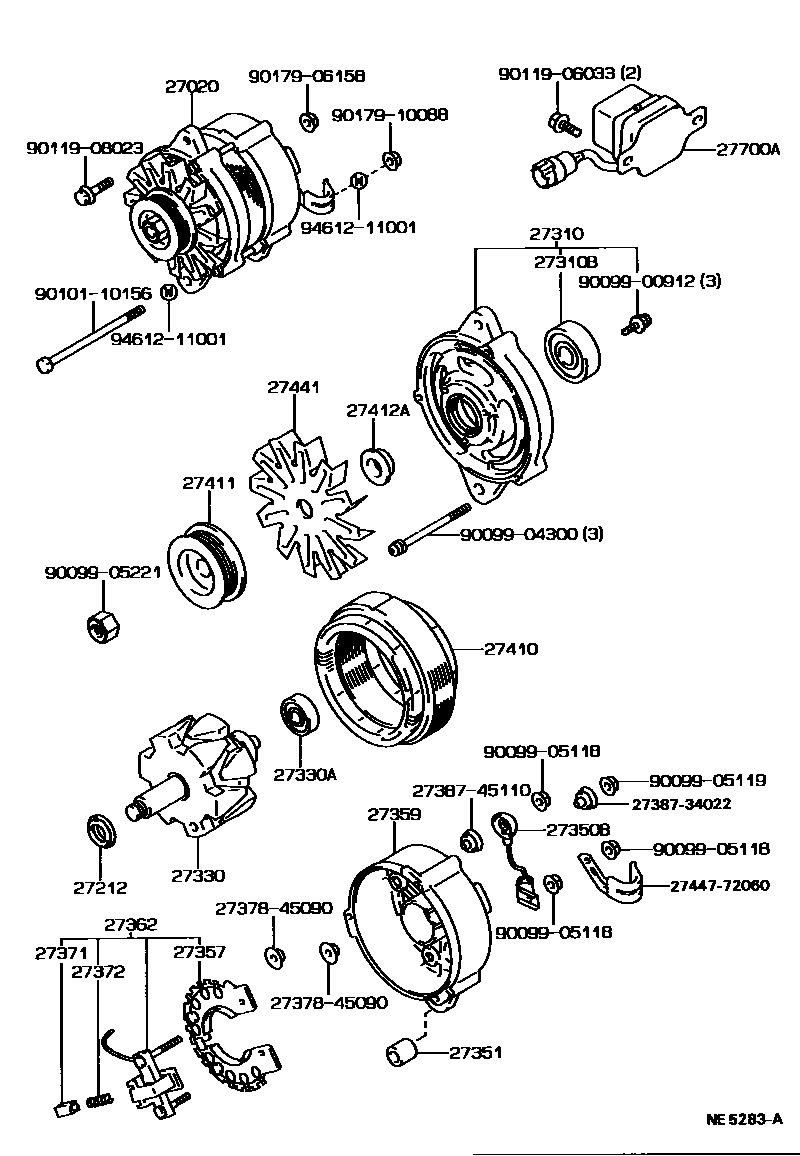

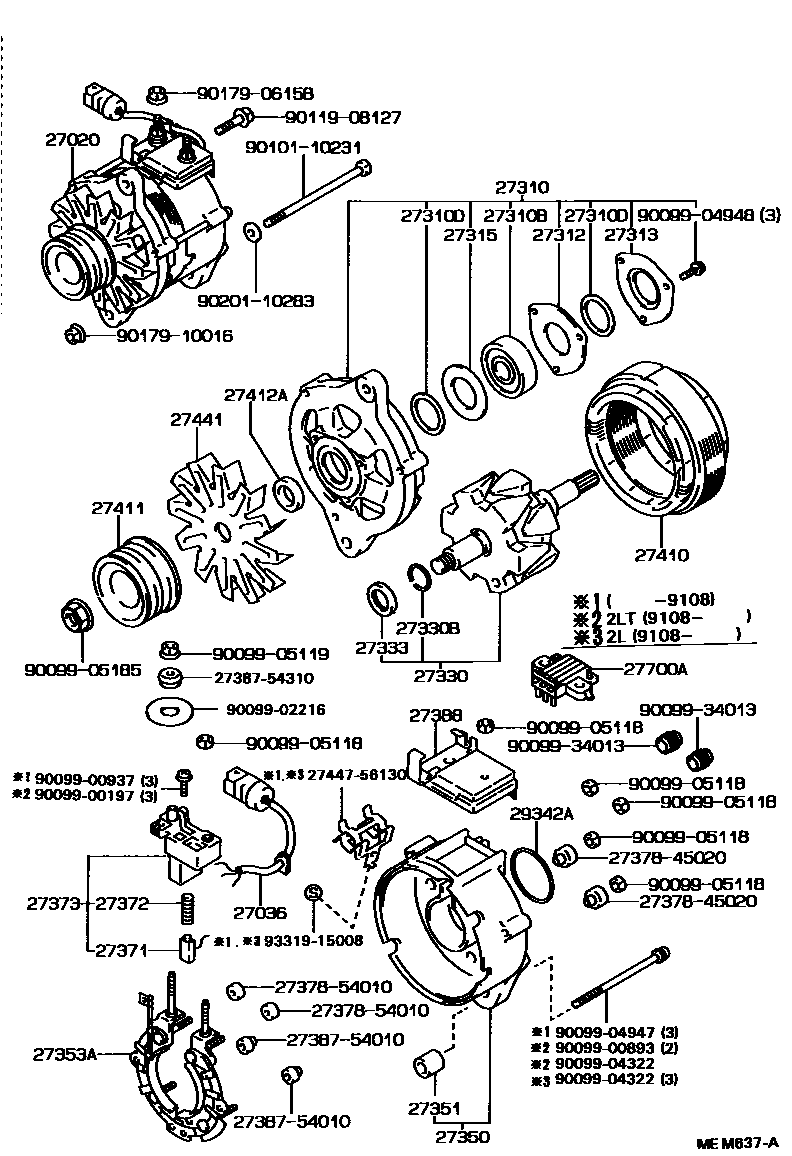

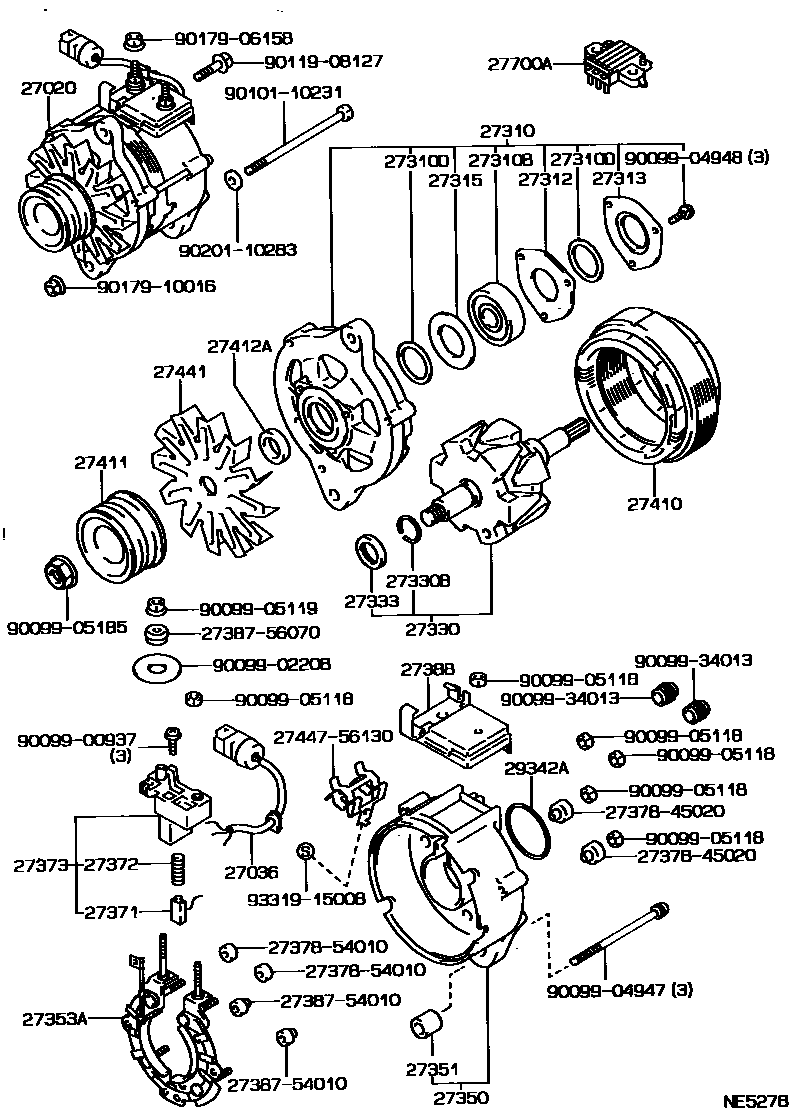

Toyota HILUX Alternator — Figure 1903
Toyota HILUX EPC diagram 1903, Alternator, with 6 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27020-54351 · 27020-54352 · 27020-54353 · 27020-54354 · 27020-72010 · 27020-72200 · 27060-04010 · 27060-54100 · 27060-54101 |
| 27036 | Generator lead terminal sub-assembly | 27036-54250 · 27036-54310 |
| 27212 | Spacer ring (for generator rotor) | 27212-39050 · 27412-15150 |
| 27310 | Alternator Drive End Frame Assembly | 27310-54130 · 27310-54131 · 27310-72030 · 27310-72041 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90080-36057 · 90099-10137 · 90099-10142 |
| 27310D | Felt Pad Washer | 90099-02209 |
| 27311 | Generator drive end cover | 27311-04010 |
| 27312 | Retainer Plate | 27312-57060 |
| 27313 | Generator No. 2 felt pad inner cover | 27313-57060 |
| 27315 | Generator No. 1 felt pad inner cover | 27315-57060 |
| 27330 | Alternator Rotor Assembly | 27330-04010 · 27330-26050 · 27330-54270 · 27330-63010 · 27330-64010 · 27330-64011 · 27330-64170 |
| 27330A | Bearings (for generator rotor) | 90080-36056 · 90099-10116 |
| 27330B | Snap ring (for generator rotor) | 90099-07048 · 90099-07103 |
| 27333 | Isolation collar (for generator rotor) | 27333-57060 |
| 27350 | Rectifier end frame assembly | 27350-54130 |
| 27350B | generator capacitor | 90099-52065 |
| 27351 | Bushing (for generator rectifier end frame) | 27351-38051 · 27351-56013 |
| 27353A | Rectifier rack | 27353-04010 · 27353-64170 |
| 27357 | Generator rectifier frame | 27357-63011 · 27357-64060 |
| 27359 | Generator rectifier end frame | 27359-04010 · 27359-72010 · 27359-72030 |
| 27362 | Rectifier assembly with brushes | 27362-18011 · 27362-63011 |
| 27370 | Alternator Brush Holder Assembly | 27370-54250 |
| 27371 | Generator brushes | 27371-31011 · 27371-54412 · 27371-56070 |
| 27372 | Generator brush spring | 27372-31011 · 27372-56070 |
| 27373 | Generator A brush holder | 27373-64170 |
| 27388 | Generator brush cover | 27388-54311 · 27388-54320 · 27388-54341 · 27388-54342 |
| 27410 | Generator stator assembly | 27410-04010 · 27410-38120 · 27410-43040 |
| 27411 | Alternator Pulley | 27411-04010 · 27411-54350 · 27411-54351 · 27411-72040 |
| 27412A | Isolation collar (for generator drive end cover) | 27412-16030 · 27412-16040 · 27412-57060 |
| 27441 | generator fan | 27441-04010 · 27441-34030 · 27441-56090 · 27441-63030 · 27441-64030 |
| 27443 | Generator bearing cap | 27443-04010 |
| 27700A | Generator voltage regulator assembly | 27700-04010 · 27700-63010 · 27700-64040 · 27700-64110 · 27700-72030 |
| 29342A | Vacuum pump seals | 90099-14055 |
