Toyota HILUX vacuum tube — Figure 1708

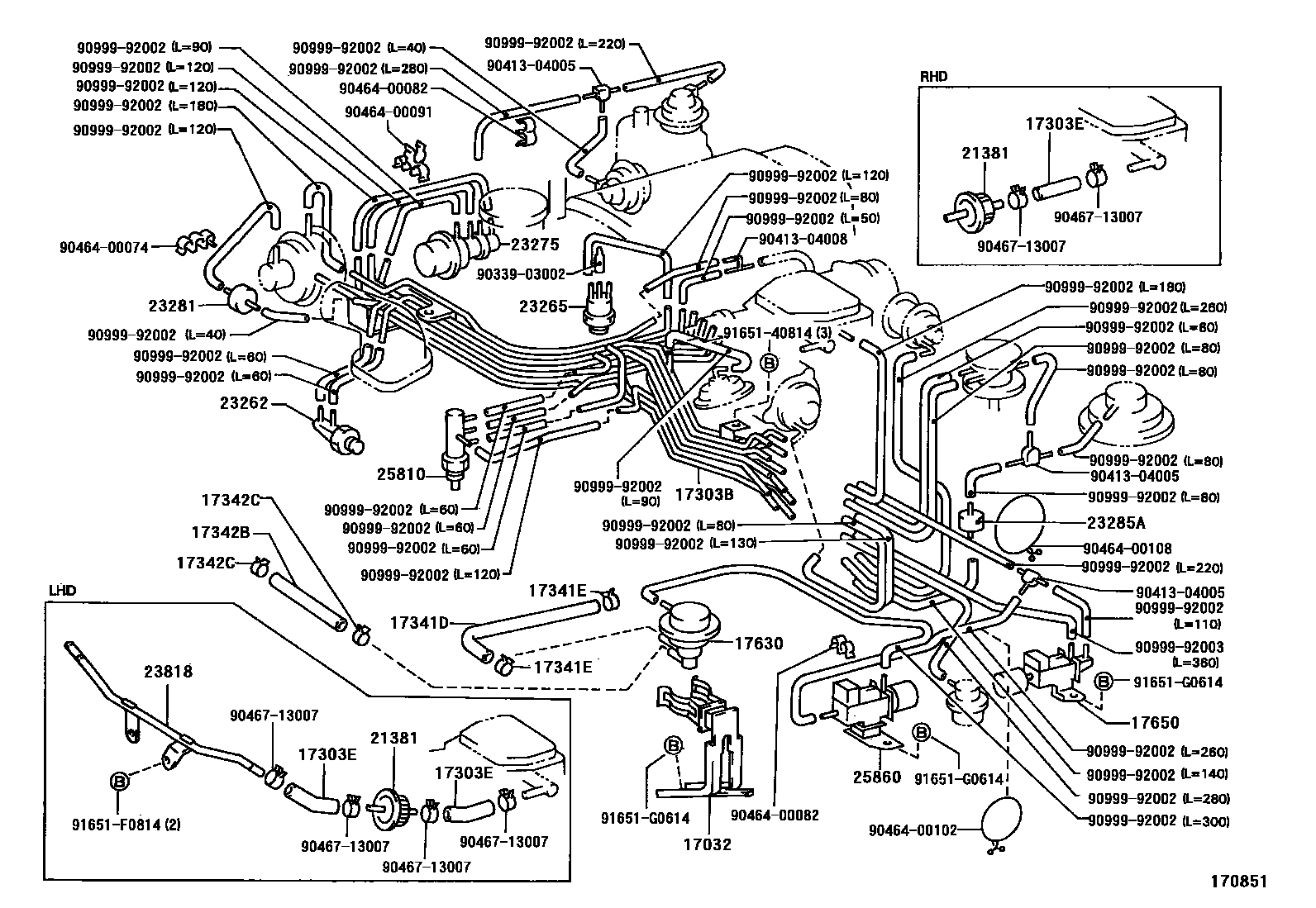

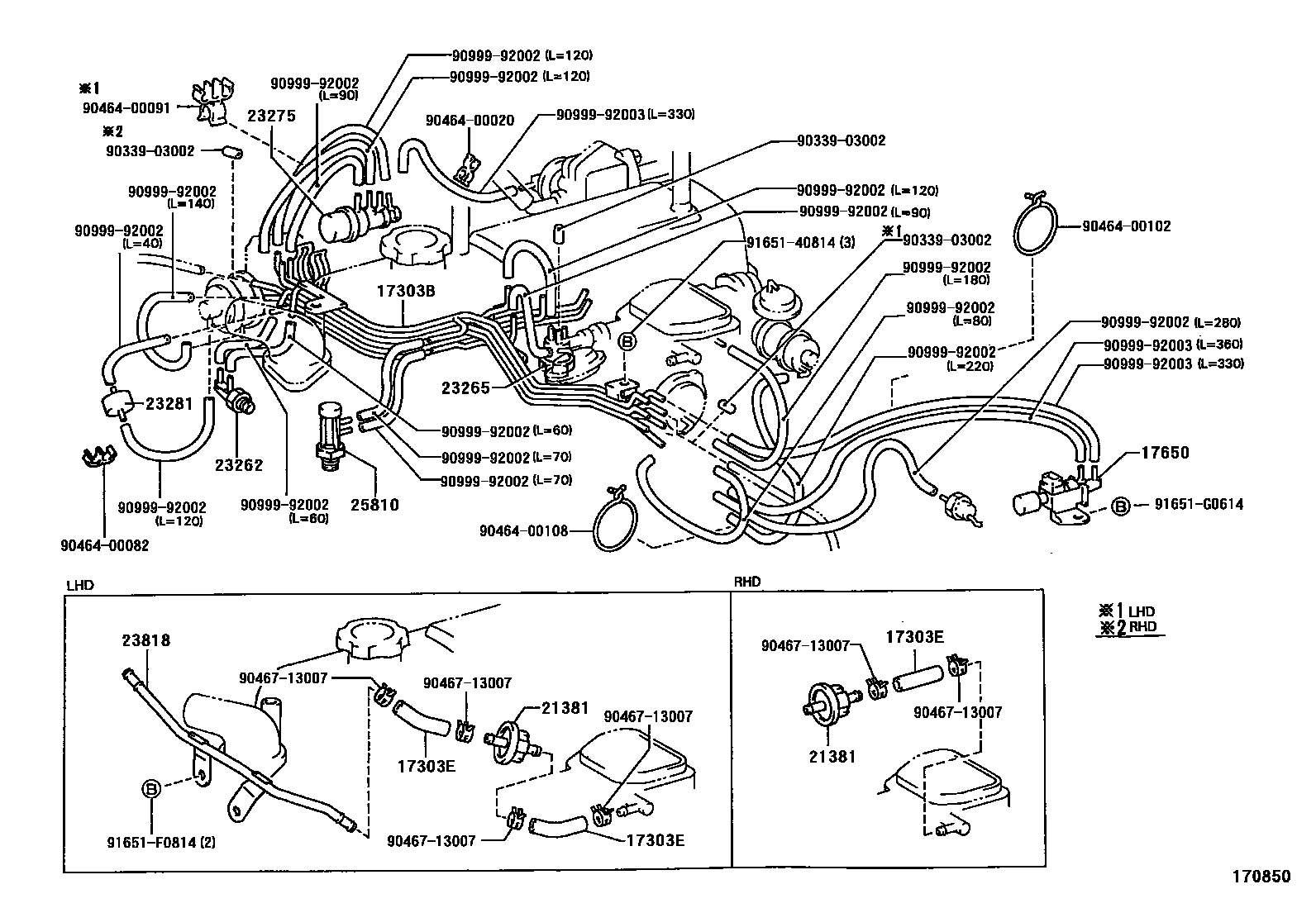

Toyota HILUX EPC diagram 1708, vacuum tube, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17032 | Air valve bracket sub-assembly | 17032-73010 |
| 17303B | No. 1 air pipe sub-assembly | 17303-73030 · 17303-73080 |
| 17303E | No. 1 hose (for air pipe) | 90445-14075 · 90445-14079 |
| 17341D | No. 1 hose (for idle boost) | 17341-73060 |
| 17341E | Clamp No. 1 (for idle lift hose) | 90467-15012 |
| 17342B | No. 2 hose (for idle boost) | 90445-16040 |
| 17342C | Clamp No. 2 (for idle lift hose) | 90467-15012 |
| 17630 | Air control valve assembly | 17300-73010 · 17300-73011 |
| 17650 | Vacuum switch valve assembly | 89570-35200 |
| 21381 | thermostat bimetal | 21381-71050 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05044 |
| 23265 | No. 1 gas filter | 90917-11024 · 90917-11027 |
| 23275 | Vacuum control valve No. 1 | 90925-03166 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01014 · 90925-01041 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23818 | Fuel vapor supply pipe | 23818-71011 · 23818-71012 |
| 25810 | Bimetal valve assembly | 25820-37010 · 90925-02077 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-73040 |
