Toyota HILUX Air Cleaner — Figure 1703

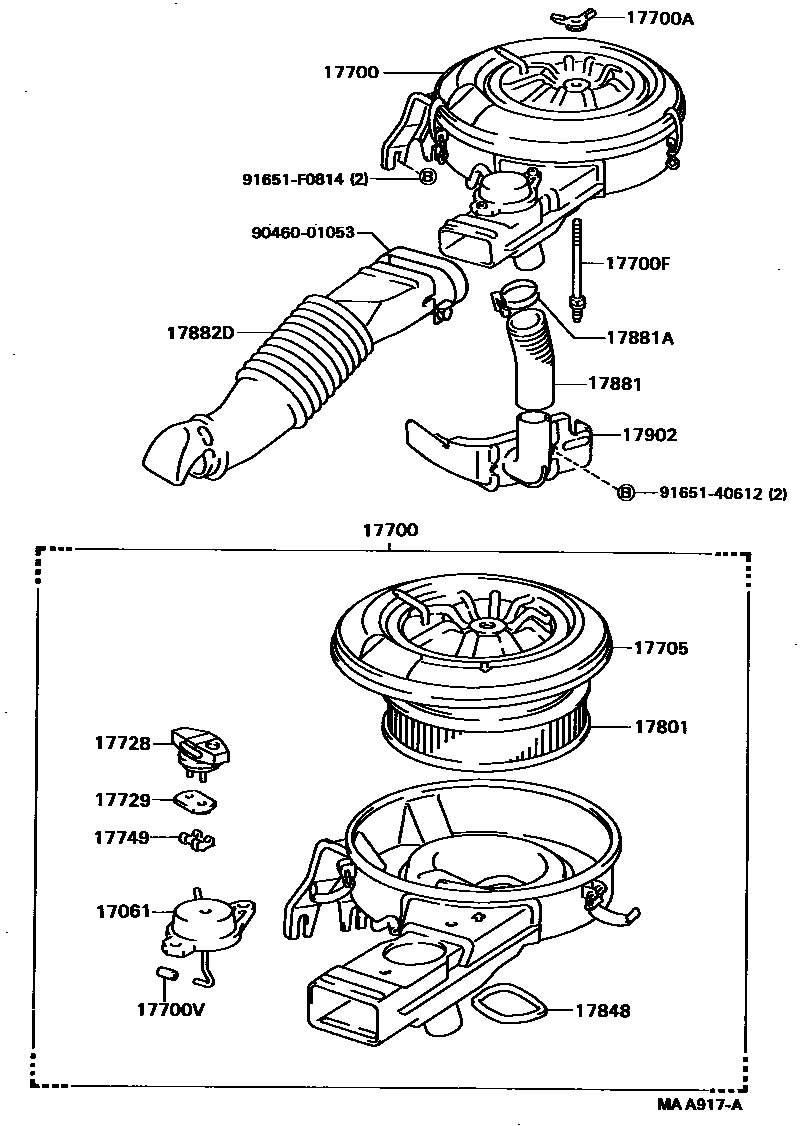

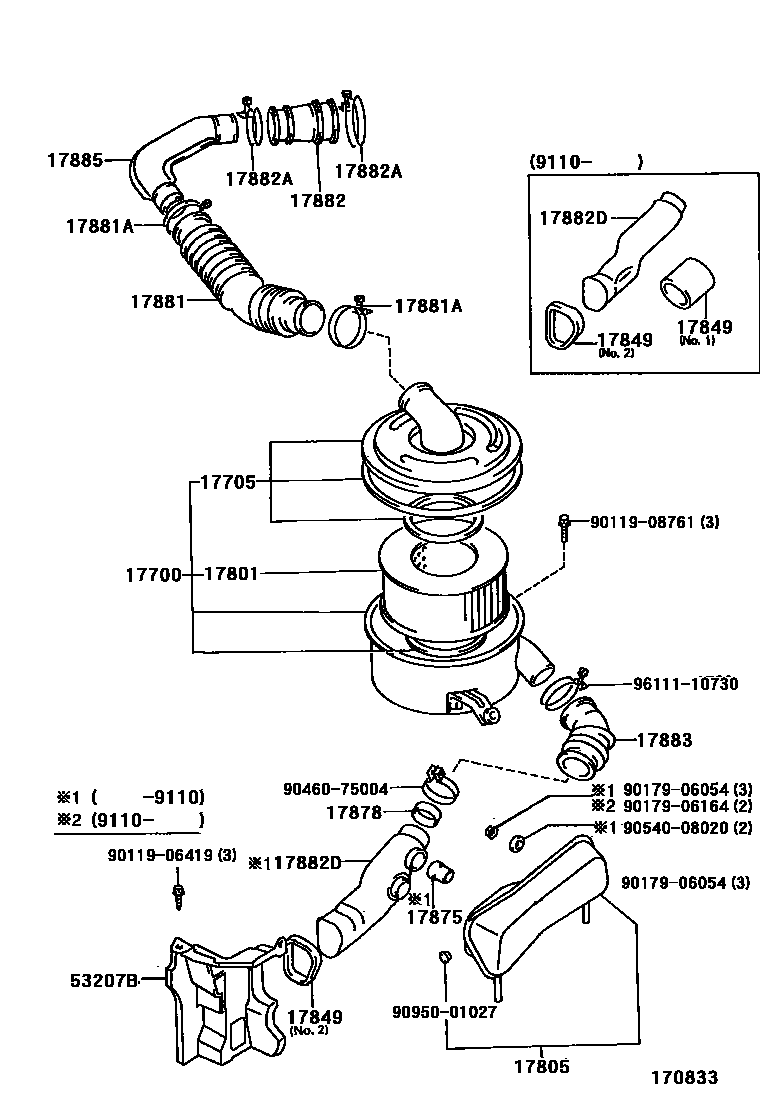

Toyota HILUX EPC diagram 1703, Air Cleaner, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-72010 |
| 17700 | air filter assembly | 17700-54480 · 17700-54620 · 17700-54621 · 17700-72160 · 17700-72200 · 17700-72201 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 |
| 17700F | Stud bolt (for securing air filter) | 90116-06024 |
| 17700V | Bushing (for air cleaner) | 90386-03001 |
| 17705 | Air filter cover sub-assembly | 17705-54250 · 17705-72080 |
| 17728 | thermostat valve | 17728-34010 |
| 17729 | thermostat valve gasket | 17729-34010 |
| 17749 | Thermostat valve bracket | 17749-34010 |
| 17801 | Air filter element sub-assembly | 17801-34060 · 17801-54060 |
| 17805 | Intake connecting pipe sub-assembly | 17805-35140 · 17805-89106 |
| 17848 | Gasket from air cleaner to carburetor | 17848-35010 |
| 17849 | Intake connecting pipe gasket | 17849-35090 · 17849-54020 · 17849-54040 · 17849-89109 |
| 17875 | Intake connecting pipe | 17875-04010 · 17875-89108 |
| 17878 | No. 3 air intake connecting pipe | 17878-04010 · 17878-89101 |
| 17881 | No. 1 air cleaner hose | 17881-16210 · 17881-54350 · 17881-74040 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10460 · 96111-10620 · 96111-10670 |
| 17882 | No. 2 air cleaner hose | 17882-54340 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10620 · 96111-10730 |
| 17882D | Cold air intake hose | 17882-04020 · 17882-04030 · 17882-35140 · 17882-89109 · 17882-89122 |
| 17883 | No. 3 air cleaner hose | 17883-04010 · 17883-89107 |
| 17885 | air cleaner tube | 17885-54180 |
| 17902 | No. 1 hot air intake sub-assembly | 17895-71010 · 17895-73050 |
| 53207B | Air conditioning pipe sub-assembly | 53207-04010 · 53207-89108 · 53207-89115 |
