Toyota HILUX Exhaust Pipe — Figure 1702

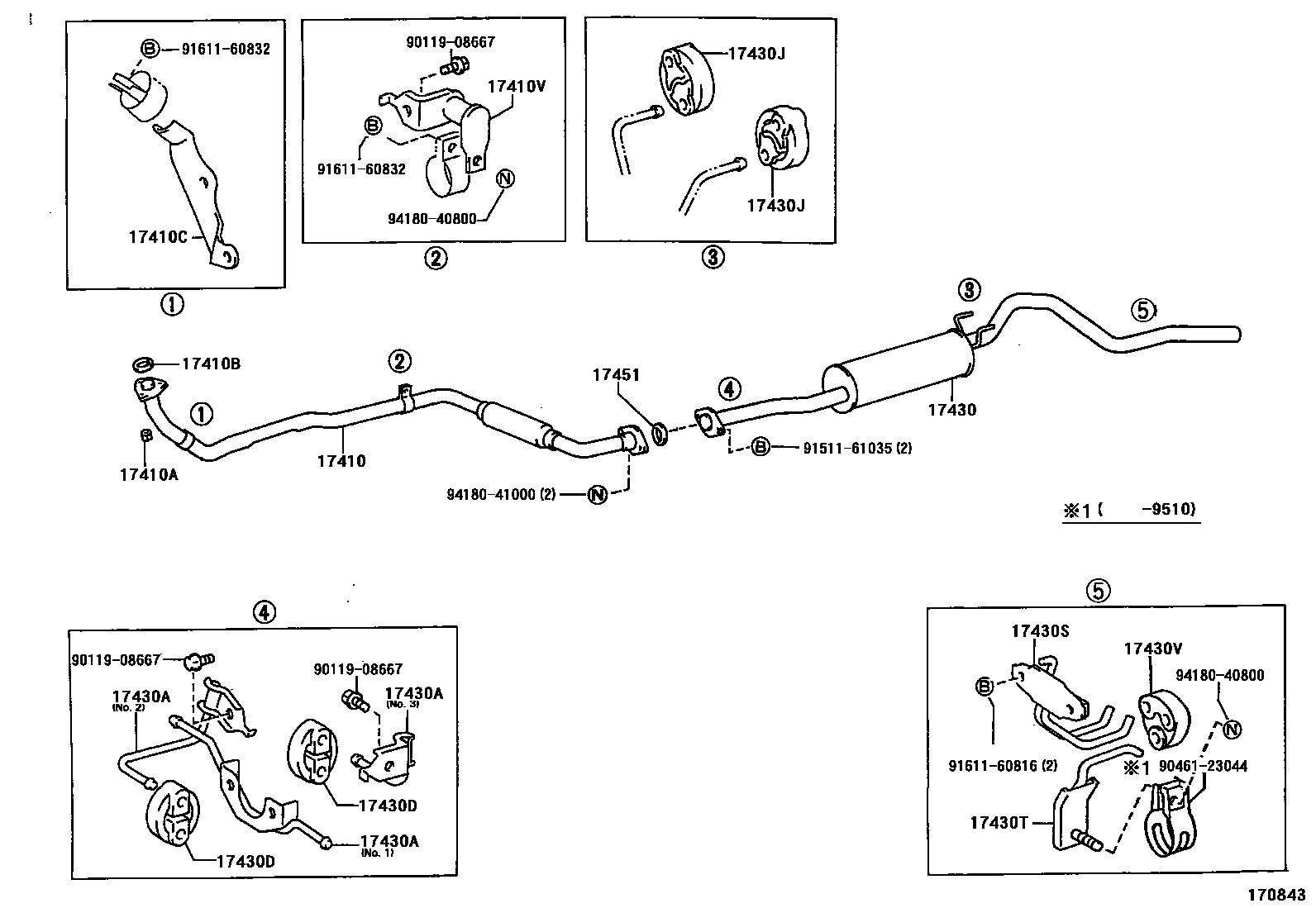

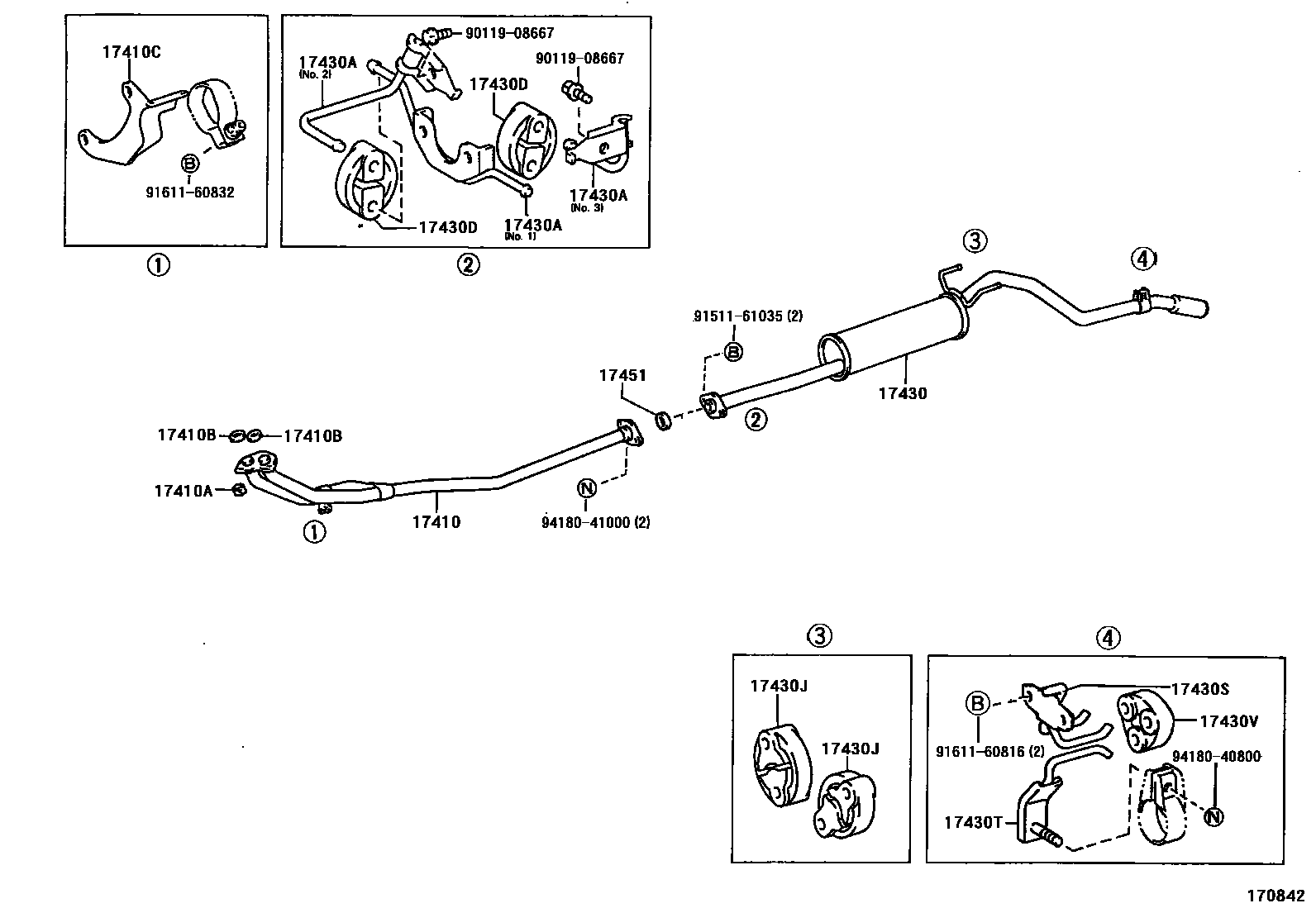

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-54670 · 17410-54671 · 17410-54672 · 17410-71130 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06038 · 90917-06042 · 90917-06066 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-54330 · 17571-71050 |
| 17410V | Front exhaust pipe bracket (for rear) | 17572-54080 |
| 17430 | Exhaust tailpipe assembly | 17430-5B040 · 17430-5B041 · 17430-5B042 · 17430-5B043 · 17430-5B830 · 17430-72240 |
| 17430A | Exhaust tailpipe bracket (for front) | 17503-35060 · 17503-71010 · 17587-35010 · 17588-35010 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 17563-35020 |
| 17430J | Exhaust tailpipe bolt or ring (for center) | 17565-35010 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17575-71030 |
| 17430T | Exhaust tailpipe cushion (for rear) | 17585-71010 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 17566-35010 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06039 · 90917-06045 |
