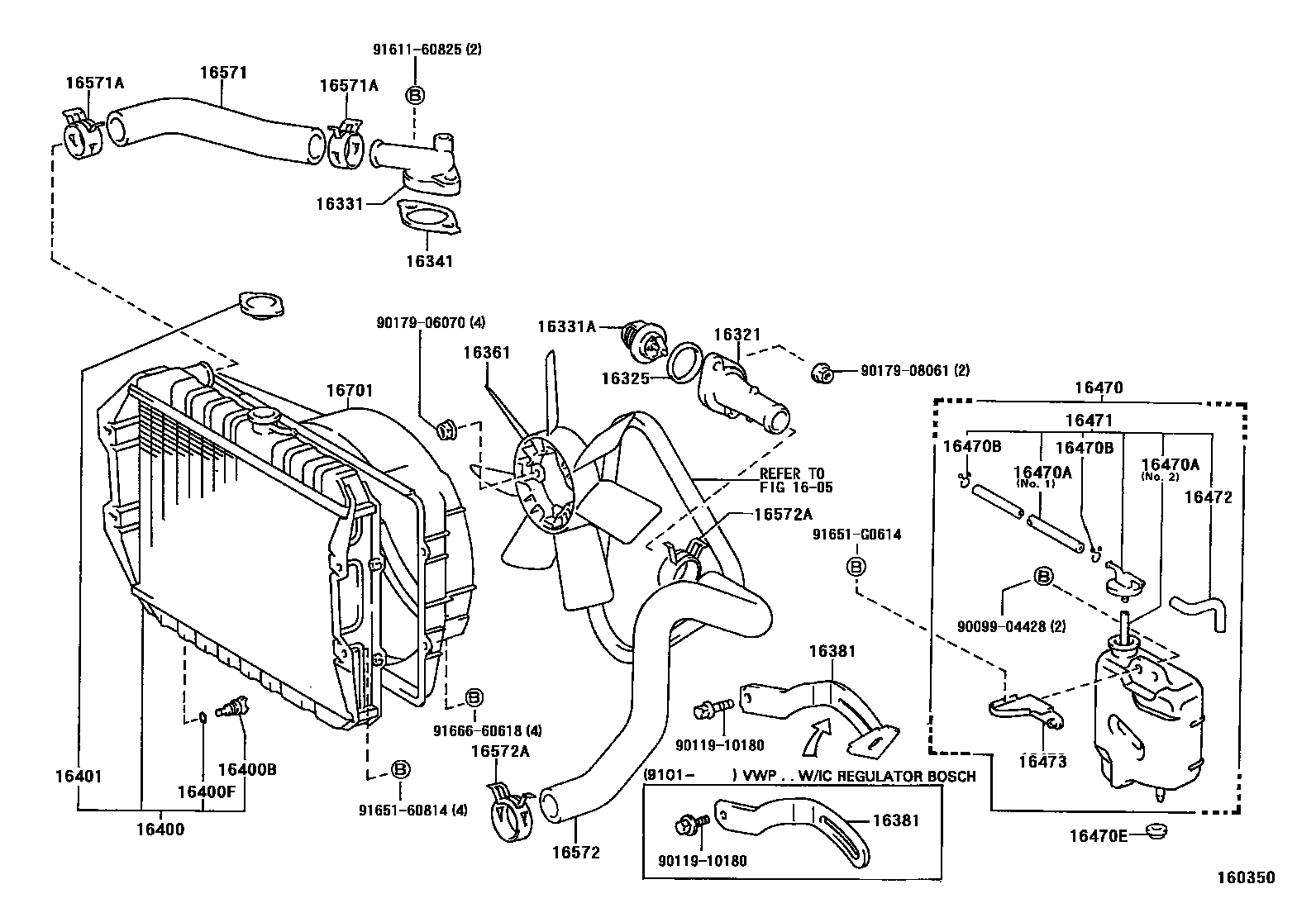

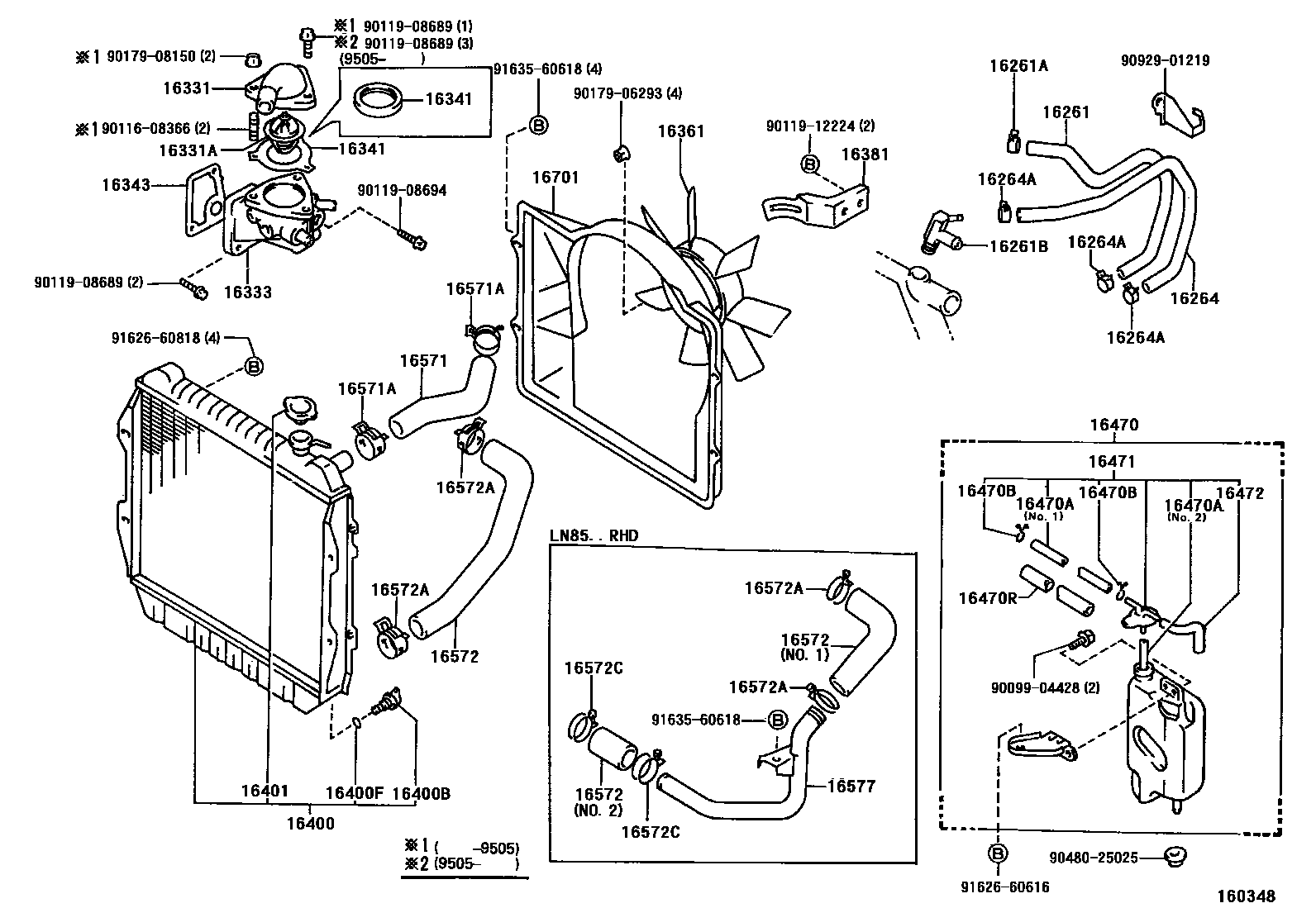

Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603
Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-54080 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-15004 · 90467-15022 |
| 16261B | Connector (for water bypass hose) | 90404-54037 · 90404-54040 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-54070 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-15004 · 90467-15022 |
| 16321 | water inlet | 16321-71010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 · 16325-63011 |
| 16331 | Water outlet | 16331-54090 · 16331-71010 |
| 16331A | thermostat | 16340-54010 · 90916-03046 · 90916-03069 · 90916-03072 · 90916-03099 |
| 16333 | Water outlet shell | 16303-54030 · 16333-54111 · 16333-54112 · 16333-54113 |
| 16341 | GASKET, WATER OUTLET | 16341-35010 · 16341-54030 · 16341-54040 · 16341-71010 · 16341-71011 |
| 16343 | Outlet shell gasket | 16343-54030 · 16343-54040 |
| 16361 | Fan | 16361-38010 · 16361-54020 |
| 16381 | Fan belt adjustment lever | 16381-54060 · 16381-71010 · 16381-72010 |
| 16400 | Radiator assembly | 16400-04010 · 16400-04020 · 16400-04030 · 16400-04040 · 16400-04050 · 16400-54610 · 16400-71071 |
| 16400B | Radiator drain switch screw plug | 90910-09054 |
| 16400F | Seal (for radiator drain switch) | 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-63010 |
| 16470 | Radiator reservoir assembly | 16470-35100 · 16470-54120 · 16470-72030 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470E | Radiator reservoir hose gasket | 90480-25025 |
| 16470R | No. 2 hose (for radiator reservoir) | 16483-55020 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-54180 · 16405-71010 |
| 16472 | Breather hose | 85338-71030 |
| 16473 | Bracket (for radiator reservoir) | 16473-35100 |
| 16571 | Radiator water inlet hose | 16571-54270 · 16571-71030 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-37003 |
| 16572 | Radiator outlet hose | 16572-54250 · 16572-54390 · 16572-71031 · 16573-54100 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-37002 · 90467-37003 · 90467-41001 · 91656-40818 |
| 16572C | Hose clamp or clip (for radiator outlet No. 2) | 90467-37002 |
| 16577 | Radiator pipe No. 7 | 16577-54150 |
| 16701 | Fan cover sub-assembly | 16711-54260 · 16711-54410 · 16711-71030 |
