Toyota HILUX Oil Filter — Figure 1502

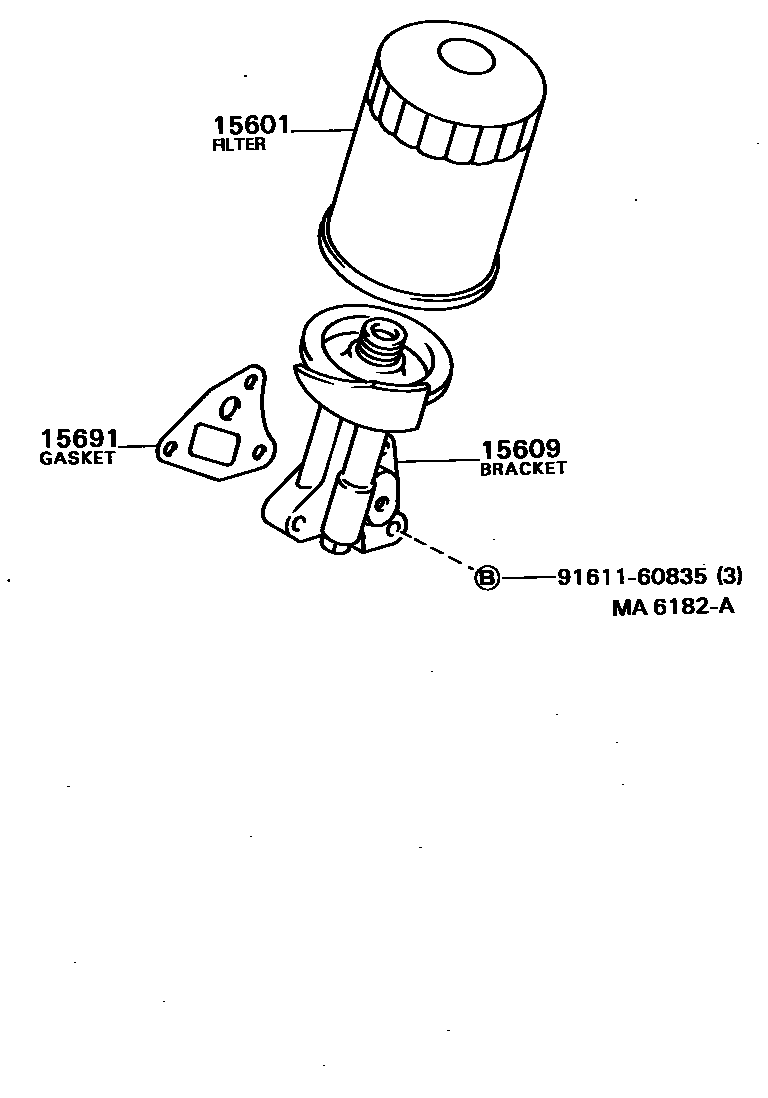

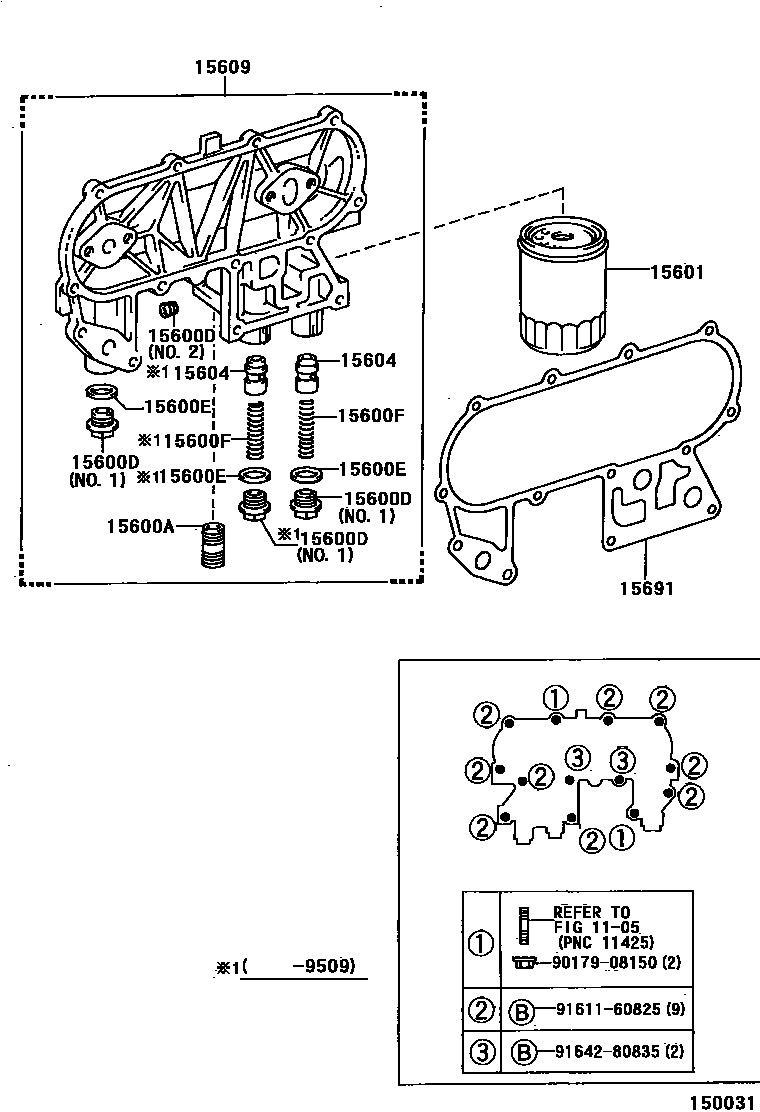

Toyota HILUX EPC diagram 1502, Oil Filter, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15600A | Connector (for oil filter) | 15116-54020 · 15116-54021 |
| 15600D | Screw plug (for oil filter) | 90072-34402 · 90341-18015 · 90344-51005 |
| 15600E | Gasket (for oil filter) | 90430-18001 · 90430-18011 · 90430-18021 · 90430-18029 |
| 15600F | Compression spring (for oil filter) | 90501-16026 |
| 15601 | Oil filter sub-assembly | 15601-33021 · 90915-03006 · 90915-10002 · 90915-30002 |
| 15604 | Oil safety valve sub-assembly | 15131-54010 |
| 15609 | Oil filter bracket sub-assembly | 15609-54071 · 15609-54072 · 15609-71011 · 15671-73020 |
| 15691 | oil filter gasket | 15691-71010 · 15691-71011 · 15692-54030 |
