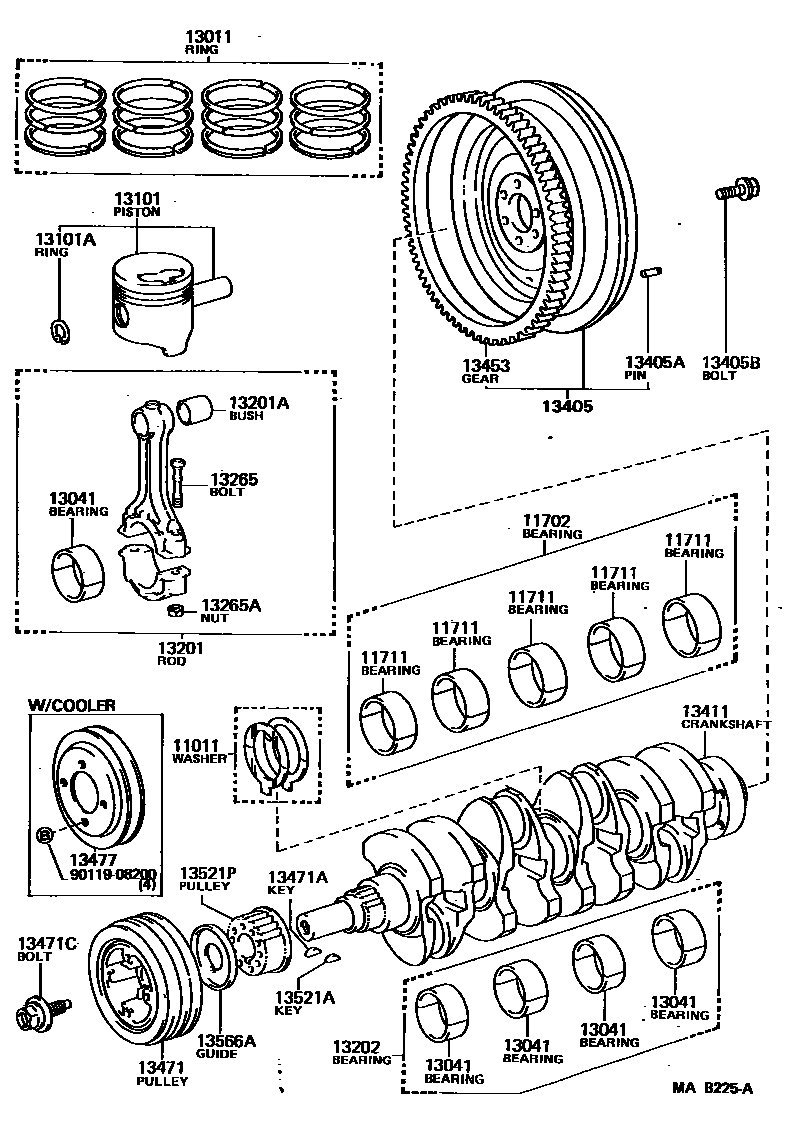

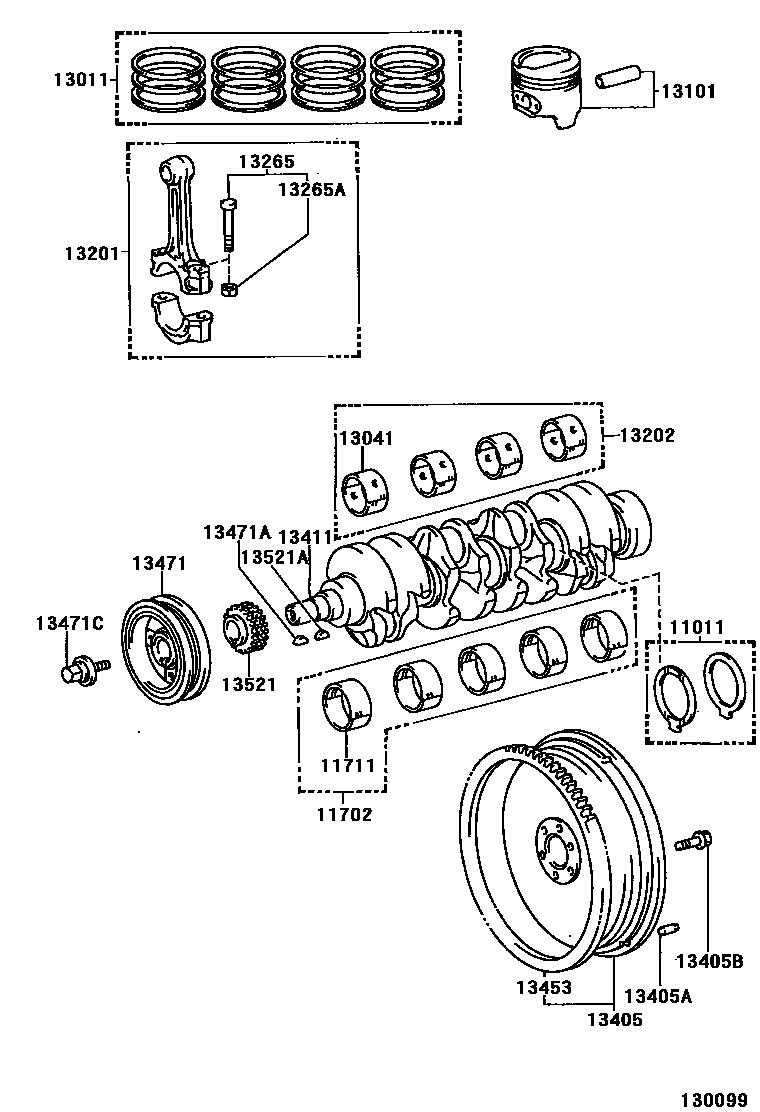

Toyota HILUX Crankshaft & Piston — Figure 1301
Toyota HILUX EPC diagram 1301, Crankshaft & Piston, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-25010 · 11011-54020 · 11012-54020 · 11013-54020 |
| 11702 | crankshaft bearing assembly | 11704-54061 · 11704-71020 · 11705-54061 |
| 13011 | Piston ring assembly | 13011-54100 · 13011-71031 · 13011-71032 · 13011-71033 · 13013-54100 · 13013-71031 · 13013-71032 · 13013-71033 · 13014-54100 · 13014-71031 · 13014-71032 · 13014-71033 · 13015-54100 · 13015-71031 · 13015-71032 · 13015-71033 |
| 13101 | Piston sub-assembly with pin | 13103-54070 · 13103-72010 · 13104-54070 · 13104-72010 · 13105-54070 · 13105-72010 |
| 13101A | Bore snap ring (for piston pin) | 90521-29003 |
| 13201 | Connecting rod sub-assembly | 13201-59095 · 13201-71011 |
| 13201A | Bushing (for connecting rod small end) | 90999-73114 |
| 13202 | Connecting rod bearing assembly | 13204-54024 · 13204-71011 · 13205-54024 |
| 13265 | Connecting rod bolts | 13265-29025 · 13265-54020 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90170-09001 · 90179-10123 |
| 13405 | Flywheel sub-assembly | 13405-54060 · 13405-71010 · 13405-71011 |
| 13405A | Direct sales (for flywheel) | 90250-08054 |
| 13405B | Flywheel fixing bolt | 90105-10042 · 90105-12109 |
| 13411 | crankshaft | 13401-54040 · 13411-72010 |
| 13453 | flywheel ring gear | 13453-20010 · 13453-54010 |
| 13471 | crankshaft pulley | 13408-54070 · 13408-54080 · 13408-54090 · 13408-71010 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05005 · 90280-05010 · 95161-20622 · 95161-30622 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-14069 · 90119-14005 · 90119-14031 · 90901-19028 |
| 13477 | No. 2 crankshaft pulley | 88451-35030 |
| 13521 | Crankshaft timing gear or sprocket | 13521-33010 |
| 13521A | Key (for crankshaft timing gear) | 90280-05005 · 90280-05010 · 95161-20622 · 95161-30622 |
| 13521P | crankshaft timing pulley | 13521-54030 |
| 13566A | timing belt guide | 13566-54040 |
