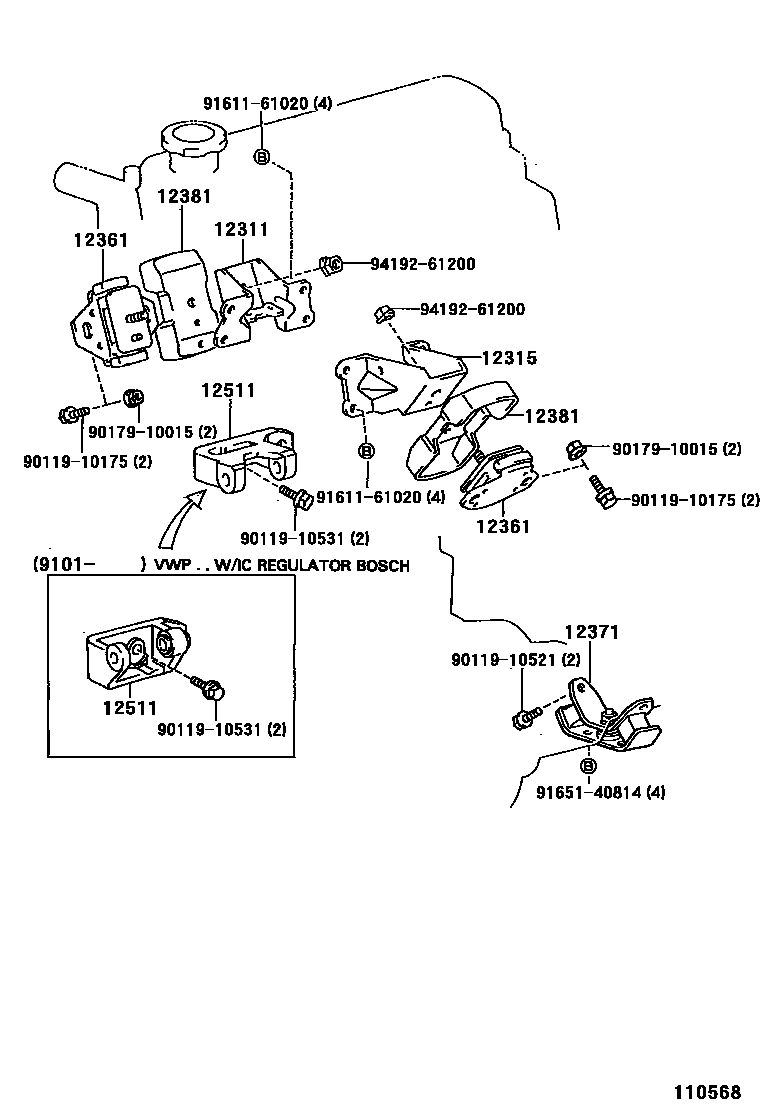

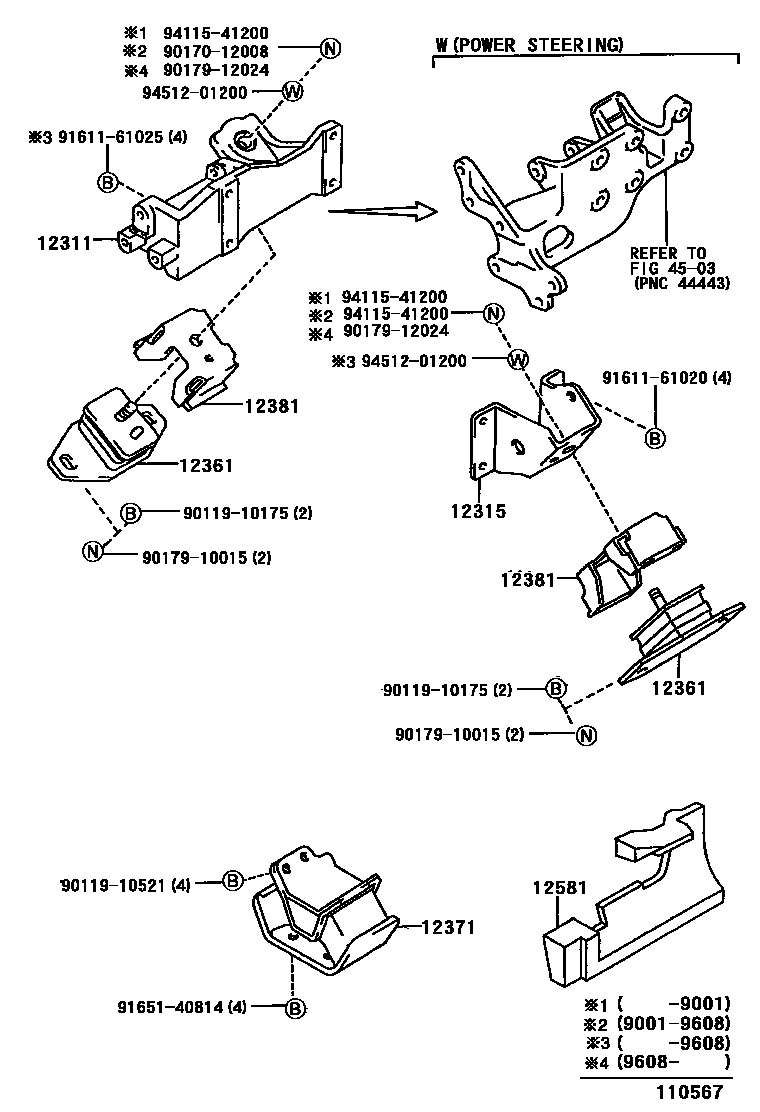

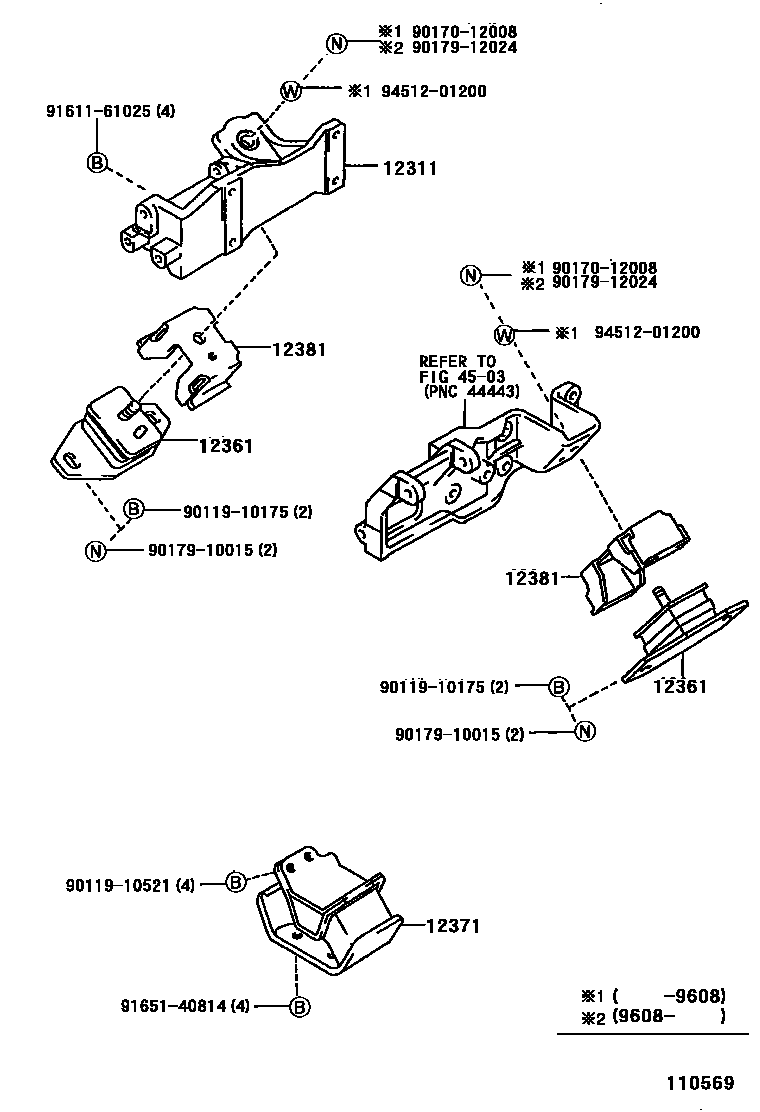

Toyota HILUX Engine Mounting — Figure 1107
Toyota HILUX EPC diagram 1107, Engine Mounting, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12311-54090 · 12311-54091 · 12311-71010 |
| 12315 | Engine No. 1 left front suspension bracket | 12312-54021 · 12315-71010 |
| 12361 | Engine front mounting vibration isolation pad | 12361-35050 · 12361-54110 · 12361-54111 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-34030 · 12371-35070 |
| 12381 | engine mount stabilizer bar | 12381-54010 · 12381-73010 |
| 12511 | No. 1 generator bracket | 12501-72010 · 12511-71010 |
| 12581 | No. 1 cylinder block vibration isolation pad | 12581-54010 |
