Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106

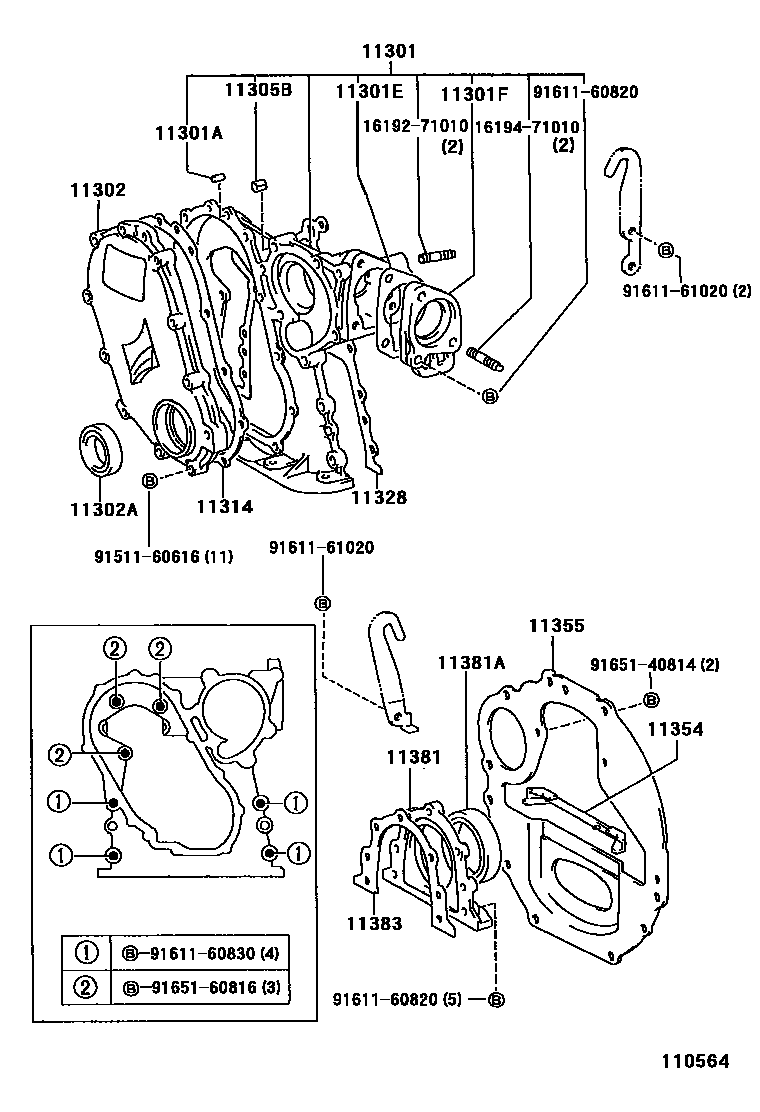

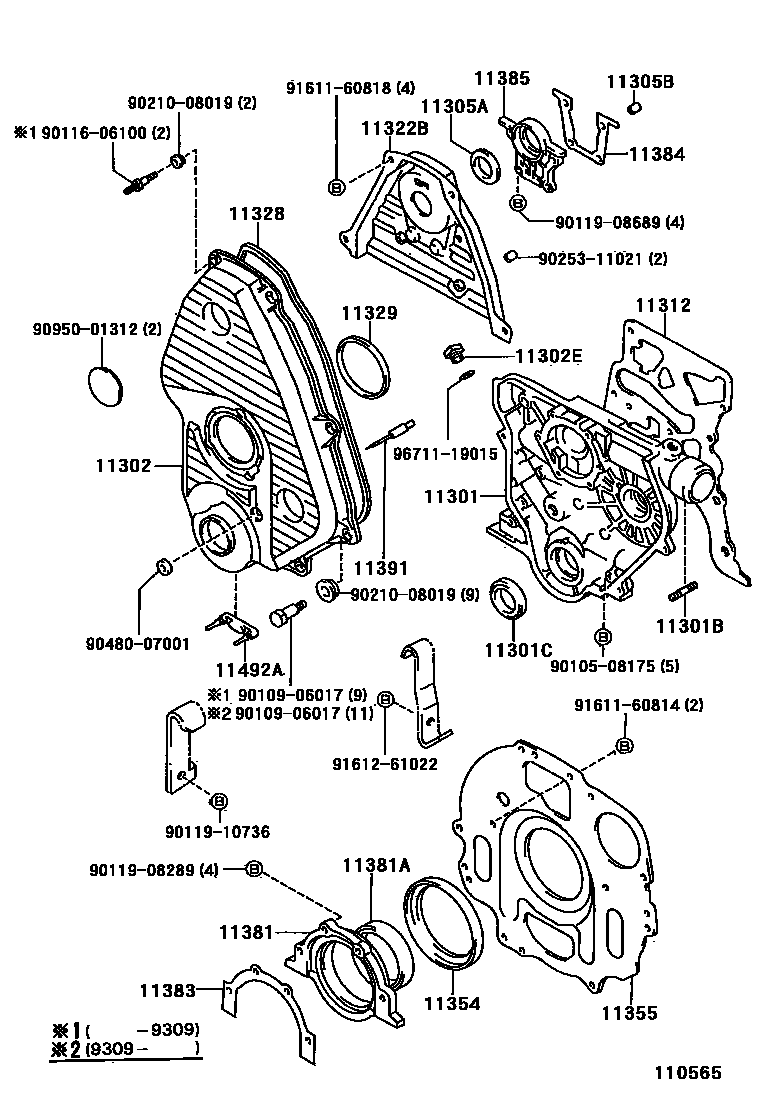

Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301 | Timing gearbox sub-assembly | 11301-71010 · 11311-54050 · 11311-54051 · 11311-54052 |
| 11301A | Direct sales (for timing gearbox) | 90250-06001 |
| 11301B | Stud bolts (for timing gearbox) | 92132-60828 |
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-42012 · 90311-42026 · 90311-42030 · 90311-42031 |
| 11301E | thermostat duct gasket | 16119-71010 · 16119-71011 |
| 11301F | water pump thermostat guide plate | 16128-71010 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11321-54020 · 11321-71010 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90311-42019 |
| 11302E | Straight screw plug (for timing gear cover) | 90341-18004 |
| 11305A | Oil seal (for No. 2 oil seal seat ring) | 90311-32001 · 90311-32017 |
| 11305B | Ring pin (for No. 2 oil seal seat ring) | 16159-71010 · 90253-11021 |
| 11312 | front panel gasket | 11312-54021 |
| 11314 | No. 2 timing chain cover gasket | 11329-71010 · 11329-71011 |
| 11322B | No. 2 timing belt cover | 11322-54020 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-54020 · 11328-54021 · 11328-71011 · 11328-71012 |
| 11329 | Timing gear rear cover gasket | 11329-54020 · 11329-54021 |
| 11354 | Flywheel housing dust seal | 11354-54010 · 11354-71010 |
| 11355 | rear end plate | 11355-54030 · 11355-71010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-54020 · 11381-71010 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-80003 · 90311-80009 · 90311-85004 · 90311-85006 · 90311-85007 |
| 11383 | Engine rear oil seal seat gasket | 11383-25010 · 11383-54020 · 11383-54030 · 11383-71010 |
| 11384 | No. 2 oil seal seat ring gasket | 11384-54020 · 11384-54030 |
| 11385 | Camshaft oil seal race | 11382-54020 |
| 11391 | Timing pointer | 11391-54020 |
| 11492A | coolant sealing plate | 11492-54010 |
