Toyota HILUX Cylinder Head — Figure 1104

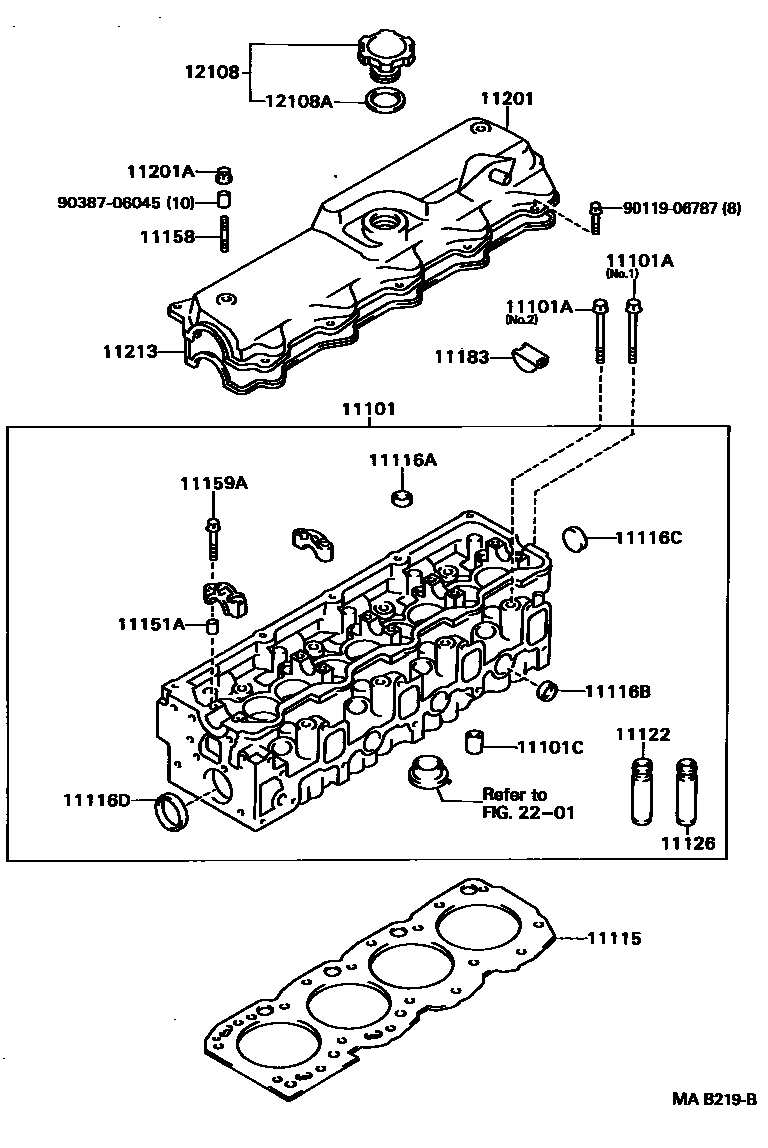

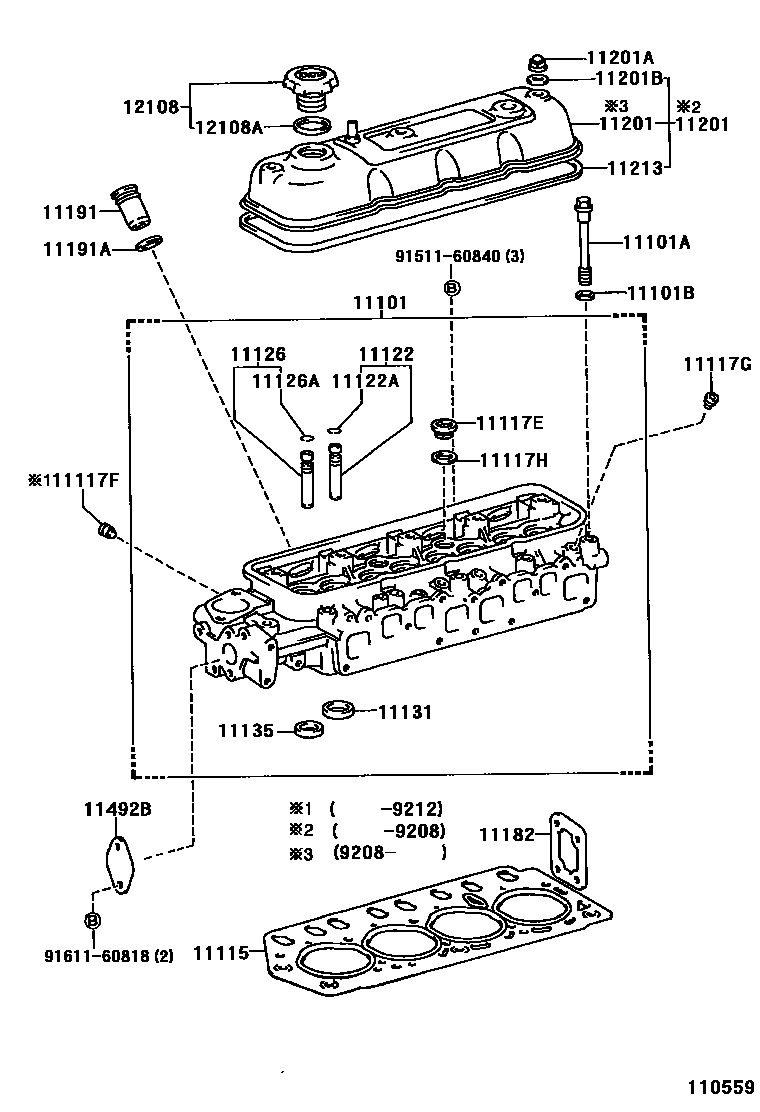

Toyota HILUX EPC diagram 1104, Cylinder Head, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-54110 · 11101-54111 · 11101-71010 · 11101-71011 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90105-12056 · 90910-02080 · 90910-02081 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-13021 |
| 11101C | Nozzle (for cylinder head) | 90440-15003 |
| 11115 | GASKET, CYLINDER HEAD | 11115-71011 · 11115-73040 · 11115-73041 |
| 11116A | No. 1 sealing plug | 90331-08004 |
| 11116B | No. 2 sealing plug | 96411-42500 · 96411-62500 |
| 11116C | No. 3 sealing plug | 96411-43000 · 96411-63000 |
| 11116D | No. 4 sealing plug | 96411-44500 · 96411-64500 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-20002 |
| 11117F | No. 2 headed straight thread plug | 90340-16002 |
| 11117G | No. 3 headed straight thread plug | 90340-18005 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-54020 · 11122-71020 · 11123-54020 · 11123-71020 |
| 11122A | Shaft snap ring (for valve guide bushing) | 90520-12049 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-54020 · 11123-54020 · 11126-71020 · 11127-71020 |
| 11126A | Shaft snap ring (for valve guide bushing) | 90520-12049 |
| 11131 | intake valve seat | 11131-63010 · 11132-63010 |
| 11135 | Exhaust valve seat | 11135-71010 · 11136-71010 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-11021 |
| 11158 | STUD (FOR CYLINDER HEAD TO HEAD COVER) | 90116-06089 · 92122-80616 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-08166 |
| 11182 | Rear cylinder head gasket | 11182-71010 · 11182-71011 |
| 11183 | PLUG, SEMICIRCULAR | 11183-54020 |
| 11191 | spark plug sleeve | 11191-22010 |
| 11191A | Gasket (for spark plug bushing) | 90430-31141 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-71011 · 11201-79035 · 11210-54040 · 11210-54041 |
| 11201A | Cap nut (for cylinder head cover) | 90176-08007 · 90179-06171 · 90179-06319 |
| 11201B | Gasket (for cylinder head cover) | 90210-09001 · 90210-09019 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-54050 · 11213-71020 |
| 11492B | coolant sealing plate | 11492-71010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-61010 · 12180-70020 · 12180-73010 · 12180-73011 · 12180-75010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 12195-70010 · 12195-71020 · 12195-73010 |
