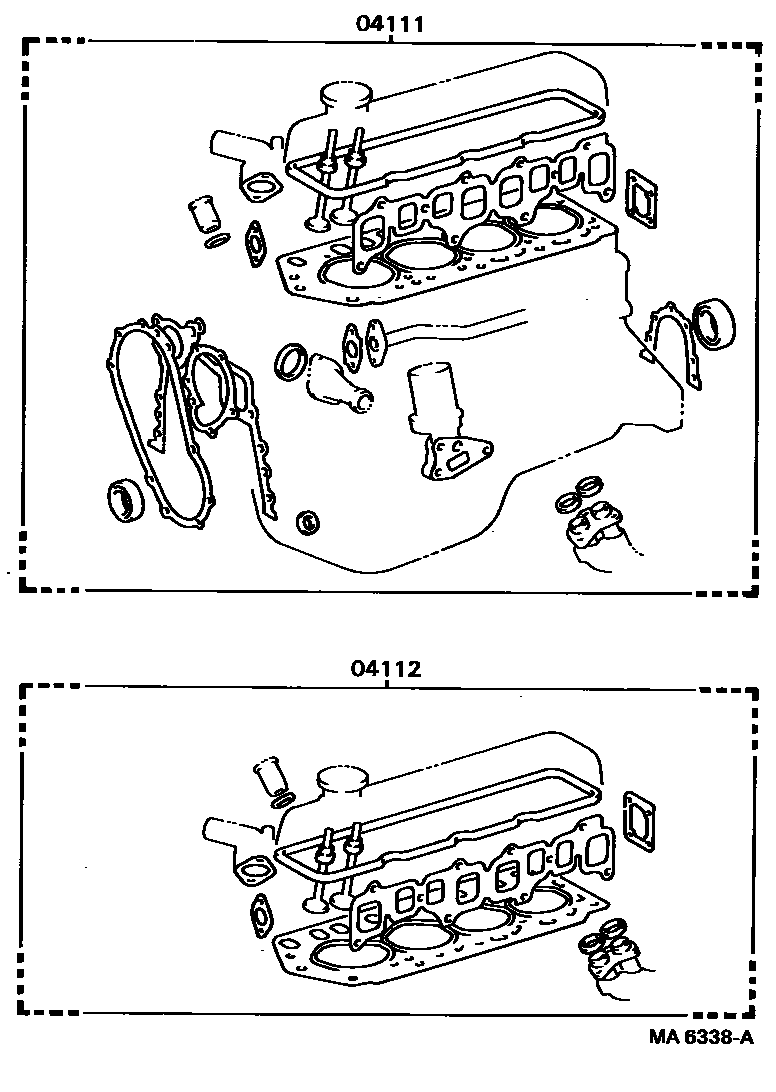

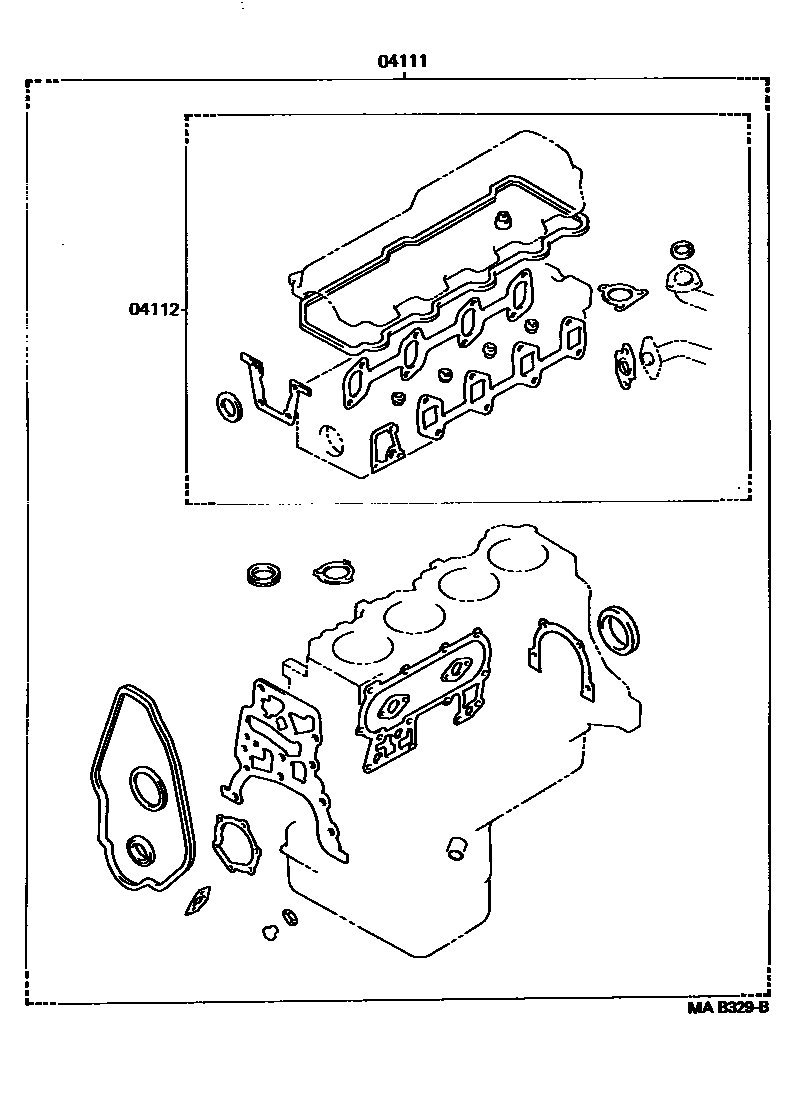

Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103
Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-54080 · 04111-54081 · 04111-54082 · 04111-54083 · 04111-72013 · 04111-72014 · 04111-72015 · 04111-72016 |
| 04112 | Engine valve grinding pad assembly | 04112-54070 · 04112-54071 · 04112-72013 · 04112-72014 · 04112-72015 · 04112-72016 |
