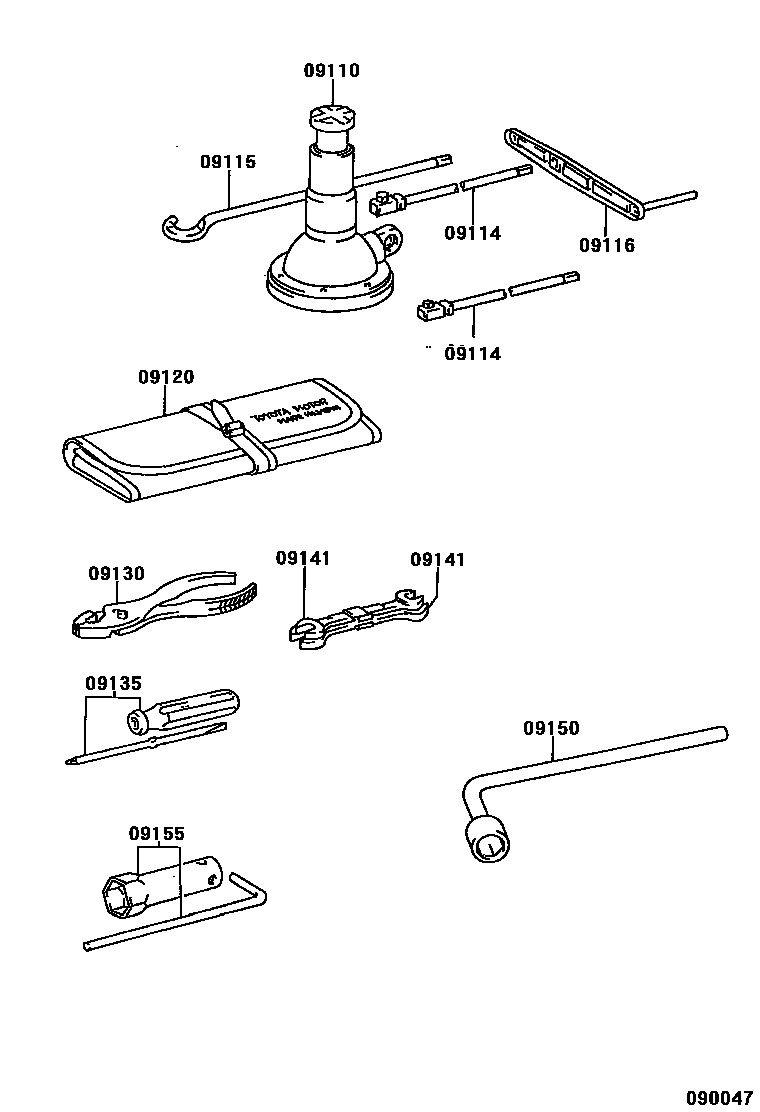

Toyota HILUX Standard Tools — Figure 0901
Toyota HILUX EPC diagram 0901, Standard Tools, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-89102 · 09111-89104 |
| 09114 | Jack Handle Extension Sub-Assembly | 09114-35031 · 09114-89101 |
| 09115 | Jack Handle Rod Sub-Assembly | 09115-89101 |
| 09116 | Jack Handle Rod | 09116-35031 · 09116-35060 |
| 09120 | Tool Bag | 09120-26021 · 09120-35090 · 09120-35100 |
| 09130 | Pliers | 99913-11500 |
| 09135 | Screwdriver | 90080-99005 · 99915-10700 |
| 09141 | Wrench | 90080-99006 · 90080-99007 · 99914-10810 · 99914-11214 |
| 09150 | Wheel Nut Wrench | 09150-35020 · 09150-35040 · 09150-40010 |
| 09155 | Spark Plug Wrench | 09155-41010 · 09155-72010 |
