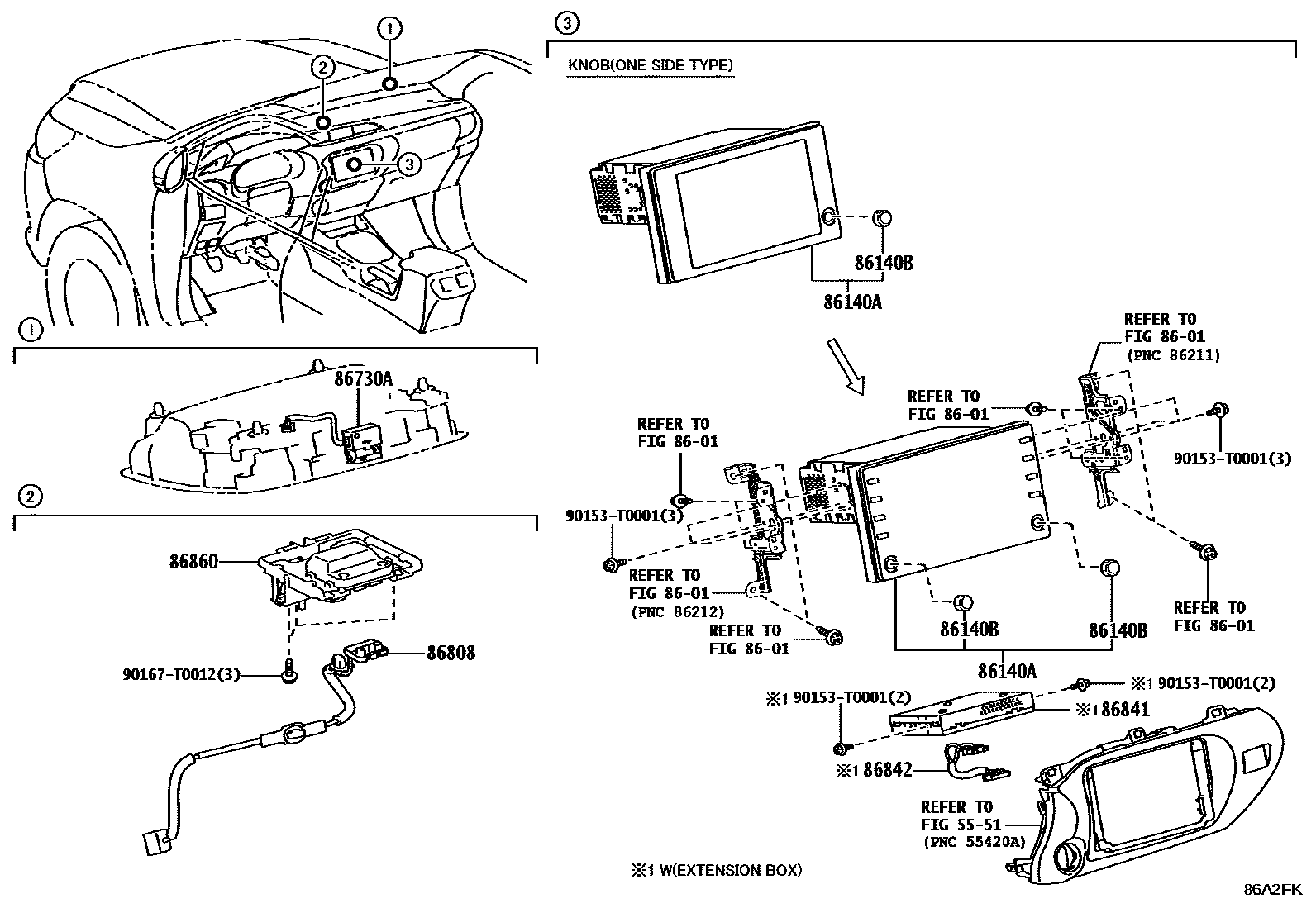

Toyota HILUX 导航和前监视器显示屏 — Figure 8603
Toyota HILUX EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86100-71021 · 86100-71041 · 86100-71051 · 86100-71052 · 86100-71061 · 86100-71062 · 86140-0KM90 · 86140-0KP74 · 86140-0KQ83 · 86140-0KT93 · 86140-71041 · 86140-71051 · 86140-71061 · 86140-71062 · 86140-71070 · 86140-71071 · 86140-71080 · 86140-71081 · 86140-71082 · 86140-71090 · 86140-71091 · 86140-F0150 · 86140-F0151 · 86140-F0841 |
| 86140B | Radio and display receiver switch button | 90010-24202 · 90011-25321 |
| 86730A | Telephone amplifier assembly | 86730-60050 · 86730-71050 · 86730-71060 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-0K051 · 86808-0K280 · 86808-0K330 · 86808-0K350 |
| 86841 | Navigation ECU | 86840-K0011 |
| 86842 | Navigation harness No. 1 | 86842-33150 |
| 86860 | Navigation antenna assembly | 86860-0K040 · 86880-0K070 · 86880-0K080 |
