Toyota HILUX 侧窗 — Figure 6152

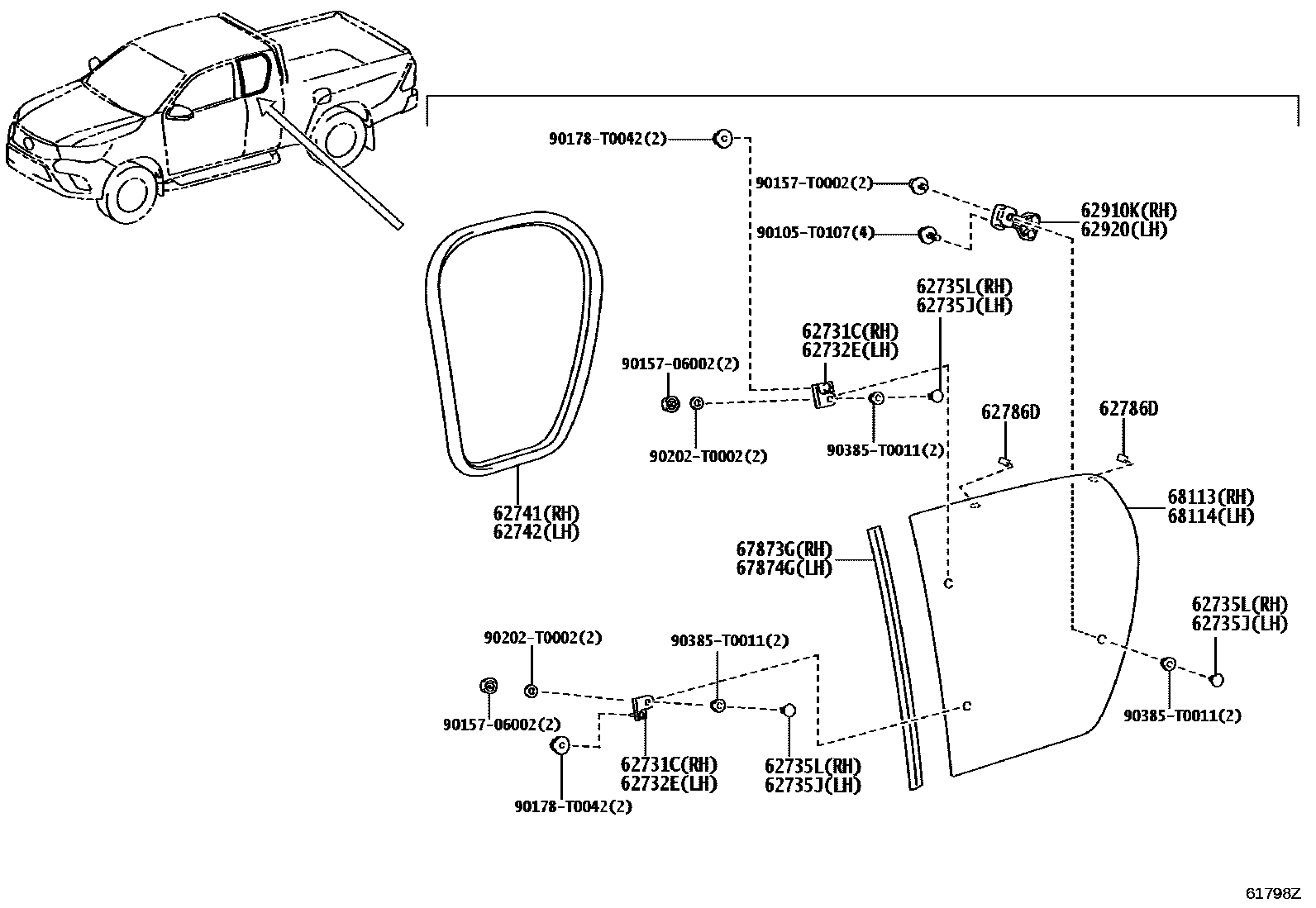

Toyota HILUX EPC diagram 6152, 侧窗, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62731C | Right corner window hinge | 62733-0K010 · 62733-0K020 |
| 62732E | Left corner window hinge | 62734-0K010 · 62734-0K020 |
| 62735J | Left corner window hinge fixing | 62735-0K040 · 62735-35010 |
| 62735L | Right corner window hinge fixing | 62735-0K040 · 62735-35010 |
| 62741 | Right corner window sealing strip | 62741-0K040 |
| 62742 | Left corner window sealing strip | 62741-0K040 |
| 62786D | 2nd corner window glass spacer | 62786-0K010 |
| 67873G | Right front corner window sealing strip | 67865-0K040 |
| 67874G | Left front corner window seal | 67866-0K040 |
| 68113 | Right corner window glass | 68113-0K280 · 68113-0K290 |
| 68114 | Left corner window glass | 68114-0K280 · 68114-0K290 |
