Toyota HILUX 侧梁 — Figure 6151

Toyota HILUX EPC diagram 6151, 侧梁, with 9 images and 40 PNC and OE references.

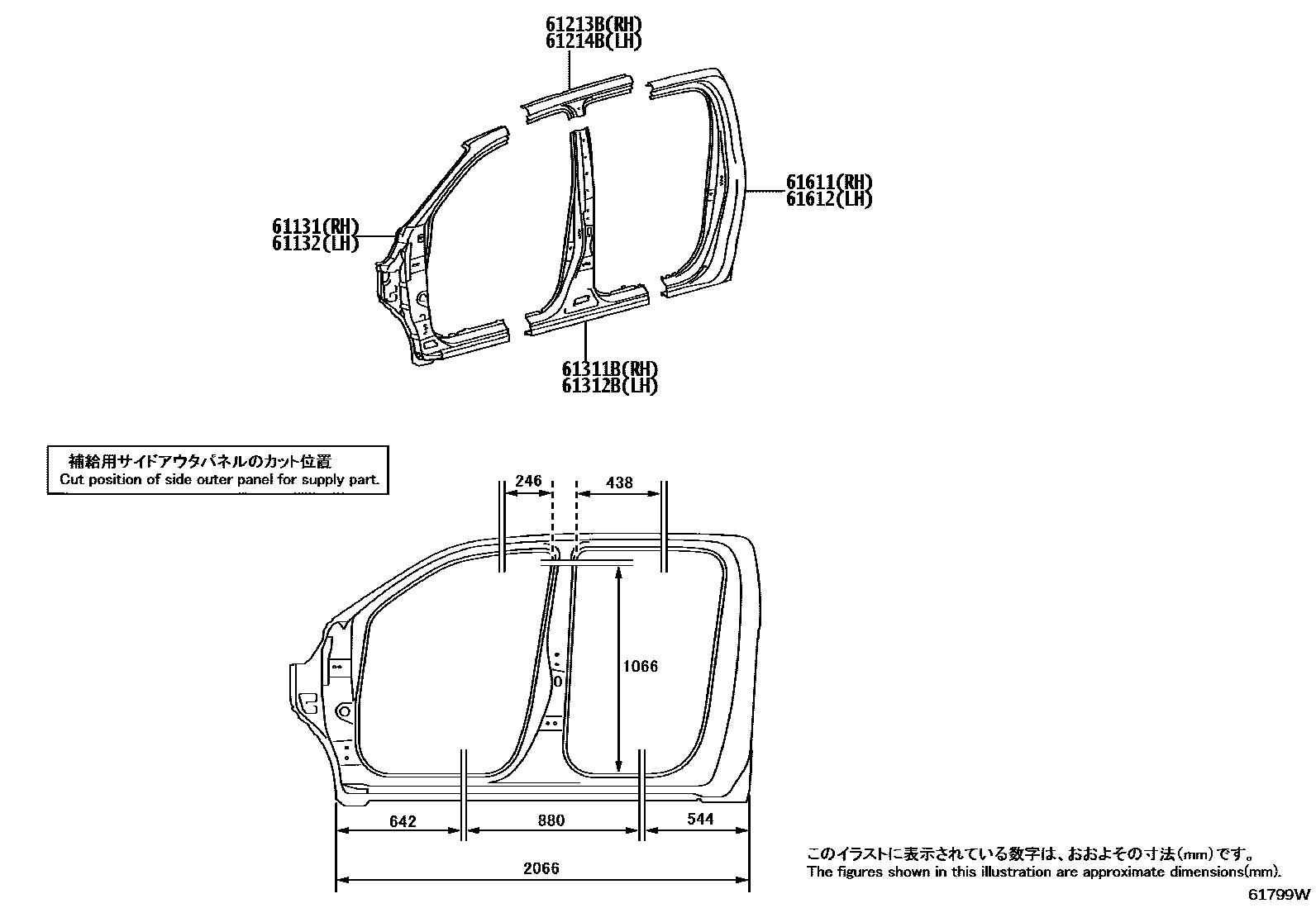

Toyota HILUX 侧梁 EPC diagram — 61799W — 侧梁 — 61799W (202408 – 999999)

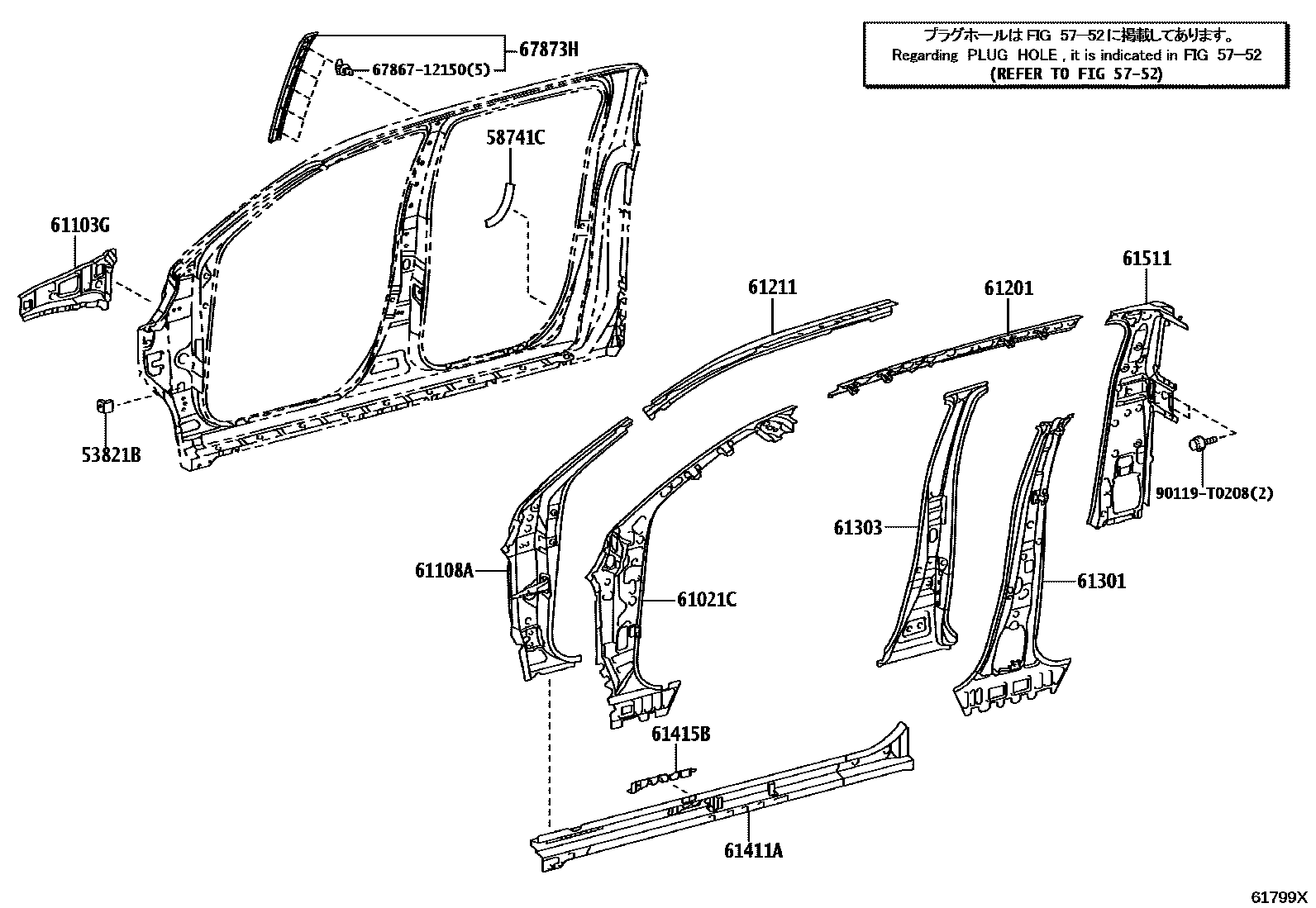

Toyota HILUX 侧梁 EPC diagram — 61799X — 侧梁 — 61799X (202408 – 999999)

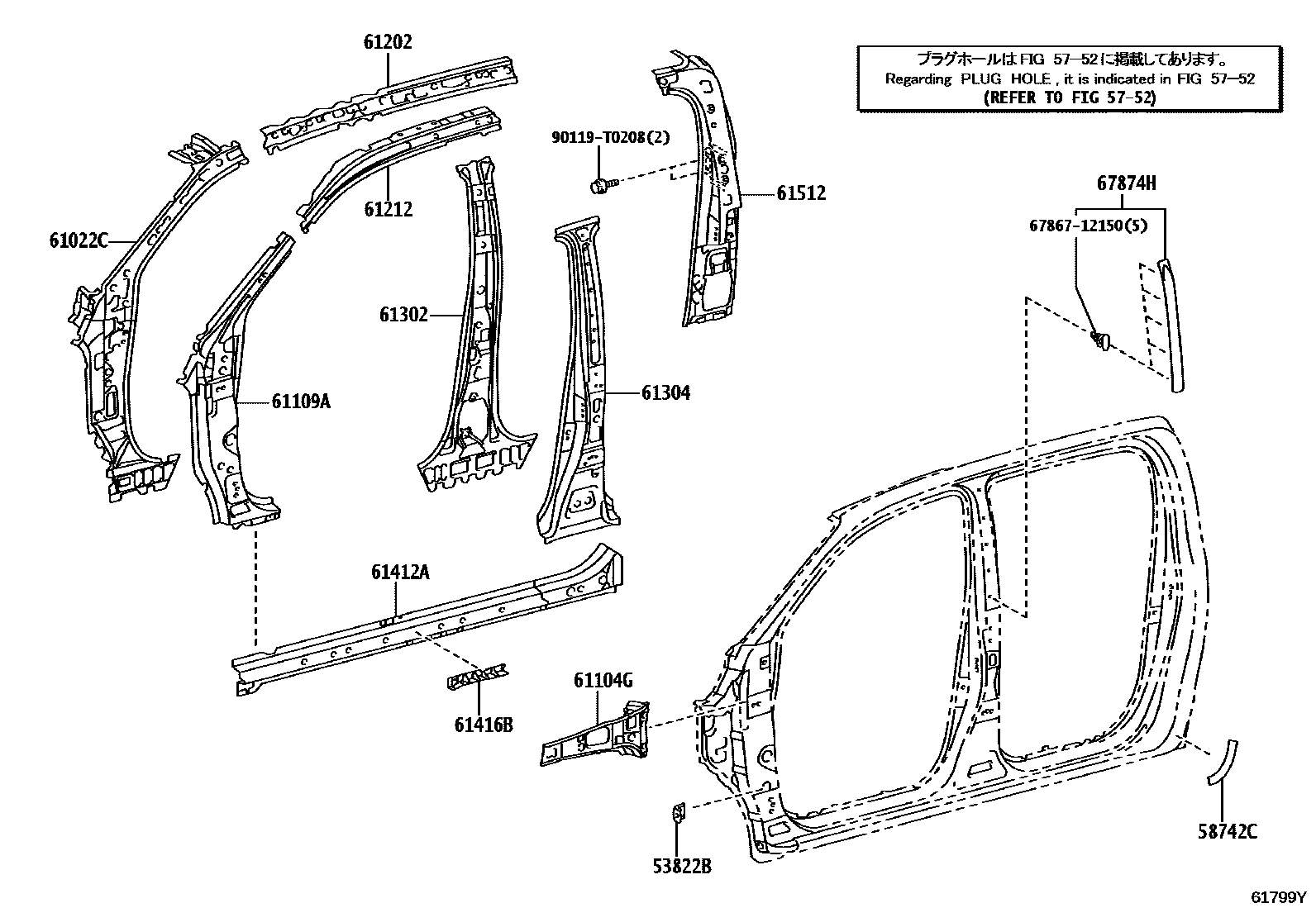

Toyota HILUX 侧梁 EPC diagram — 61799Y — 侧梁 — 61799Y (202408 – 999999)

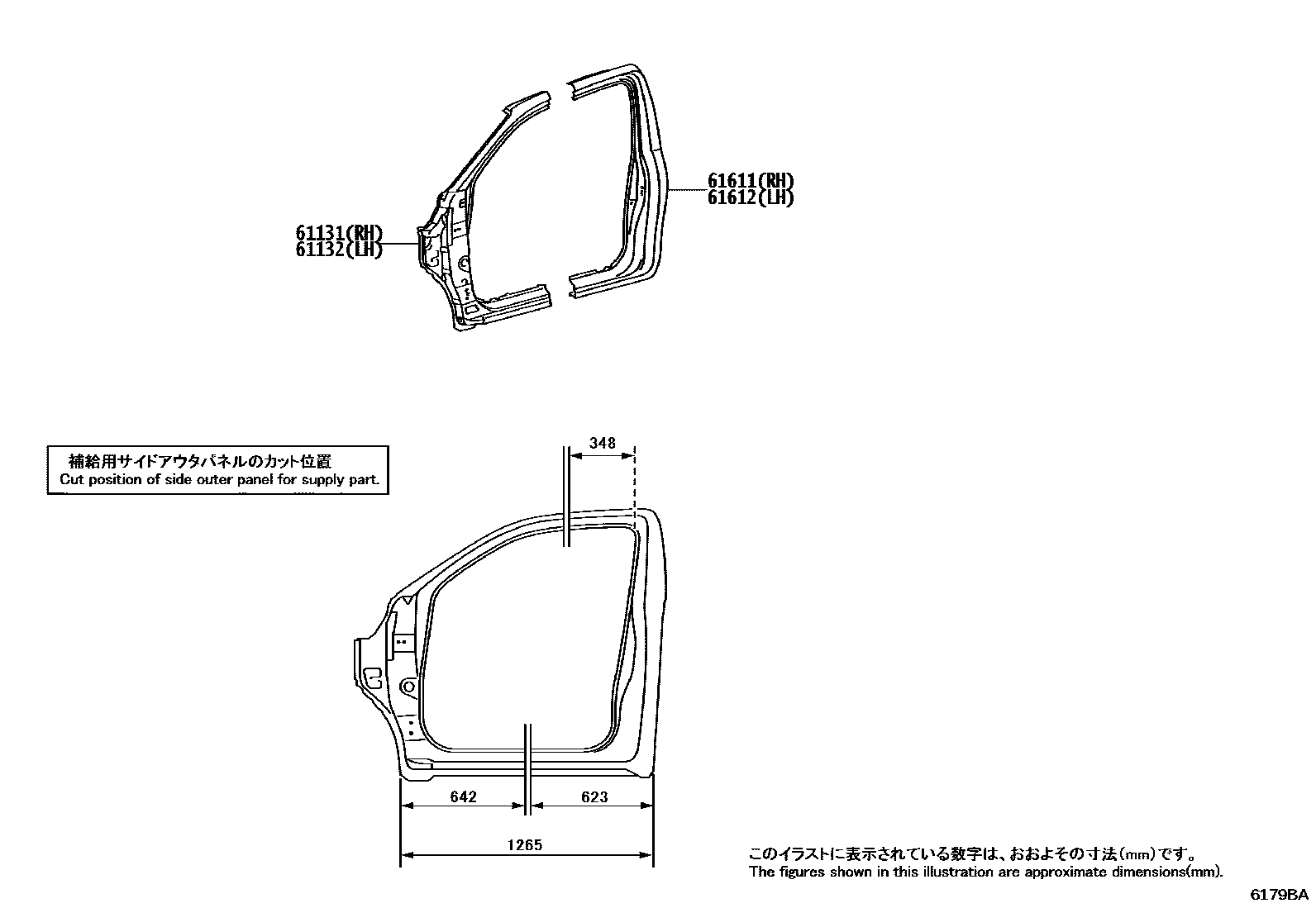

Toyota HILUX 侧梁 EPC diagram — 6179BA — 侧梁 — 6179BA (202411 – 999999)

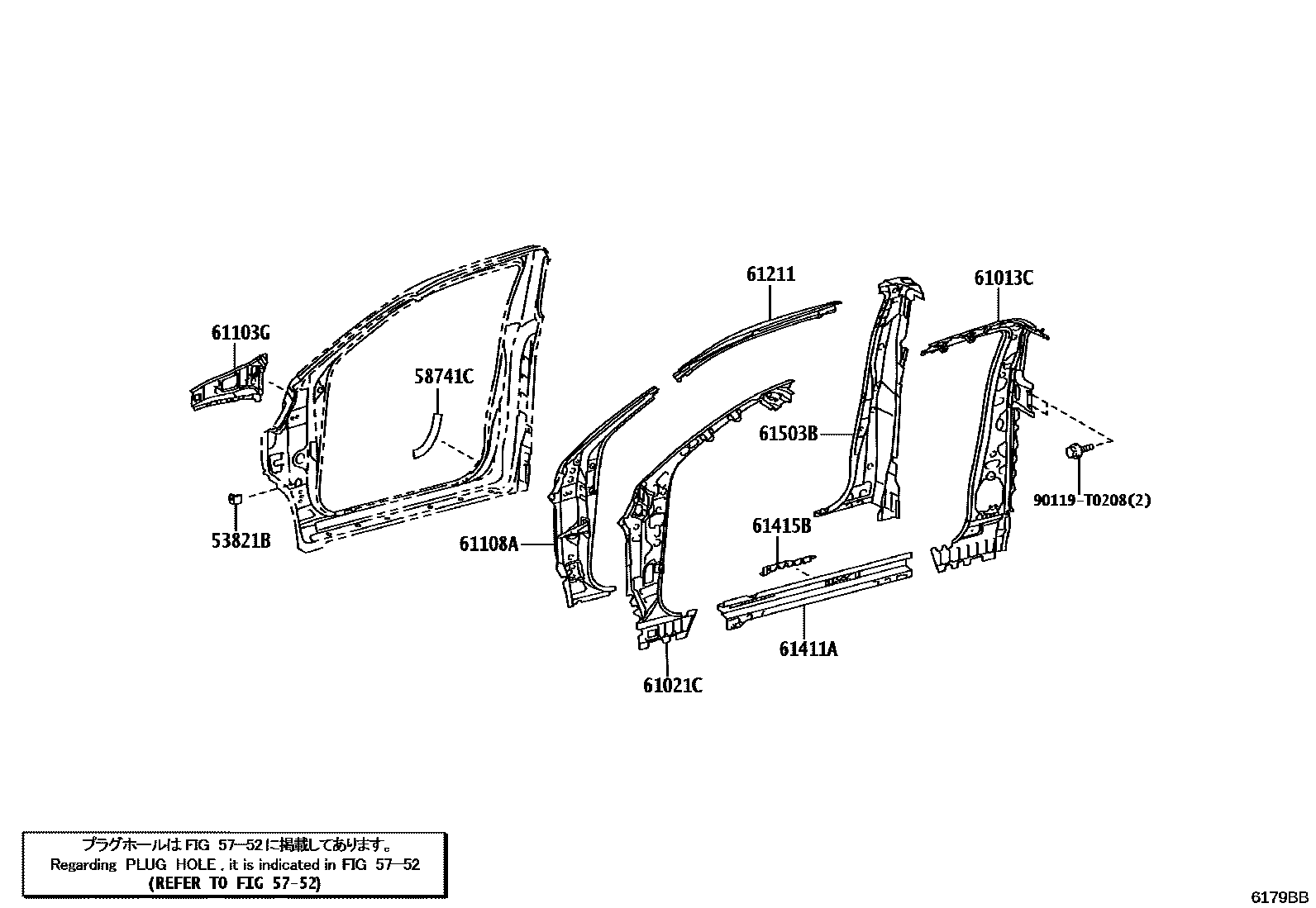

Toyota HILUX 侧梁 EPC diagram — 6179BB — 侧梁 — 6179BB (202411 – 999999)

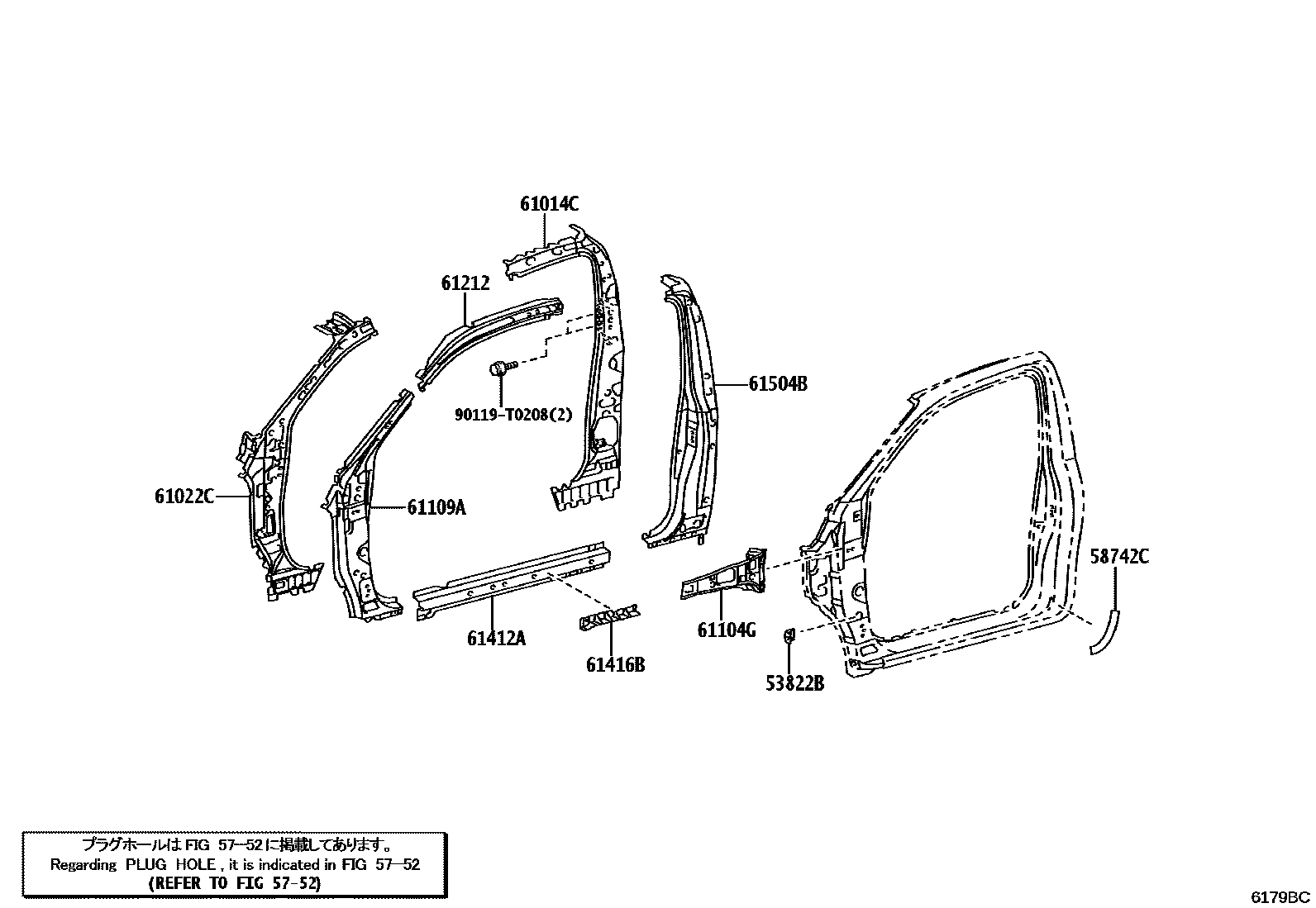

Toyota HILUX 侧梁 EPC diagram — 6179BC — 侧梁 — 6179BC (202411 – 999999)

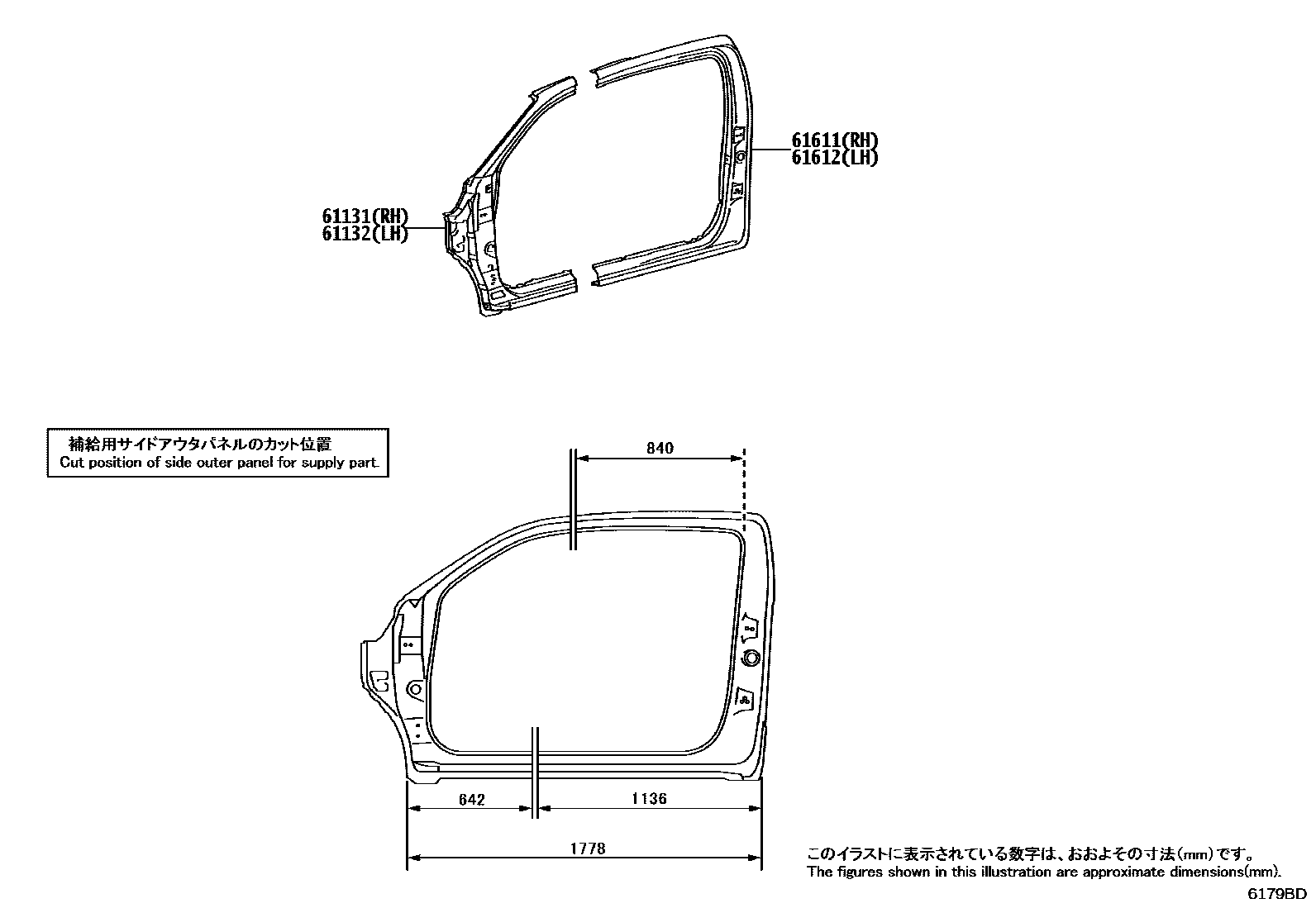

Toyota HILUX 侧梁 EPC diagram — 6179BD — 侧梁 — 6179BD (202411 – 999999)

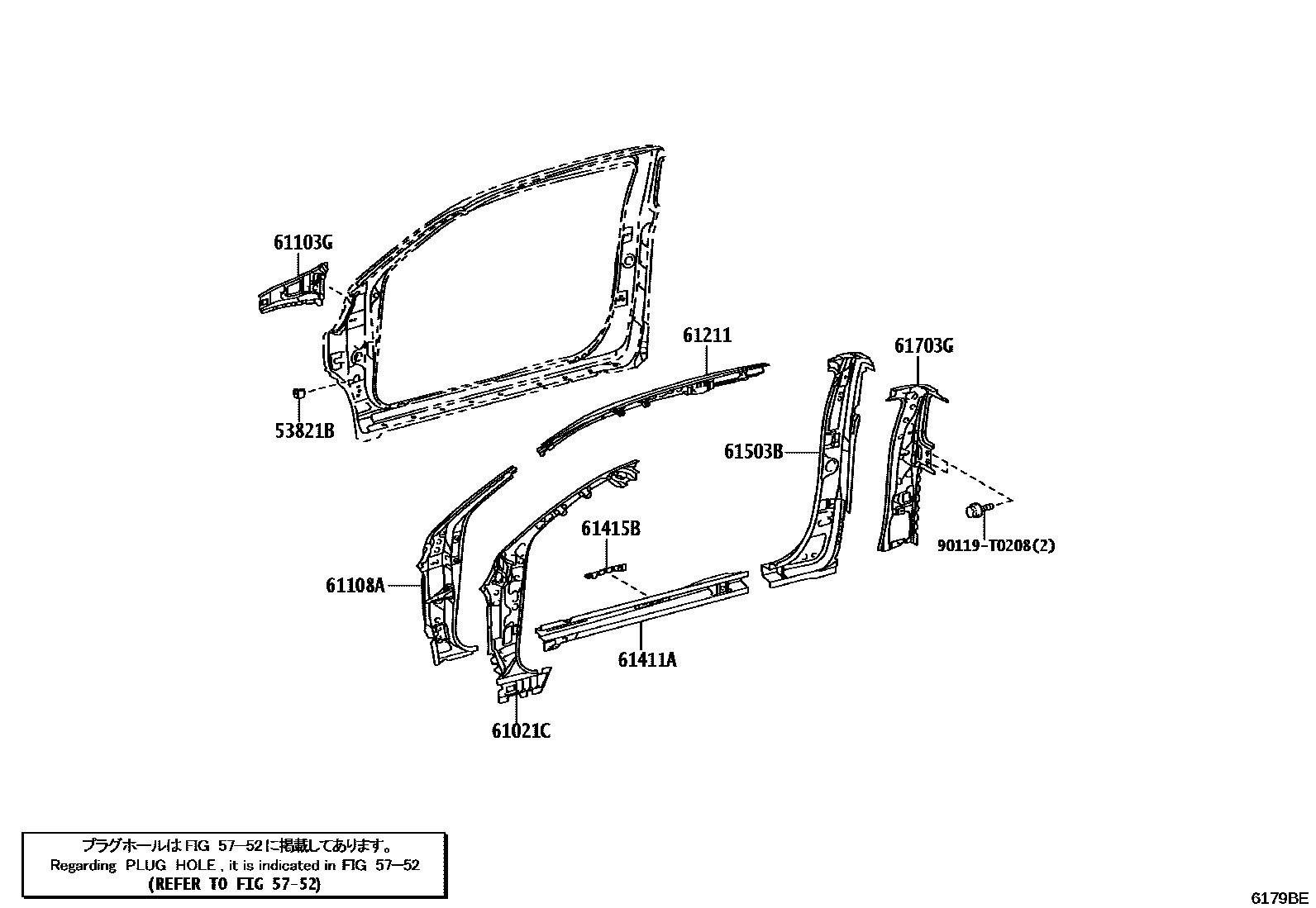

Toyota HILUX 侧梁 EPC diagram — 6179BE — 侧梁 — 6179BE (202411 – 999999)

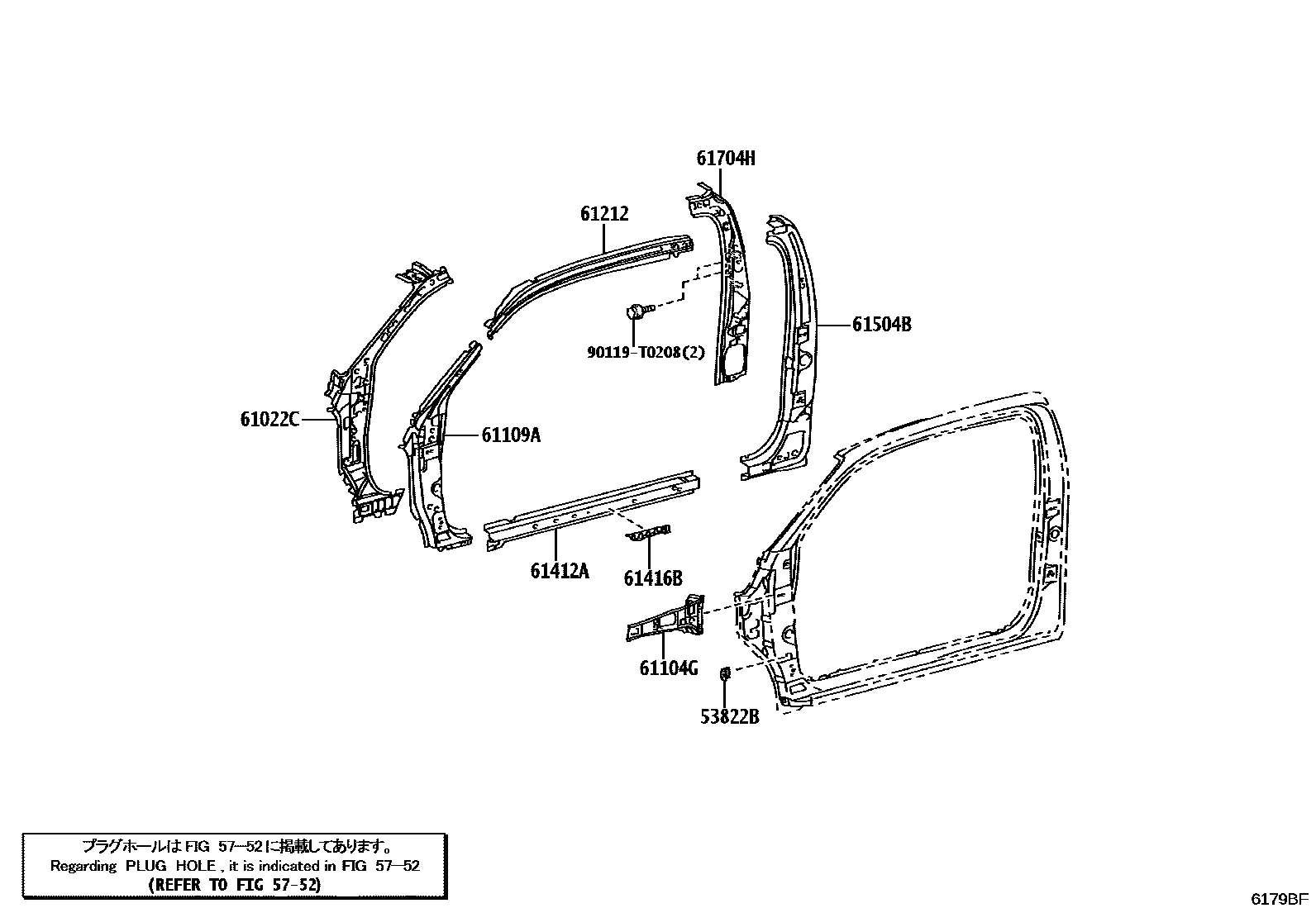

Toyota HILUX 侧梁 EPC diagram — 6179BF — 侧梁 — 6179BF (202411 – 999999)

PNC and OE references

PNC	Part name	OE numbers
53821B	Right front fender rear support	53257-35030
53822B	Left front fender rear support	53257-35030
58741C	Right side enclosure protection panel	58741-0K070 · 58741-0K130
58742C	Left side enclosure protection panel	58742-0K070 · 58742-0K130
61013C	Right inner panel sub-assembly	61013-KK090
61014C	Left inner panel sub-assembly	61014-KK040
61021C	Right body front pillar sub-assembly	61021-KK030
61022C	Left body front pillar sub-assembly	61022-KK030
61103G	Right body front pillar lower corner panel sub-assembly	61103-KK010
61104G	Left side body front pillar lower corner panel sub-assembly	61104-KK010
61108A	Right body front pillar lower reinforcement sub-assembly	61108-KK900
61109A	Left side body front pillar lower reinforcement sub-assembly	61109-KK900
61131	Right body outer front upper pillar	61131-KK010 · 61131-KK020 · 61131-KK030
61132	Left body outer front upper pillar	61132-KK010 · 61132-KK020 · 61132-KK030
61201	Roof right side longitudinal beam sub-assembly	61201-KK010
61202	Roof left side longitudinal beam sub-assembly	61202-KK010
61211	Roof right outer longitudinal beam	61210-KK040 · 61211-KK010 · 61211-KK020
61212	Roof left outer longitudinal beam	61212-KK010 · 61212-KK020 · 61220-KK020
61213B	No. 2 longitudinal beam on the outer right side of the roof	61213-KK010
61214B	No. 2 longitudinal beam on the left side of the roof	61214-KK010
61301	Right body center pillar sub-assembly	61301-KK020
61302	Left body center pillar sub-assembly	61302-KK020
61303	Right body center pillar reinforcement sub-assembly	61303-KK010
61304	Left body center pillar reinforcement sub-assembly	61304-KK010
61311B	Right body outer center pillar	61311-KK010
61312B	Left body outer center pillar	61312-KK010
61411A	Right side door sill panel No. 1 reinforcement	61401-KK900 · 61401-KK901 · 61401-KK902
61412A	Left side door sill panel reinforcement No. 1	61402-KK900 · 61402-KK901 · 61402-KK902
61415B	Right door outer sill extension	61415-KK010 · 61415-KK020
61416B	Left door outer sill extension	61416-KK010 · 61416-KK020
61503B	Right side locking column reinforcement sub-assembly	61503-KK900 · 61503-KK901
61504B	Left side locking column reinforcement sub-assembly	61504-KK900 · 61504-KK901
61511	Right side locking post	61501-KK050 · 61501-KK051
61512	Left side locking post	61502-KK010 · 61502-KK011 · 61502-KK050
61611	Right side hoarding	61611-KK010 · 61611-KK020 · 61611-KK030
61612	left side panel	61612-KK010 · 61612-KK020 · 61612-KK030
61703G	Right side enclosure inner panel sub-assembly	61703-KK040
61704H	Left side enclosure inner panel sub-assembly	61704-KK040
67873H	Center door No. 1 upper seal	67873-0K041 · 67873-0K051
67874H	Center door No. 2 upper seal	67874-0K041 · 67874-0K051
