Toyota HILUX 中央扶手箱和支架 — Figure 5855

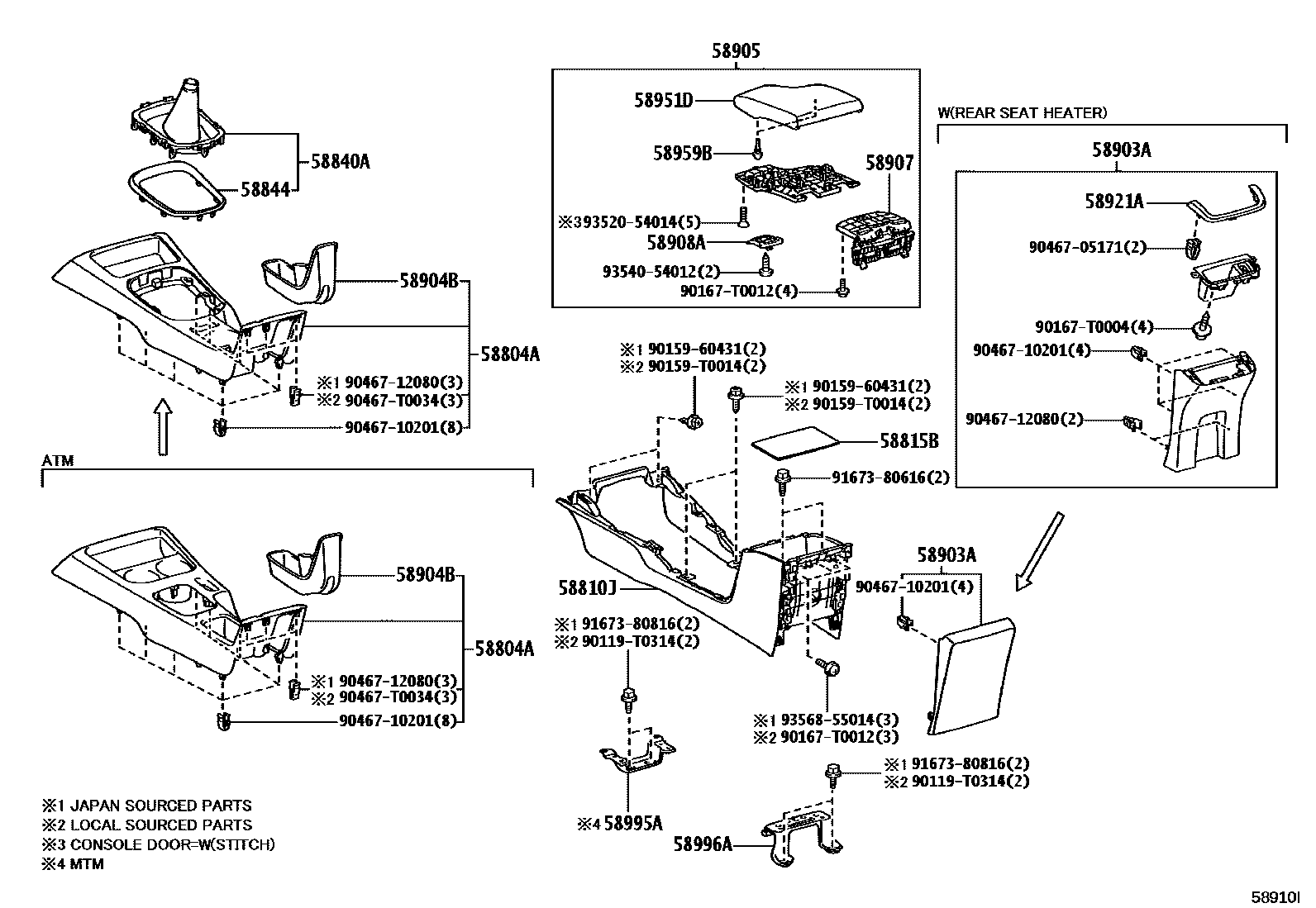

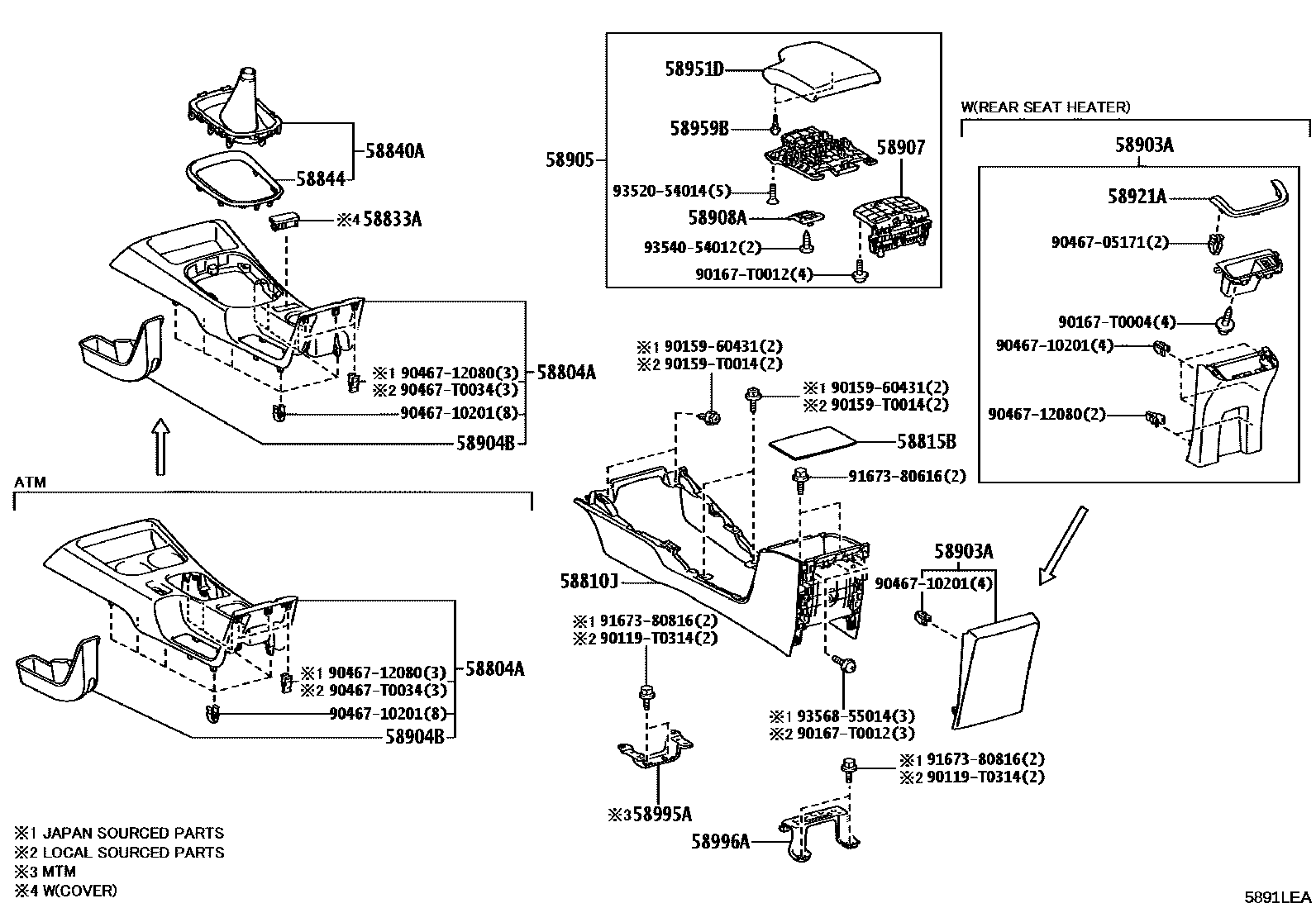

Toyota HILUX EPC diagram 5855, 中央扶手箱和支架, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58815B | Armrest box felt pad | 58815-KK010 |
| 58840A | Shift hole cover assembly | 58840-YP010 |
| 58844 | armrest box frame | 58844-KK030 · 58844-YP010 |
| 58908A | Armrest box lid lock assembly | 58908-KK010 |
| 58921A | Rear armrest box upper panel | 58921-KK050 · 58921-YP050 |
| 58959B | Armrest box cover cushion | 90541-T0008 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-KK020 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-KK020 |
