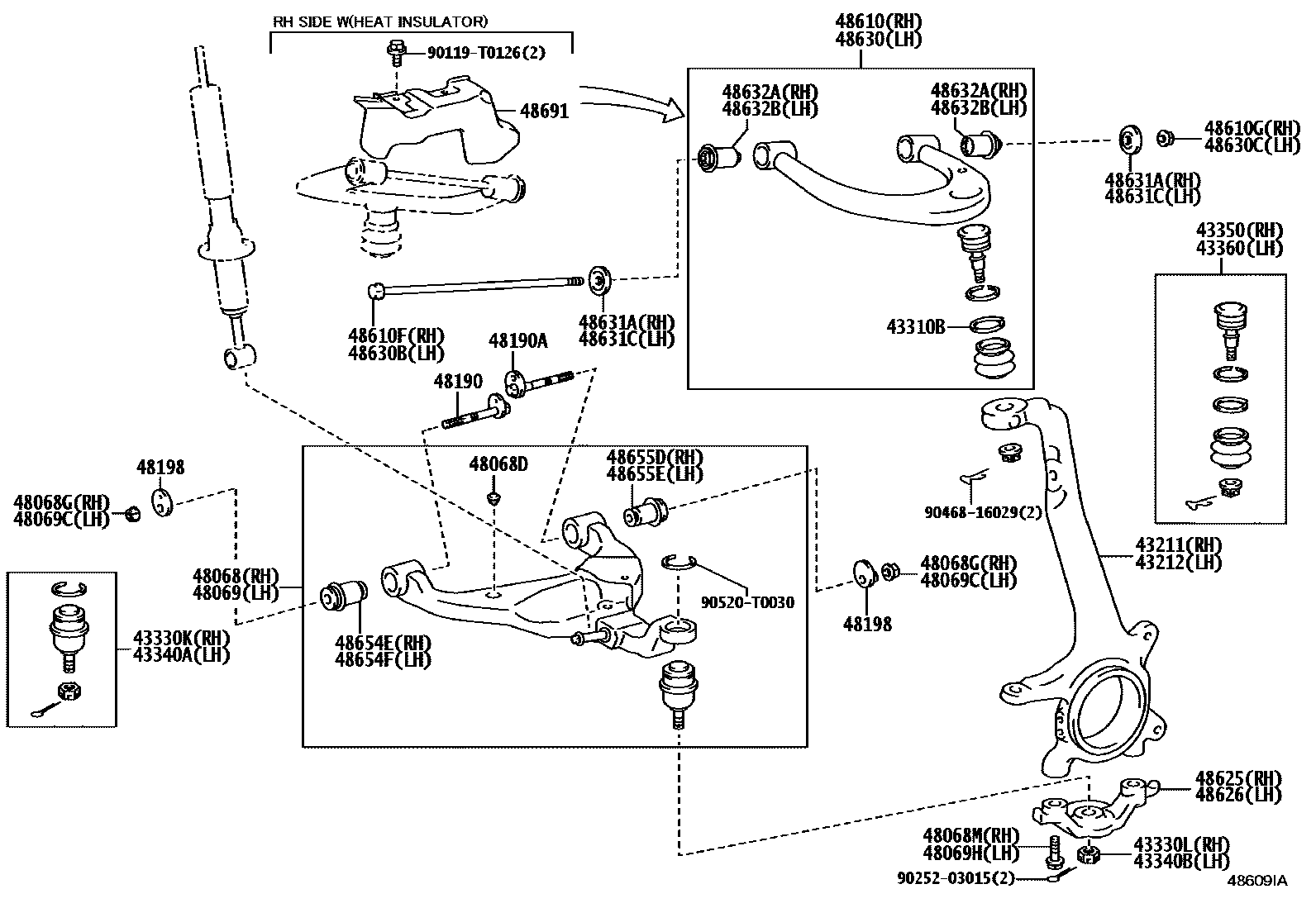

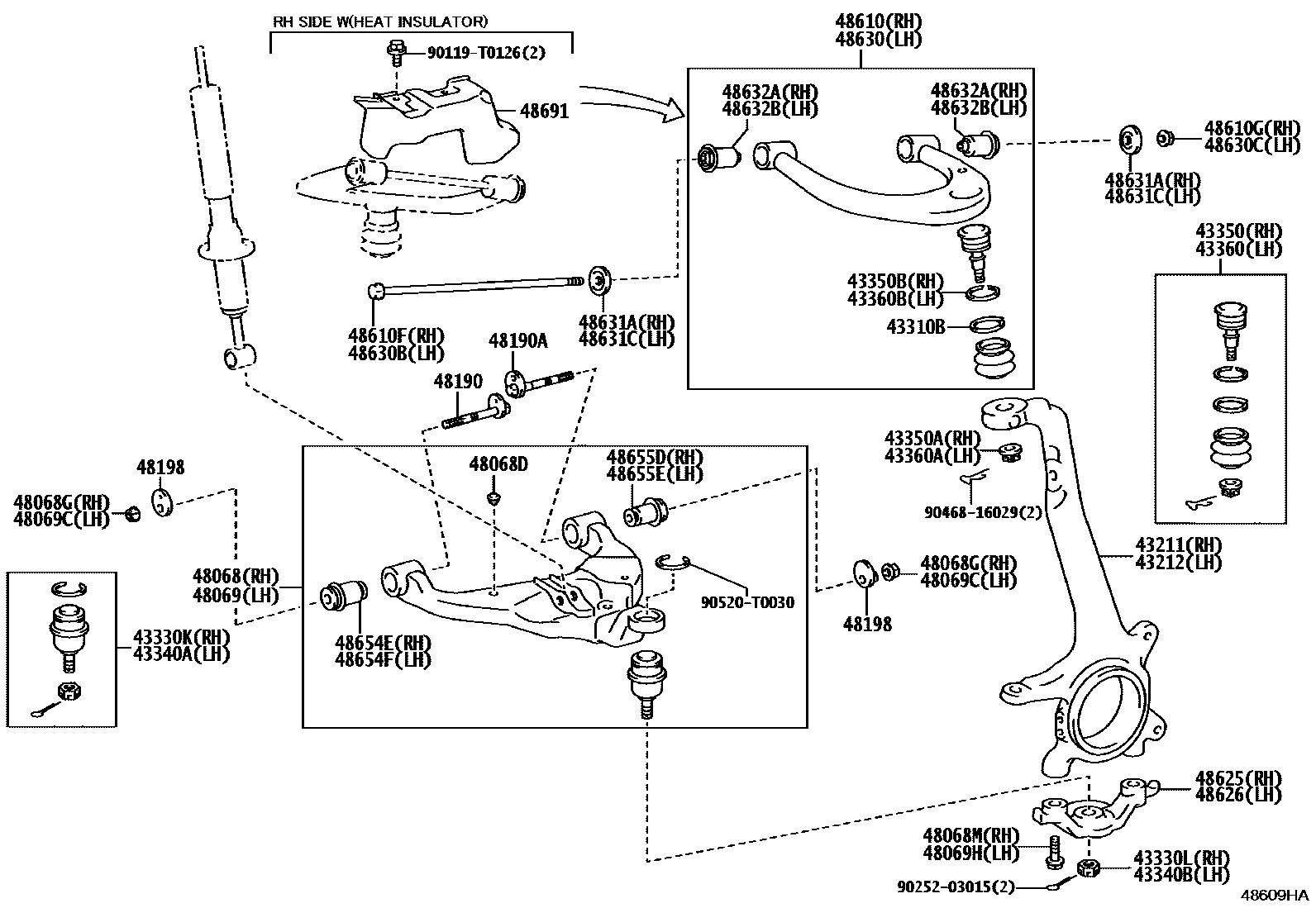

Toyota HILUX 前桥控制臂和转向节 — Figure 4802
Toyota HILUX EPC diagram 4802, 前桥控制臂和转向节, with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-KK010 |
| 43212 | left steering knuckle | 43212-KK010 |
| 43310B | Positioning ring (for dust cover) | 90580-10001 |
| 43330K | Right front lower ball joint assembly | 43330-09510 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-T0003 |
| 43340A | Left front lower ball joint assembly | 43330-09510 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-T0003 |
| 43350 | Right front upper ball joint assembly | 43310-09017 |
| 43350A | Nut (for right front upper ball joint) | 90171-T0001 |
| 43350B | Snap ring (for right front upper ball joint) | 90520-T0029 |
| 43360 | Left front upper ball joint assembly | 43310-09017 |
| 43360A | Nut (for left upper front ball joint) | 90171-T0001 |
| 43360B | Snap ring (for left front upper ball joint) | 90520-T0029 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-0K090 · 48068-0K130 |
| 48068D | Hole plug (for front suspension lower arm) | 90950-T1018 |
| 48068G | Nut (for right front suspension No. 1 lower arm) | 90178-T0073 |
| 48068M | Bolt (for right front suspension No. 2 lower arm) | 90105-T0305 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-0K090 · 48069-0K130 |
| 48069C | Nut (for left front suspension No. 1 lower arm) | 90178-T0073 |
| 48069H | Bolt (for left front suspension No. 2 lower arm) | 90105-T0305 |
| 48190 | Camber angle adjustment cam assembly | 48190-0K040 |
| 48190A | No. 2 camber angle adjustment cam assembly | 48190-0K050 |
| 48198 | No. 2 camber angle adjustment cam | 48198-0K030 |
| 48610 | Right front suspension upper arm assembly | 48610-0K040 · 48610-0K120 |
| 48610F | Bolt (for right front suspension upper arm) | 90105-T0114 |
| 48610G | Nut (for right front suspension upper arm) | 90178-T0027 |
| 48625 | Right front lower ball joint connector | 48625-KK010 · 48625-KK030 · 48625-KK040 |
| 48626 | Left front lower ball joint connector | 48626-KK010 · 48626-KK030 · 48626-KK040 |
| 48630 | Left front suspension upper arm assembly | 48630-0K040 · 48630-0K120 |
| 48630B | Bolt (for left front suspension upper arm) | 90105-T0114 |
| 48630C | Nut (for left front suspension upper arm) | 90178-T0027 |
| 48631A | Crash pad cover (for right front suspension upper arm) | 90948-T2007 |
| 48631C | Crash pad cover (for left front suspension upper arm) | 90948-T2007 |
| 48632A | Right front suspension upper arm bushing | 48632-0K040 |
| 48632B | Left front suspension upper arm bushing | 48632-0K040 |
| 48654E | Right front No. 1 lower arm bushing | 48654-0K080 · 48654-0K160 |
| 48654F | Left front No. 1 lower arm bushing | 48654-0K080 · 48654-0K160 |
| 48655D | Right front No. 2 lower arm bushing | 48655-0K080 |
| 48655E | Left front No. 2 lower arm bushing | 48655-0K080 |
| 48691 | Upper arm bushing insulation pad | 44447-KK010 · 48691-KK010 |
