Toyota HILUX 后桥半轴和后桥轮毂 — Figure 4102

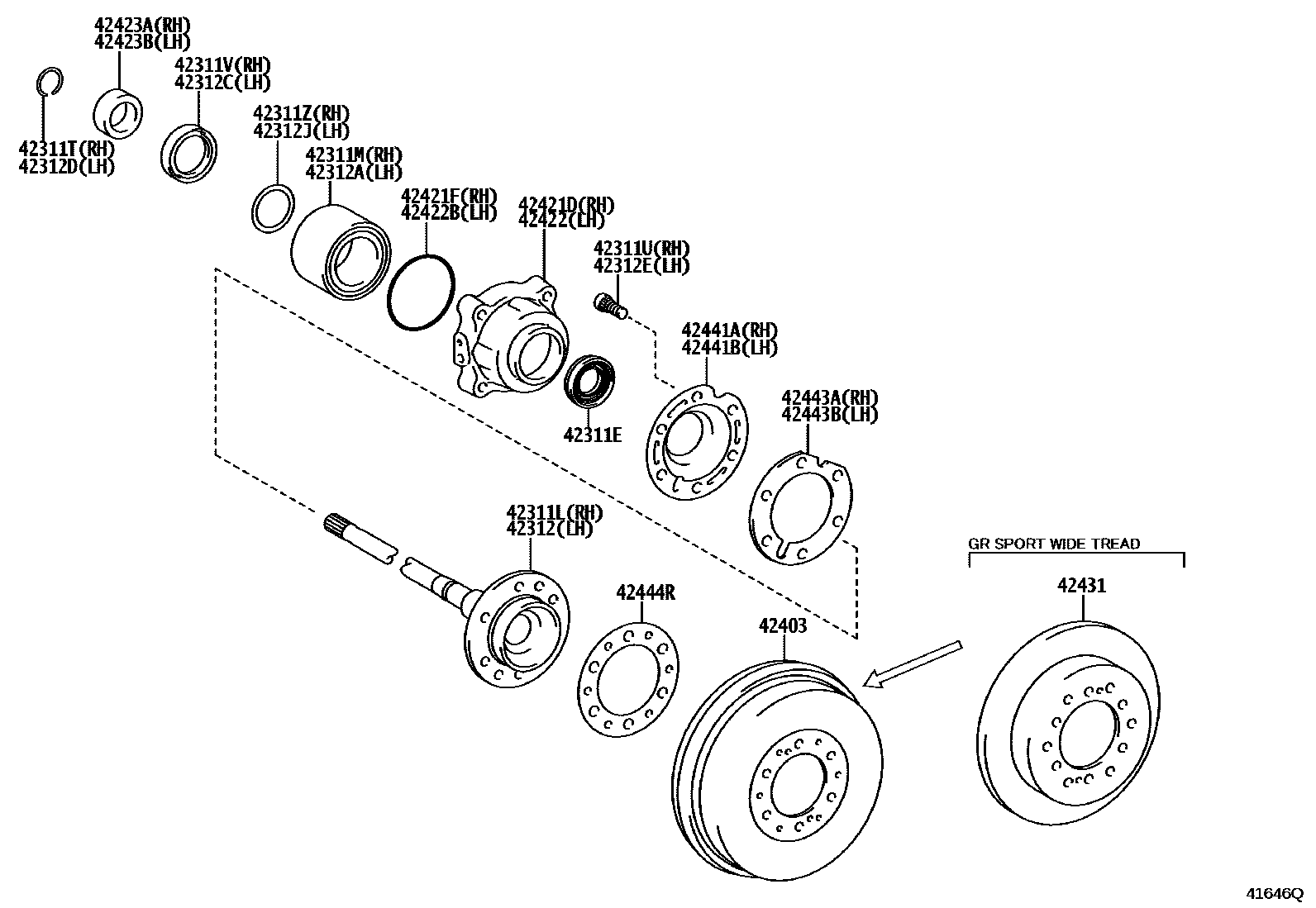

Toyota HILUX EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311E | External oil seal (for rear axle half shaft) | 90313-T0002 |
| 42311L | Rear axle right half shaft | 42311-KK040 · 42311-KK070 |
| 42311M | Bearing (for rear axle right half shaft) | 90366-F0001 · 90366-T0060 |
| 42311T | Snap ring (for rear axle right half shaft) | 90520-T0033 |
| 42311U | Hub bolt (for rear axle right) | 90942-02081 |
| 42311V | Oil seal (for rear axle right half shaft) | 90310-T0008 |
| 42311Z | Washer (for rear axle right half shaft) | 90208-T0001 |
| 42312 | Rear axle left half shaft | 42311-KK040 · 42311-KK070 |
| 42312A | Bearing (for rear axle left half shaft) | 90366-F0001 · 90366-T0060 |
| 42312C | Oil seal (for rear axle left half shaft) | 90310-T0008 |
| 42312D | Snap ring (for rear axle left half shaft) | 90520-T0033 |
| 42312E | Hub bolt (for left rear axle) | 90942-02081 |
| 42312J | Washer (for rear axle left half shaft) | 90208-T0001 |
| 42403 | Rear brake drum sub-assembly | 42431-0K120 · 42431-0K180 |
| 42421D | Rear axle right bearing shell | 42421-KK030 · 42421-KK050 |
| 42421F | O-ring (for rear axle right bearing housing) | 90301-T0043 |
| 42422 | Rear axle left bearing housing | 42421-KK030 · 42422-KK050 |
| 42422B | O-ring (for rear axle left bearing housing) | 90301-T0043 |
| 42423A | Rear axle right bearing inner retainer | 42423-KK010 |
| 42423B | Rear axle left bearing inner retainer | 42423-KK010 |
| 42431 | rear brake disc | 42431-0K230 |
| 42441A | Brake drum right oil baffle | 42441-KK010 |
| 42441B | Brake drum left oil baffle | 42441-KK010 |
| 42443A | Brake drum right fender pad | 42443-60010 |
| 42443B | Brake drum left oil deflector gasket | 42443-60010 |
| 42444R | Brake drum gasket (for rear axle) | 42444-35050 |
