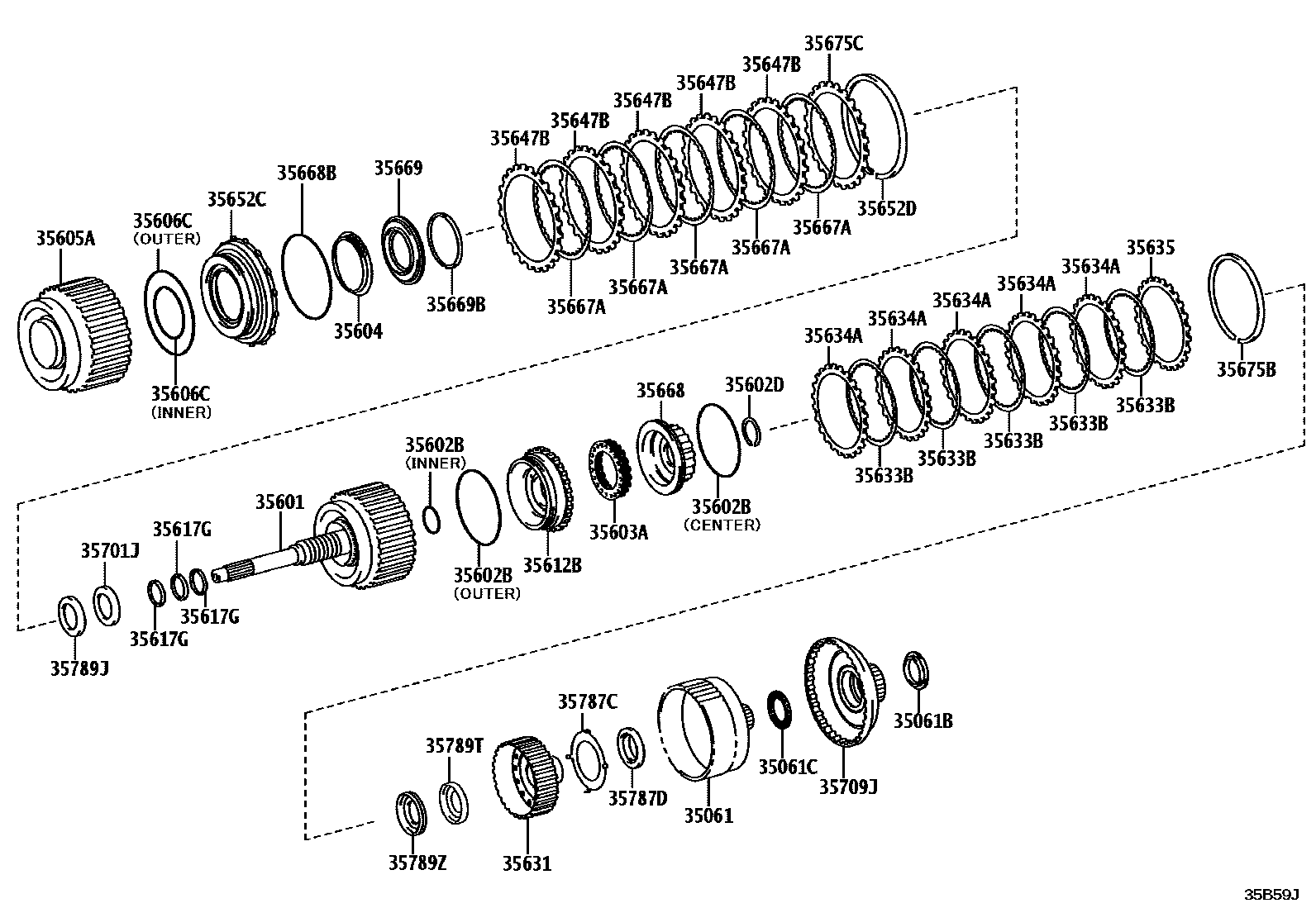

Toyota HILUX 制动带和多片式离合器(ATM) — Figure 3507
Toyota HILUX EPC diagram 3507, 制动带和多片式离合器(ATM), with 1 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35061 | Forward gear clutch hub sub-assembly | 35061-71010 |
| 35061B | Thrust bearing race (for forward clutch hub) | 35789-71020 |
| 35061C | Thrust needle roller bearing (for forward clutch hub) | 90374-39008 |
| 35601 | Clutch drum sub-assembly | 35601-0K010 · 35601-0K030 · 35601-26020 · 35601-71030 |
| 35602B | O-ring (for forward clutch piston) | 90301-33017 · 90301-99096 · 90301-99145 · 90301-T0087 · 90301-T0088 · 90301-T0091 |
| 35602D | Shaft snap ring (for forward clutch piston return spring) | 90520-35003 |
| 35603A | Forward gear clutch return spring sub-assembly | 35603-0K010 · 35603-60020 |
| 35604 | Direct clutch return spring sub-assembly | 35604-0K010 · 35604-71010 |
| 35605A | Direct gear clutch drum sub-assembly | 35605-0K010 · 35605-71010 |
| 35606C | O-ring (for direct clutch piston) | 90301-74004 · 90301-99205 · 90301-T0092 · 90301-T0093 |
| 35612B | forward clutch piston | 35612-0K010 · 35612-71010 |
| 35617G | Clutch drum oil ring | 35617-71010 |
| 35631 | Clutch hub (for multi-plate clutches) | 35631-0K010 · 35631-71010 |
| 35633B | Clutch disc (for forward multi-plate clutch) | 35633-71010 |
| 35634A | Clutch plate (for forward multi-plate clutch) | 35634-71010 |
| 35635 | forward clutch flange | 35635-71010 · 35635-71020 · 35635-71030 · 35635-71040 · 35635-71050 · 35635-71060 · 35635-71070 · 35635-71080 · 35635-71090 · 35635-71100 · 35635-71110 · 35635-71120 · 35635-71130 |
| 35647B | Clutch plate No. 2 | 35647-71010 |
| 35652C | direct clutch piston | 35652-0K010 · 35652-71010 |
| 35652D | Snap ring (for direct clutch piston) | 90520-99159 · 90520-T0289 |
| 35667A | Direct clutch disc | 35667-71010 |
| 35668 | No. 1 clutch balancer | 35668-0K010 · 35668-71010 |
| 35668B | O-ring (for clutch balancer) | 90301-99204 · 90301-T0094 |
| 35669 | No. 2 clutch balancer | 35669-0K010 · 35669-71010 |
| 35669B | Snap ring (for clutch balancer) | 90520-68006 · 90520-T0287 |
| 35675B | Hole snap ring (for forward clutch flange) | 90520-99158 · 90520-T0286 |
| 35675C | Direct clutch flange | 35675-71010 · 35675-71020 · 35675-71030 · 35675-71040 · 35675-71050 · 35675-71060 · 35675-71070 |
| 35701J | Front thrust needle roller bearing (for input shaft) | 90374-34015 |
| 35709J | Sun gear input drum subassembly | 35709-71010 |
| 35787C | No. 2 thrust bearing race | 35787-60010 |
| 35787D | Thrust needle roller bearing | 90374-38005 |
| 35789J | Front thrust bearing race (for input shaft) | 35789-71010 |
| 35789T | Rear thrust bearing race (input shaft) | 35789-50050 |
| 35789Z | Thrust needle roller bearing | 90374-21004 · 90374-21014 |
