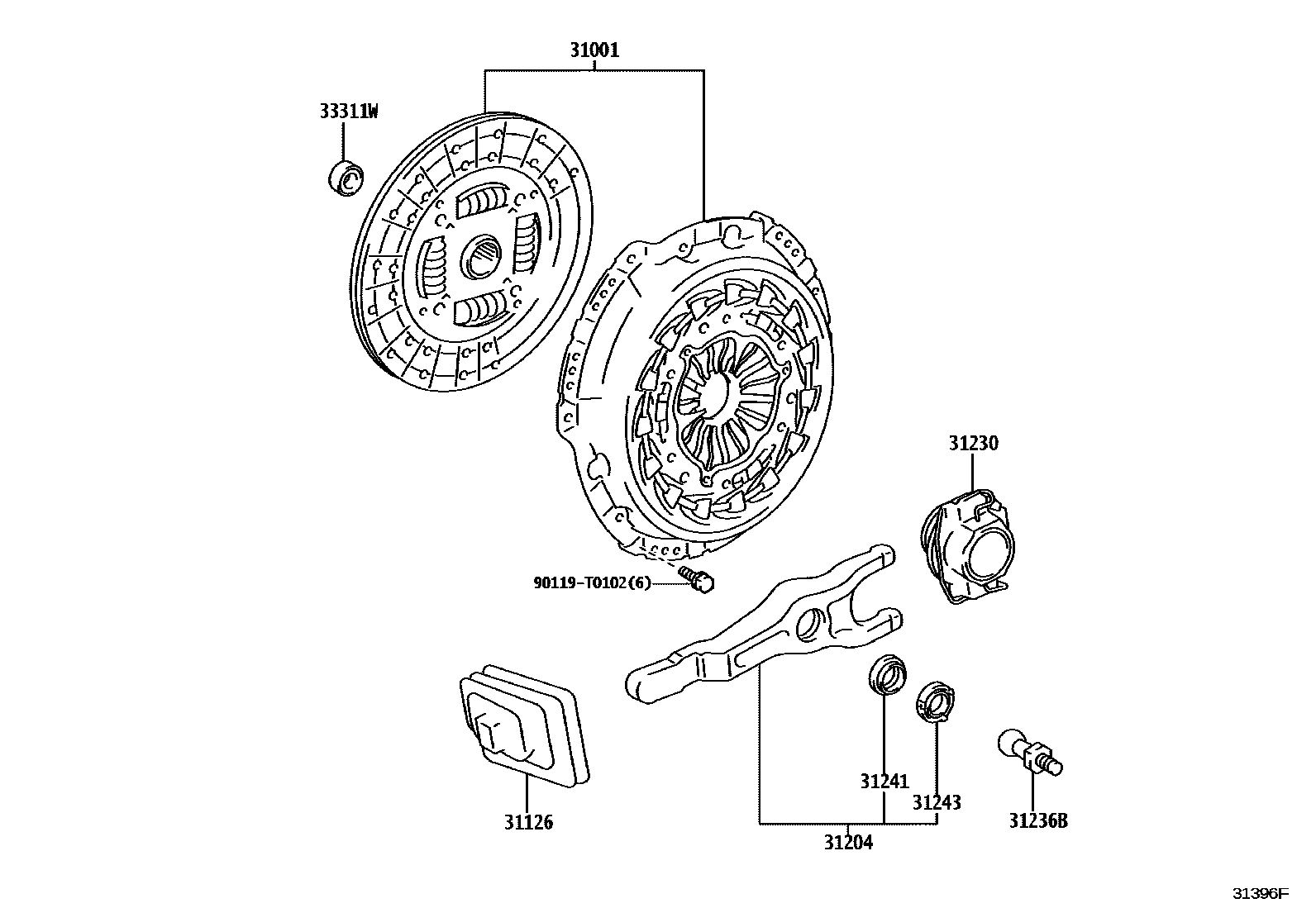

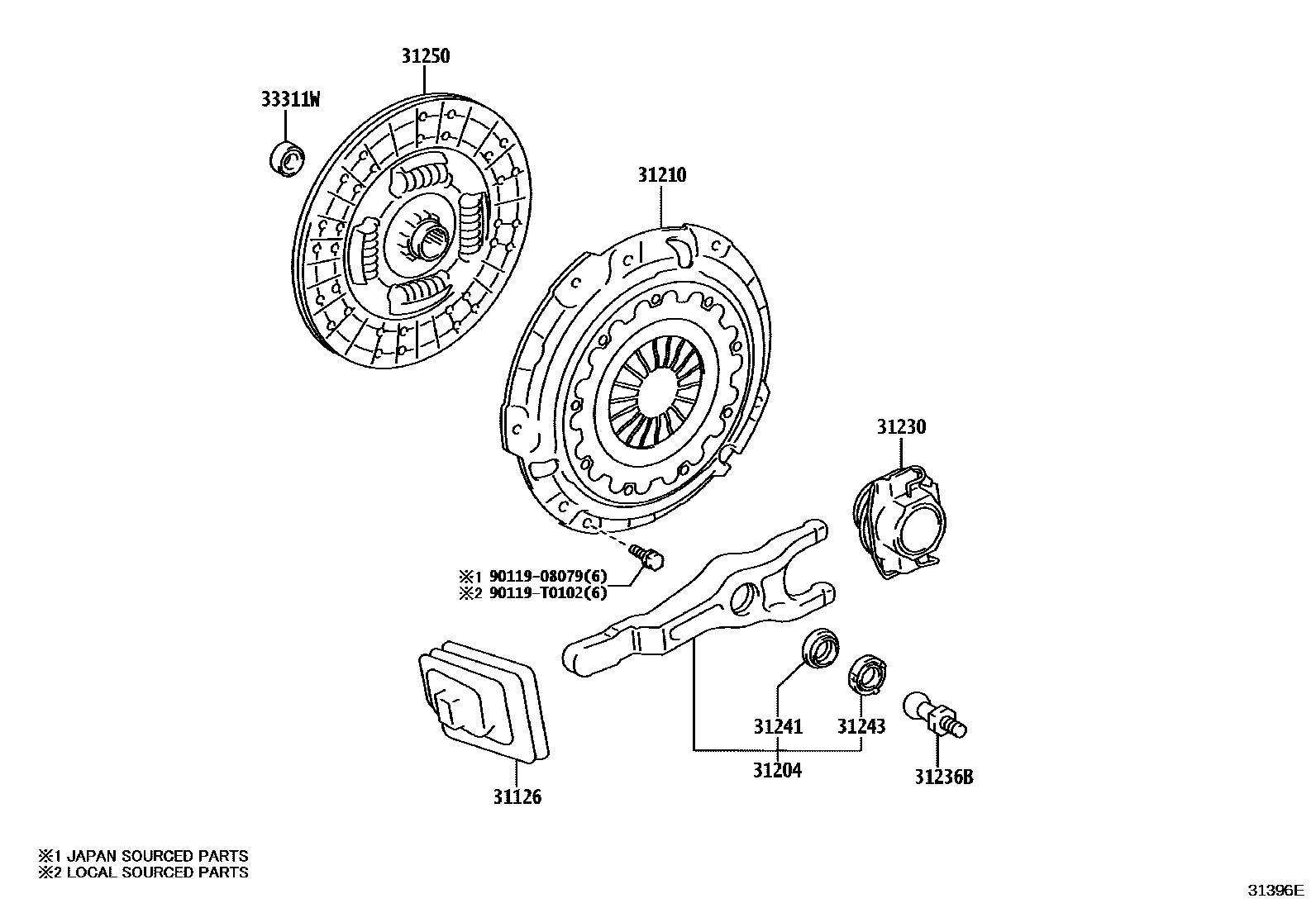

Toyota HILUX 离合器和分离叉 — Figure 3101
Toyota HILUX EPC diagram 3101, 离合器和分离叉, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31001 | Clutch cover and clutch disc assembly | 31001-0K010 |
| 31126 | Clutch release fork dust boot | 31126-0K080 |
| 31204 | Clutch release fork assembly | 31204-0K110 |
| 31210 | Clutch cover assembly | 31210-0K281 |
| 31230 | Clutch release bearing assembly | 31230-0K050 |
| 31236B | Split fork bracket | 31236-0K010 |
| 31241 | JOINT D'ETANCHEITE, POUSSIERE FOURCHETTE DEBRAYAGE | 31241-71010 |
| 31243 | COLLIER, FOURCHETTE DEBRAYAGE | 31243-0K010 |
| 31250 | Clutch disc assembly | 31250-0K281 |
| 33311W | Bearings (for input shaft) | 90363-T0006 |
