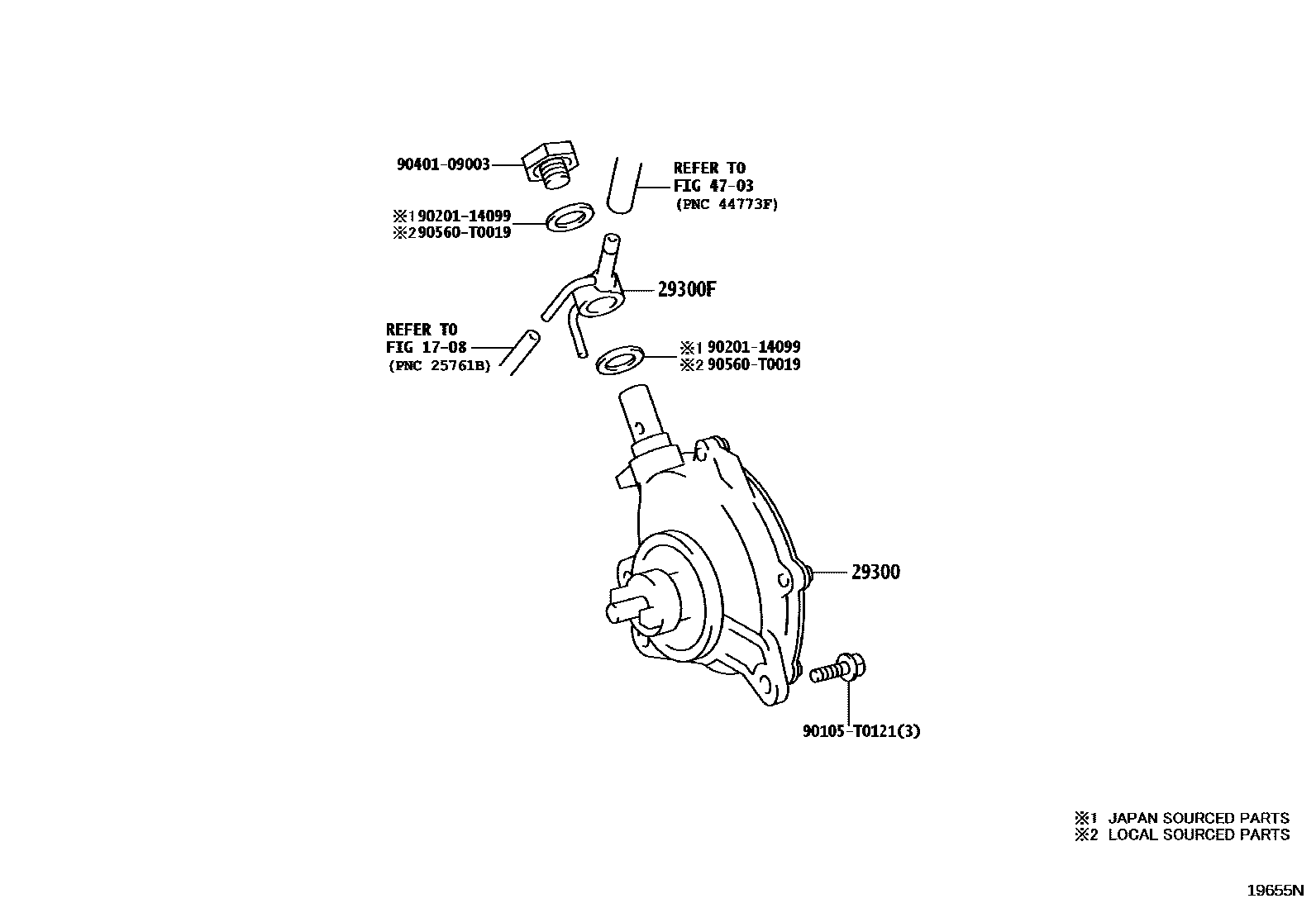

Toyota HILUX 真空泵 — Figure 1905
Toyota HILUX EPC diagram 1905, 真空泵, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-08010 · 29300-35010 |
| 29300F | Connector | 90405-09194 · 90405-T0001 |
