Toyota HILUX Alternator — Figure 1903

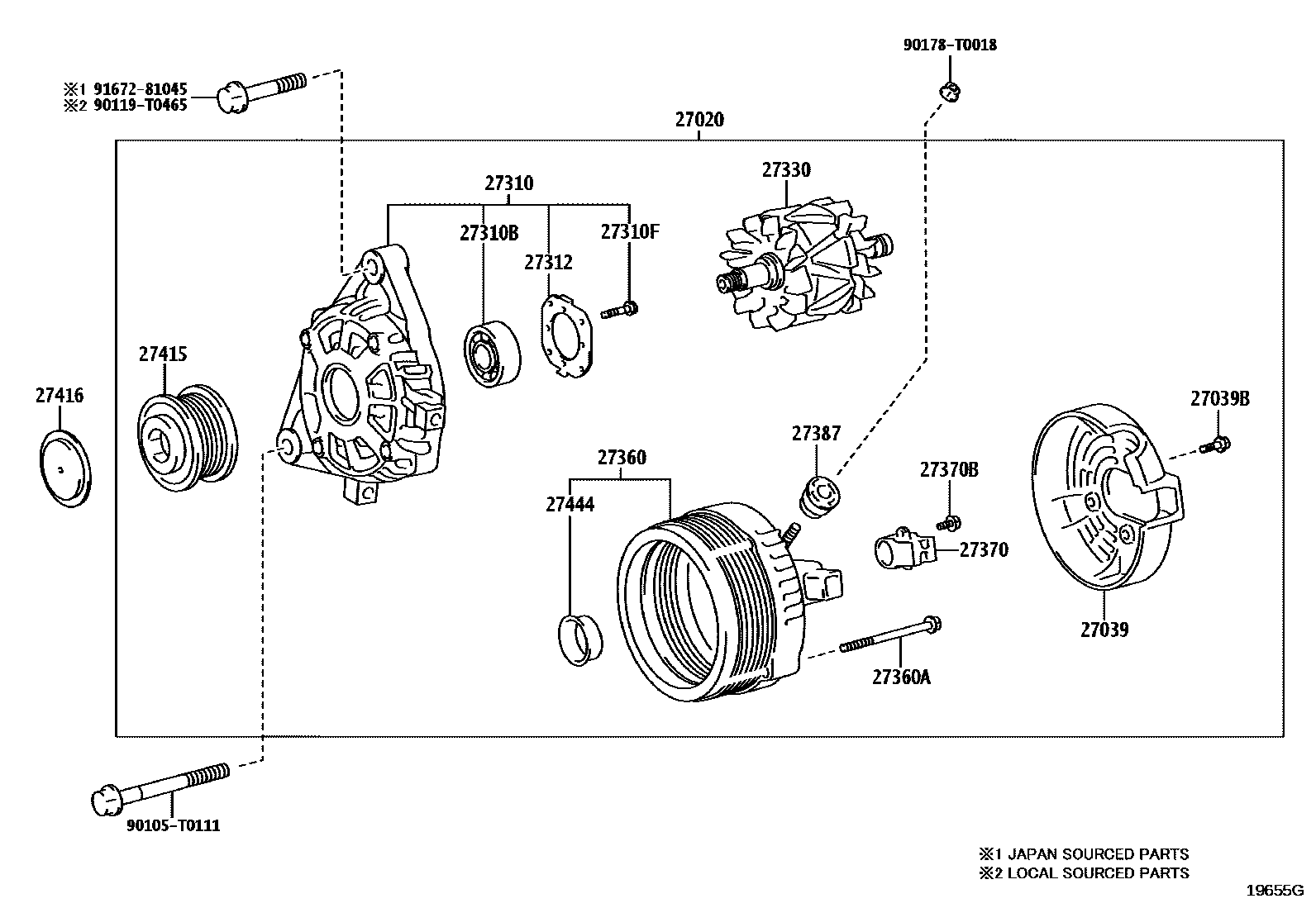

Toyota HILUX EPC diagram 1903, Alternator, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0E020 · 27060-30230 |
| 27039 | Alternator Rear End Cover | 27039-0V220 · 27039-37220 |
| 27039B | BOULON(POUR CACHE PARTIE ARRIERE ALTERNATEUR) | 90068-04046 · 90099-04627 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0L300 · 27310-30240 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10033 · 90099-10223 |
| 27310F | VIS(POUR CHASSIS COTE ENTRAINEMENT ALTERNATEUR) | 90068-00022 · 90099-00268 |
| 27312 | Retainer Plate | 27312-0C020 · 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0V220 · 27330-37220 |
| 27360 | Alternator Stator Coil Assembly | 27360-0E030 · 27360-30240 |
| 27360A | BOULON(POUR BOBINE ALTERNATEUR) | 90068-04048 · 90099-04626 |
| 27370 | Alternator Brush Holder Assembly | 27370-0M040 · 27370-31220 |
| 27370B | VIS(POUR PORTE-BALAIS ALTERNATEUR) | 90068-00023 · 90099-00197 |
| 27387 | Terminal Insulator | 27387-0C020 · 27387-20130 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0L050 · 27415-30010 |
| 27416 | Generator pulley cover | 27416-0L050 |
| 27444 | Generator bearing cap seals | 27444-0Y180 · 27444-21190 |
