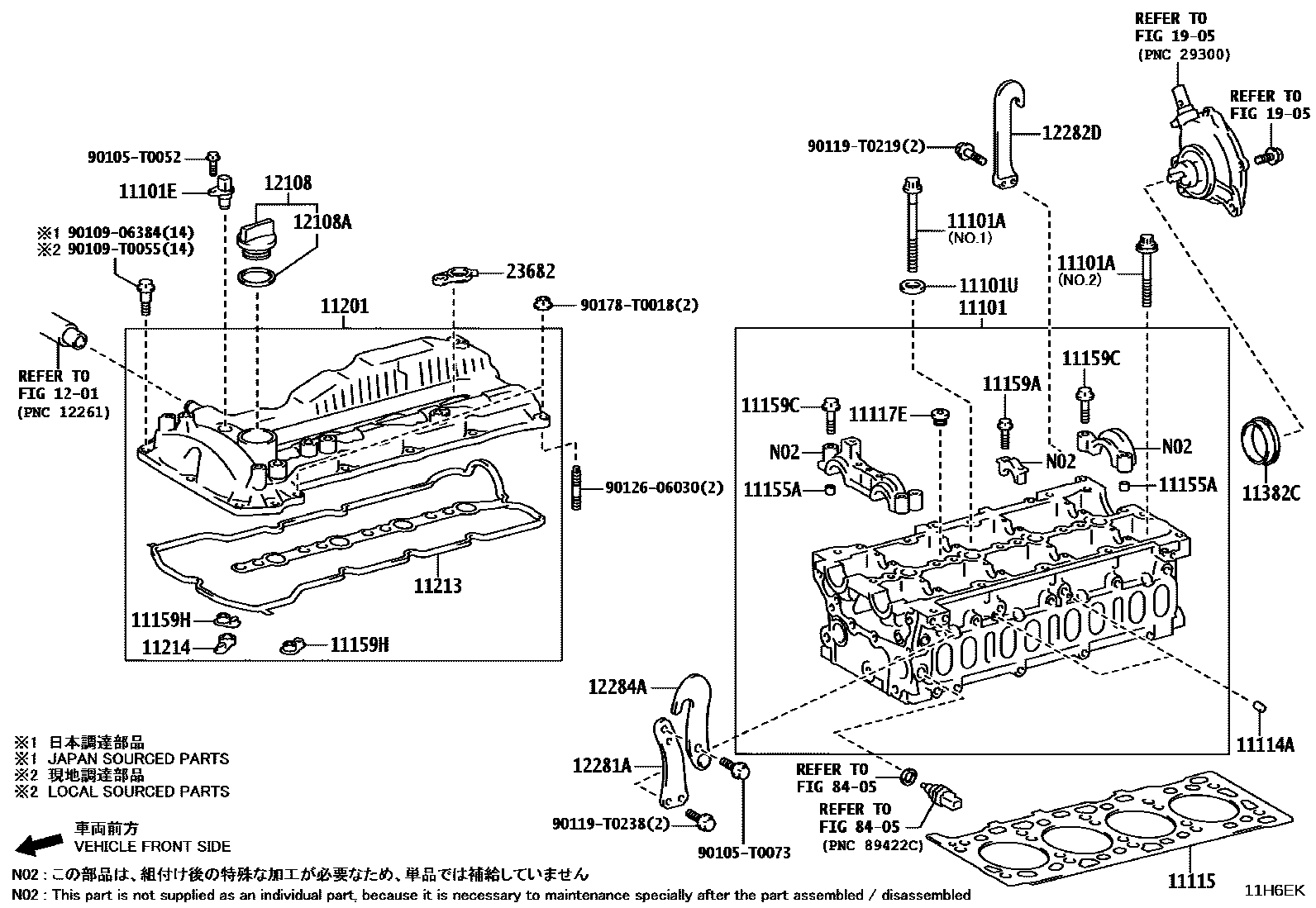

Toyota HILUX Cylinder Head — Figure 1104
Toyota HILUX EPC diagram 1104, Cylinder Head, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-0E011 · 11101-0E021 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-T2010 · 90910-T2011 |
| 11101E | Cam position sensor | 90919-05060 |
| 11101U | SPACER (FOR CYLINDER HEAD SET BOLT) | 90560-T0026 |
| 11114A | direct selling | 90250-T0011 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-T0005 |
| 11155A | PIN, RING W/HEAD | 90253-11021 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90109-06080 · 90119-T0551 |
| 11159C | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-T0130 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-0E010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0E012 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0E010 |
| 11214 | No. 2 cylinder head cover gasket | 11214-0E010 |
| 11382C | ARRETOIR, JOINT HUILE ARBRE A CAMES | 11382-0E010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0H020 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90080-43027 |
| 12281A | Engine No. 1 hanger | 12281-0E010 · 12281-0E020 |
| 12282D | ENGINE HANGER, NO.2 | 12282-0E010 |
| 12284A | ENGINE HANGER, NO.1 UPPER | 12284-0E010 |

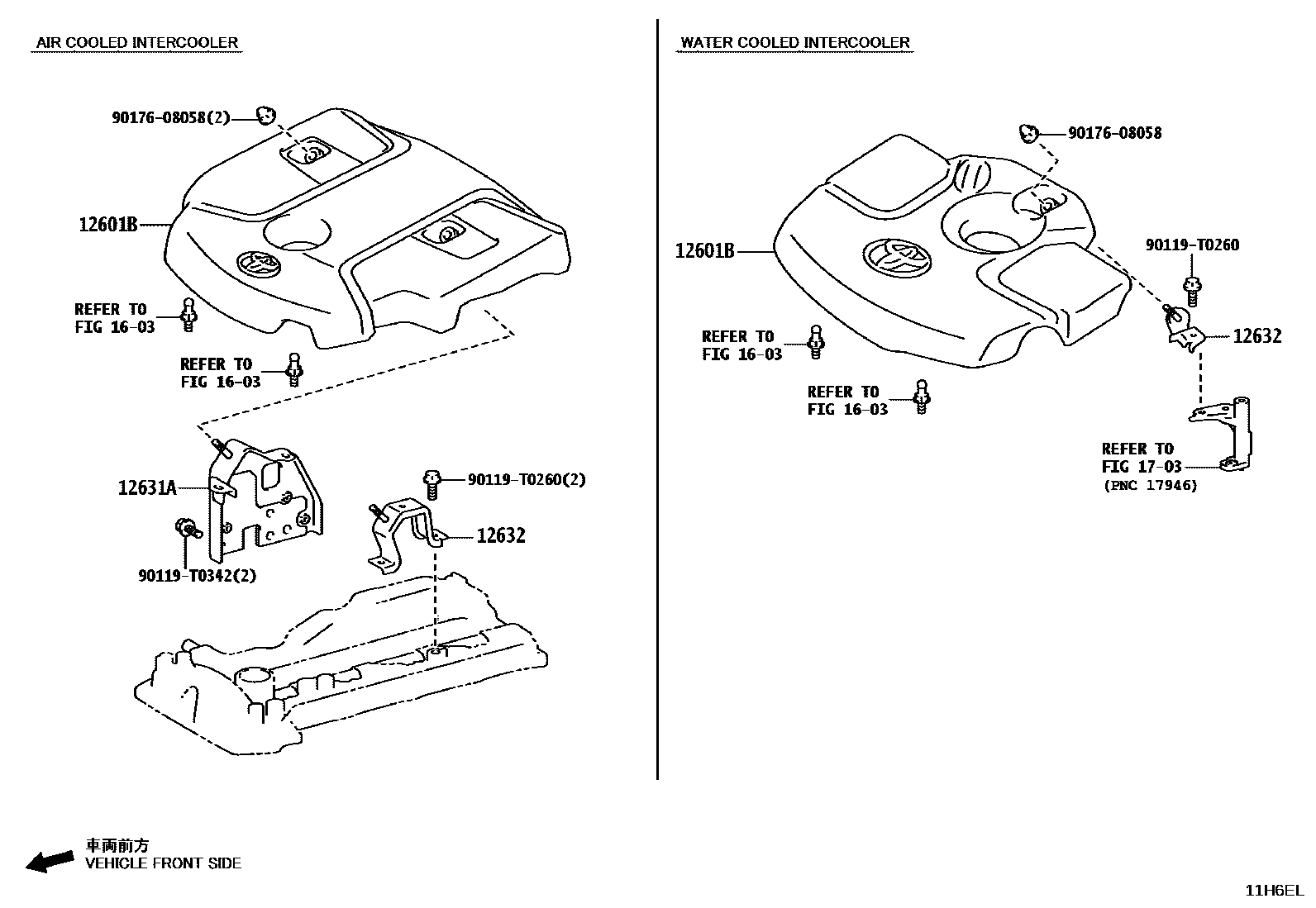

| 12601B | No. 1 engine hood sub-assembly | 12601-0E010 · 12601-0E030 |
| 12631A | hood bracket | 12631-0E010 · 12631-0E020 |
| 12632 | No. 2 engine hood bracket | 12632-0E010 · 12632-0E020 · 12632-0E030 |
| 23682 | Injector body gasket | 23682-0E010 |
