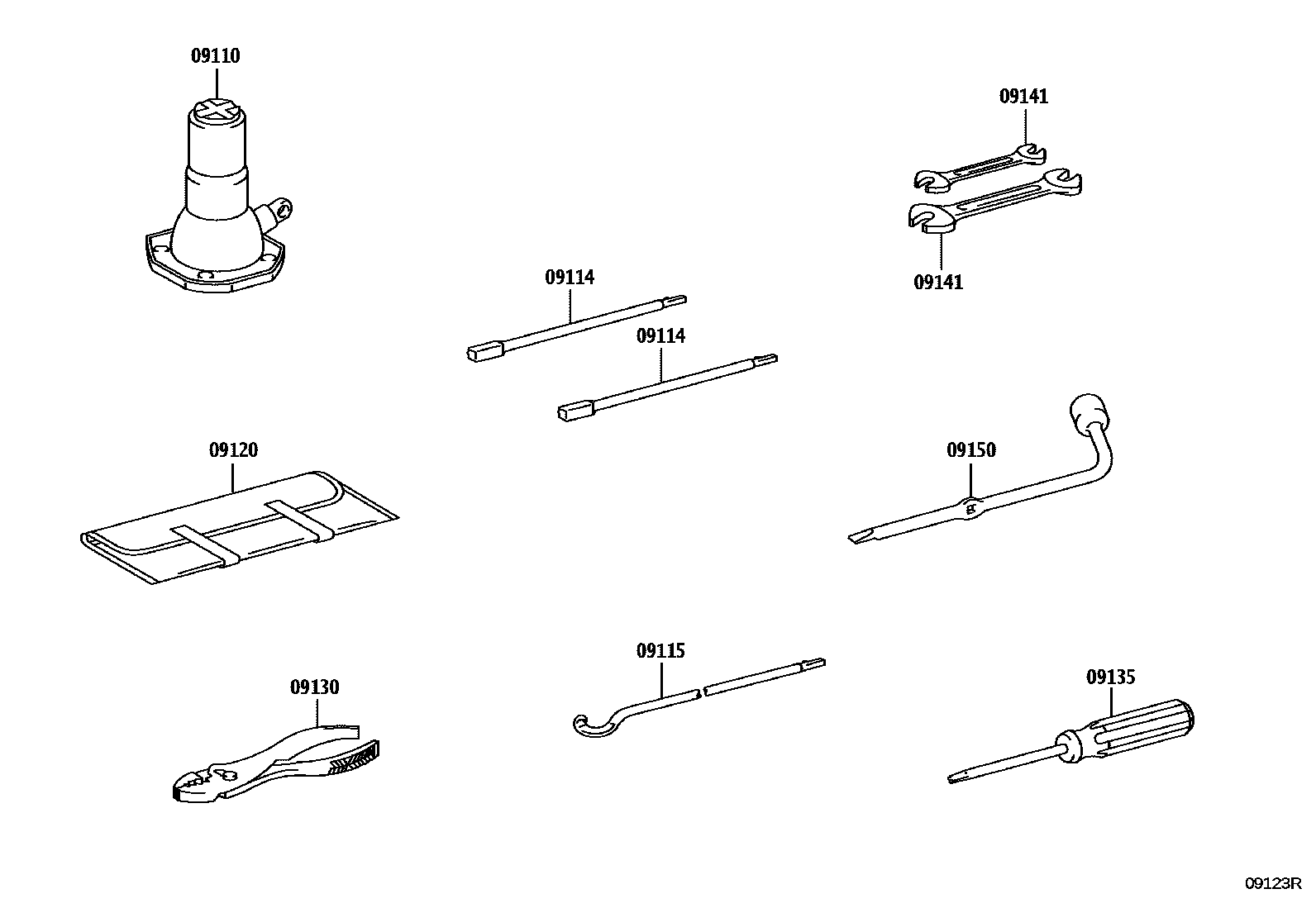

Toyota HILUX Standard Tools — Figure 0901
Toyota HILUX EPC diagram 0901, Standard Tools, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-0K162 · 09111-0K200 |
| 09114 | Jack Handle Extension Sub-Assembly | 09114-0K150 · 09114-0K190 · 09114-0K350 |
| 09115 | Jack Handle Rod Sub-Assembly | 09115-0K170 · 09115-0K190 · 09115-0K330 |
| 09120 | Tool Bag | 09120-0K231 · 09120-0K240 · 09120-0K280 |
| 09130 | Pliers | 90089-99010 |
| 09135 | Screwdriver | 90089-99009 |
| 09141 | Wrench | 09141-0K030 · 09141-0K040 |
| 09150 | Wheel Nut Wrench | 09150-0B050 · 09150-0K010 |
