Toyota HILUX 车载电话和呼救装置 — Figure 8615

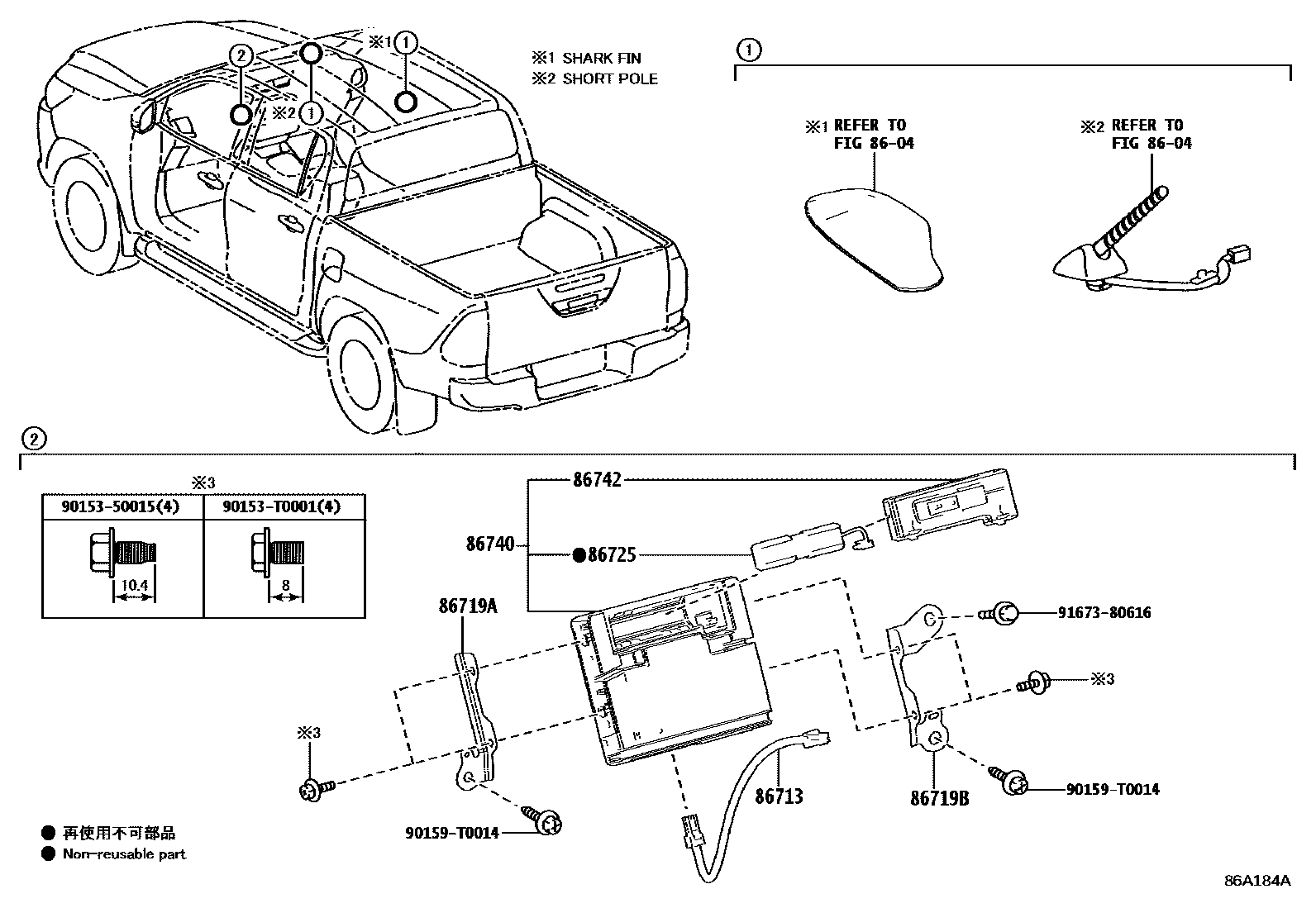

Toyota HILUX EPC diagram 8615, 车载电话和呼救装置, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86713 | Telephone ECU wiring harness | 86713-71020 |
| 86719A | Phone holder No. 1 | 86719-0K100 |
| 86719B | Phone holder No. 2 | 86719-0K120 |
| 86725 | mobile phone battery | 86725-26010 · 86725-48010 · 86725-78010 |
| 86740 | Telephone transceiver assembly | 86740-02210 · 86740-02211 · 86740-0K101 · 86740-0K120 · 86740-0K130 · 86740-0K250 · 86740-71030 |
| 86742 | transceiver cover | 86742-0D020 · 86742-26010 |
